  • Victron Energy

    Victron Orion-TR DC-DC Converter - 24 VDC to 12 VDC - 20AMP Isolated [ORI241224110]

    Victron OrionTR DCDC Converter 24 VDC to 12 VDC 20AMP Isolated ORI241224110
    Victron OrionTR DCDC Converter 24 VDC to 12 VDC 20AMP Isolated ORI241224110
    Save $20.10
    Free Shipping on $199+

    $113.90
    $113.90 $134.00
    Sale: $20.10 off
    In Stock
    More info
    • Input Voltage Range: 16-35 V
    • Under Voltage Shut Down: 14 V
    • Under Voltage Restart: 15 V
    • Nominal Output Voltage: 12.2 V
    • Output Voltage Adjust Range: 10-15 V
    • Output Voltage Tolerance: +/- 0,2 V
    • Output Noise: 2 mV rms
    • Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 20 A
    • Maximum Output Current (10 S) at Nominal Output Voltage: 25 A
    • Short Circuit Output Current: 50 A
    • Cont. Output Power at 25 Degrees C: 300 W
    • Cont. Output Power at 40 Degrees C: 240 W
    • Efficiency: 88 %
    • No Load Input Current (2): < 100 mA
    • Current Consumption: < 200uA when disabled via its remote port
    • Galvanic Isolation: 200 VDC between input, output, and case
    • Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C)
    • Humidity: Max. 95 % non-condensing
    • DC Connection: Screw terminals
    • Maximum Cable Cross-Section: 16 mm² AWG6
    • Weight: 1.3 kg (3 lb)
    • Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
    • Safety Standards: EN 60950
    • Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
    • Automotive Directive Standards: ECE R10-5
    • Charger Input - Voltage: 24v
    • Charger Output - Amps: 20a
    • Charger Output Voltage: 12v
    • Box Dimensions: 4"H x 5"W x 8"L WT: 2.9 lbs
    • UPC: 8719076035251
    Victron Energy

    Victron Orion-TR DC-DC Converter - 24 VDC to 12 VDC - 20AMP Isolated [ORI241224110]

    Code: ORA-82876Brand: Victron Energy
    In Stock

    $113.90
    $113.90 $134.00
    Sale: $20.10 off
    Free Shipping on $199+
    • Input Voltage Range: 16-35 V
    • Under Voltage Shut Down: 14 V
    • Under Voltage Restart: 15 V
    • Nominal Output Voltage: 12.2 V
  • Victron Energy

    Victron Orion-TR DC-DC Converter - 24 VDC to 12 VDC - 30AMP Isolated [ORI241240110]

    Victron OrionTR DCDC Converter 24 VDC to 12 VDC 30AMP Isolated ORI241240110
    Victron OrionTR DCDC Converter 24 VDC to 12 VDC 30AMP Isolated ORI241240110
    Save $35.55
    Free Shipping on $199+

    $201.45
    $201.45 $237.00
    Sale: $35.55 off
    Low Stock — Only 9 Left
    More info
    • Input Voltage Range: 20-35 V
    • Under Voltage Shut Down: 14 V
    • Under Voltage Restart: 15 V
    • Nominal Output Voltage: 12.2 V
    • Output Voltage Adjust Range: 10-15 V
    • Output Voltage Tolerance: +/- 0,2 V
    • Output Noise: 2 mV rms
    • Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A
    • Maximum Output Current (10 S) at Nominal Output Voltage: 45 A
    • Short Circuit Output Current: 60 A
    • Cont. Output Power at 25 Degrees C: 430 W
    • Cont. Output Power at 40 Degrees C: 360 W
    • Efficiency: 88 %
    • No Load Input Current (2): < 100 mA
    • Current Consumption: < 200uA when disabled via its remote port
    • Galvanic Isolation: 200 VDC between input, output, and case
    • Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C)
    • Humidity: Max. 95 % non-condensing
    • DC Connection: Screw terminals
    • Maximum Cable Cross-Section: 16 mm² AWG6
    • Weight: 1.3 kg (3 lb)
    • Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
    • Safety Standards: EN 60950
    • Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
    • Automotive Directive Standards: ECE R10-5
    • Charger Input - Voltage: 24v
    • Charger Output - Amps: 30a
    • Charger Output Voltage: 12v
    • Box Dimensions: 4"H x 5"W x 8"L WT: 4.1 lbs
    • UPC: 8719076038849
    Victron Energy

    Victron Orion-TR DC-DC Converter - 24 VDC to 12 VDC - 30AMP Isolated [ORI241240110]

    Code: ORA-82877Brand: Victron Energy
    Low Stock — Only 9 Left

    $201.45
    $201.45 $237.00
    Sale: $35.55 off
    Free Shipping on $199+
    • Input Voltage Range: 20-35 V
    • Under Voltage Shut Down: 14 V
    • Under Voltage Restart: 15 V
    • Nominal Output Voltage: 12.2 V
  • Victron Energy

    Victron Orion-TR DC-DC Converter - 24 VDC to 24 VDC - 280W - 12AMP Isolated [ORI242428110]

    Victron OrionTR DCDC Converter 24 VDC to 24 VDC 280W 12AMP Isolated ORI242428110Victron OrionTR DCDC Converter 24 VDC to 24 VDC 280W 12AMP Isolated ORI242428110
    Victron OrionTR DCDC Converter 24 VDC to 24 VDC 280W 12AMP Isolated ORI242428110Victron OrionTR DCDC Converter 24 VDC to 24 VDC 280W 12AMP Isolated ORI242428110
    Save $20.10
    Free Shipping on $199+

    $113.90
    $113.90 $134.00
    Sale: $20.10 off
    In Stock
    More info
    • Input Voltage Range: 16-35 V
    • Under Voltage Shut Down: 14 V
    • Under Voltage Restart: 15 V
    • Nominal Output Voltage: 24.2 V
    • Output Voltage Adjust Range: 20-30 V
    • Output Voltage Tolerance: +/- 0,2 V
    • Output Noise: 2 mV rms
    • Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 12 A
    • Maximum Output Current (10 S) at Nominal Output Voltage: 15 A
    • Short Circuit Output Current: 30 A
    • Cont. Output Power at 25 Degrees C: 320 W
    • Cont. Output Power at 40 Degrees C: 280 W
    • Efficiency: 89 %
    • No Load Input Current (2): < 80 mA
    • Galvanic Isolation: 200 VDC between input, output, and case
    • Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C)
    • Humidity: Max. 95 % non-condensing
    • DC Connection: Screw terminals
    • Maximum Cable Cross-Section: 16 mm² AWG6
    • Weight: 1.3 kg (3 lb)
    • Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
    • Safety Standards: EN 60950
    • Immunity Standards: EN 61000-6-3, EN 61000-6-1, EN 55014-2
    • Automotive Directive Standards: ECE R10-5
    Victron Energy

    Victron Orion-TR DC-DC Converter - 24 VDC to 24 VDC - 280W - 12AMP Isolated [ORI242428110]

    Code: ORA-85368Brand: Victron Energy
    In Stock

    $113.90
    $113.90 $134.00
    Sale: $20.10 off
    Free Shipping on $199+
    • Input Voltage Range: 16-35 V
    • Under Voltage Shut Down: 14 V
    • Under Voltage Restart: 15 V
    • Nominal Output Voltage: 24.2 V
  • Victron Energy

    Victron Orion-TR DC-DC Converter - 48 VDC to 12 VDC - 30AMP Isolated [ORI481240110]

    Victron OrionTR DCDC Converter 48 VDC to 12 VDC 30AMP Isolated ORI481240110
    Victron OrionTR DCDC Converter 48 VDC to 12 VDC 30AMP Isolated ORI481240110
    Save $35.55
    Free Shipping on $199+

    $201.45
    $201.45 $237.00
    Sale: $35.55 off
    Low Stock — Only 9 Left
    More info
    • Input Voltage Range: 40-70 V
    • Under Voltage Shut Down: 28 V
    • Under Voltage Restart: 30 V
    • Nominal Output Voltage: 12.2 V
    • Output Voltage Adjust Range: 10-15 V
    • Output Voltage Tolerance: +/- 0,2 V
    • Output Noise: 2 mV rms
    • Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A
    • Maximum Output Current (10 S) at Nominal Output Voltage: 40 A
    • Short Circuit Output Current: 60 A
    • Cont. Output Power at 25 Degrees C: 430 W
    • Cont. Output Power at 40 Degrees C: 360 W
    • Efficiency: 87 %
    • No Load Input Current (2): < 80 mA
    • Galvanic Isolation: 200 VDC between input, output, and case
    • Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C)
    • Humidity: Max. 95 % non-condensing
    • DC Connection: Screw terminals
    • Maximum Cable Cross-Section: 16 mm² AWG6
    • Weight: 1.6 kg (3.5 lb)
    • Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
    • Safety Standards: EN 60950
    • Immunity Standards: EN 61000-6-3, EN 61000-6-1, EN 55014-2
    • Automotive Directive Standards: ECE R10-5
    Victron Energy

    Victron Orion-TR DC-DC Converter - 48 VDC to 12 VDC - 30AMP Isolated [ORI481240110]

    Code: ORA-82878Brand: Victron Energy
    Low Stock — Only 9 Left

    $201.45
    $201.45 $237.00
    Sale: $35.55 off
    Free Shipping on $199+
    • Input Voltage Range: 40-70 V
    • Under Voltage Shut Down: 28 V
    • Under Voltage Restart: 30 V
    • Nominal Output Voltage: 12.2 V
  • Victron Energy

    Victron Orion-TR Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMP [ORI242441110]

    Victron OrionTR Isolated DCDC Converter 24 VDC to 24 VDC 400W 17AMP ORI242441110Victron OrionTR Isolated DCDC Converter 24 VDC to 24 VDC 400W 17AMP ORI242441110
    Victron OrionTR Isolated DCDC Converter 24 VDC to 24 VDC 400W 17AMP ORI242441110Victron OrionTR Isolated DCDC Converter 24 VDC to 24 VDC 400W 17AMP ORI242441110
    Save $35.55
    Free Shipping on $199+

    $201.45
    $201.45 $237.00
    Sale: $35.55 off
    Low Stock — Only 7 Left
    More info
    • Input Voltage Range: 20-35 V
    • Under Voltage Shut Down: 14 V
    • Under Voltage Restart: 15 V
    • Nominal Output Voltage: 24.2 V
    • Output Voltage Adjust Range: 20-30 V
    • Output Voltage Tolerance: +/- 0,2 V
    • Output Noise: 2 mV rms
    • Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 17 A
    • Maximum Output Current (10 S) at Nominal Output Voltage: 25 A
    • Short Circuit Output Current: 40 A
    • Cont. Output Power at 25 Degrees C: 480 W
    • Cont. Output Power at 40 Degrees C: 400 W
    • Efficiency: 89 %
    • No Load Input Current (2): < 80 mA
    • Galvanic Isolation: 200 VDC between input, output, and case
    • Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C)
    • Humidity: Max. 95 % non-condensing
    • DC Connection: Screw terminals
    • Maximum Cable Cross-Section: 16 mm² AWG6
    • Weight: 1.6 kg (3.5 lb)
    • Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
    • Safety Standards: EN 60950
    • Emission Standards: EN 61000-6-3, EN 55014-1
    • Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
    • Automotive Directive Standards: ECE R10-5
    • Charger Input - Voltage: 24v
    • Charger Output - Amps: 17a
    • Charger Output Voltage: 24v
    • Box Dimensions: 3"H x 5"W x 9"L WT: 2.9 lbs
    • UPC: 8719076038856
    Victron Energy

    Victron Orion-TR Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMP [ORI242441110]

    Code: ORA-92890Brand: Victron Energy
    Low Stock — Only 7 Left

    $201.45
    $201.45 $237.00
    Sale: $35.55 off
    Free Shipping on $199+
    • Input Voltage Range: 20-35 V
    • Under Voltage Shut Down: 14 V
    • Under Voltage Restart: 15 V
    • Nominal Output Voltage: 24.2 V
  • Victron Energy

    Victron Orion-TR Smart 12/12-18 18A (220W) Isolated DC-DC Charger or Power Supply [ORI121222120]

    Victron OrionTR Smart 121218A 18A 220W Isolated DCDC Charger or Power Supply ORI121222120
    Victron OrionTR Smart 121218A 18A 220W Isolated DCDC Charger or Power Supply ORI121222120
    Save $28.20
    Free Shipping on $199+

    $159.80
    $159.80 $188.00
    Sale: $28.20 off
    Low Stock — Only 10 Left
    More info
    • Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available
    • Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product
    • Battery charge algorithm (configurable) or fixed output.
    • Smart Alternator Compatibility: engine running detection mechanism
    • For lithium batteries, the absorption time is fixed; the default is 2 hours
    • Alternatively, a fixed output voltage can be chosen
    • Input Voltage Range: 8-17 V
    • Under Voltage Shut Down: 7 V
    • Under Voltage Restart: 7.5 V
    • Nominal Output Voltage: 12.2 V
    • Output Voltage Adjust Range: 10-15 V
    • Output Voltage Tolerance: +/- 0,2 V
    • Output Noise: 2 mV rms
    • Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 18 A
    • Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 25 A
    • Short Circuit Output Current: 40 A
    • Cont. Output Power at 25 Degrees C: 280 W
    • Cont. Output Power at 40 Degrees C: 220 W
    • Efficiency: 87 %
    • No Load Input Current (2): < 80 mA
    • Standby Current: Less than 1A
    • Can Be Used as Power Supply: Yes, output voltage can be set with Bluetooth
    • Galvanic Isolation: 200 VDC between input, output, and case
    • Operating Temperature Range -20 to +55 °C (derate 3 % per °C above 40 °C)
    • Humidity: Max. 95 % non-condensing
    • DC Connection: Screw terminals
    • Maximum Cable Cross-Section: 16 mm²  AWG6
    • Weight: 1,8 kg (3 lb)
    • Dimensions (H x W x D):130 x 186 x 70 mm  (5.1 x 7.3 x 2.8 inch)
    • Protection Category IP43 (electronic components), IP22 (connection area)
    • Safety Standards: EN 60950
    • Emission/Immunity Standards: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2
    • Automotive Directive Standards: ECE R10-5
    • Portable: No
    • Charging Banks: 1
    • Charger Output Voltage: 12v
    • Charger Output - Amps: 18a
    • Charger Input - Voltage: 12v
    • Box Dimensions: 4"H x 5"W x 8"L WT: 2.95 lbs
    • UPC: 8719076046066
    Victron Energy

    Victron Orion-TR Smart 12/12-18 18A (220W) Isolated DC-DC Charger or Power Supply [ORI121222120]

    Code: ORA-84224Brand: Victron Energy
    Low Stock — Only 10 Left

    $159.80
    $159.80 $188.00
    Sale: $28.20 off
    Free Shipping on $199+
    • Battery charge algorithm (configurable) or fixed output.
    • Smart Alternator Compatibility: engine running detection mechanism
    • For lithium batteries, the absorption time is fixed; the default is 2 hours
    • Alternatively, a fixed output voltage can be chosen
  • Victron Energy

    Victron Orion-TR Smart 12/12-30 30A (360W) Isolated DC-DC or Power Supply [ORI121236120]

    Victron OrionTR Smart 121230 30A 360W Isolated DCDC Charger or Power Supply ORI121236120
    Victron OrionTR Smart 121230 30A 360W Isolated DCDC Charger or Power Supply ORI121236120
    Save $43.05
    Free Shipping on $199+

    $243.95
    $243.95 $287.00
    Sale: $43.05 off
    Low Stock — Only 9 Left
    More info
    • Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available
    • Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product
    • Battery charge algorithm (configurable) or fixed output.
    • Smart Alternator Compatibility: engine running detection mechanism
    • For lithium batteries, the absorption time is fixed; the default is 2 hours
    • Alternatively, a fixed output voltage can be chosen
    • Input Voltage Range: 10-17 V
    • Under Voltage Shut Down: 7 V
    • Under Voltage Restart: 7.5 V
    • Nominal Output Voltage: 12.2 V
    • Output Voltage Adjust Range: 10-15 V
    • Output Voltage Tolerance: +/- 0,2 V
    • Output Noise: 2 mV rms
    • Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A
    • Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 40 A
    • Short Circuit Output Current: 60 A
    • Cont. Output Power at 25 Degrees C: 430 W
    • Cont. Output Power at 40 Degrees C: 360 W
    • Efficiency: 87 %
    • No Load Input Current (2): < 80 mA
    • Standby Current: Less than 1A
    • Can Be Used as Power Supply: Yes, output voltage can be set with Bluetooth
    • Galvanic Isolation: 200 VDC between input, output, and case
    • Operating Temperature Range -20 to +55 °C (derate 3 % per °C above 40 °C)
    • Humidity: Max. 95 % non-condensing
    • DC Connection: Screw terminals
    • Maximum Cable Cross-Section: 16 mm²  AWG6
    • Weight: 1,8 kg (3 lb)
    • Dimensions (H x W x D):130 x 186 x 70 mm  (5.1 x 7.3 x 2.8 inch)
    • Protection Category IP43 (electronic components), IP22 (connection area)
    • Safety Standards: EN 60950
    • Emission/Immunity Standards: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2
    • Automotive Directive Standards: ECE R10-5
    • Charger Output - Amps: 30a
    • Charger Input - Voltage: 12v
    • Portable: No
    • Charging Banks: 1
    • Charger Output Voltage: 12v
    • Box Dimensions: 4"H x 6"W x 9"L WT: 4.45 lbs
    • UPC: 8719076047698
    Victron Energy

    Victron Orion-TR Smart 12/12-30 30A (360W) Isolated DC-DC or Power Supply [ORI121236120]

    Code: ORA-84223Brand: Victron Energy
    Low Stock — Only 9 Left

    $243.95
    $243.95 $287.00
    Sale: $43.05 off
    Free Shipping on $199+
    • Battery charge algorithm (configurable) or fixed output.
    • Smart Alternator Compatibility: engine running detection mechanism
    • For lithium batteries, the absorption time is fixed; the default is 2 hours
    • Alternatively, a fixed output voltage can be chosen
  • Victron Energy

    Victron Orion-Tr Smart 12/24 10 AMP (240W) Isolated DC-DC Charger or Power Supply [ORI122424120]

    Victron OrionTr Smart 1224 10 AMP 240W Isolated DCDC Charger or Power Supply ORI122424120Victron OrionTr Smart 1224 10 AMP 240W Isolated DCDC Charger or Power Supply ORI122424120
    Victron OrionTr Smart 1224 10 AMP 240W Isolated DCDC Charger or Power Supply ORI122424120Victron OrionTr Smart 1224 10 AMP 240W Isolated DCDC Charger or Power Supply ORI122424120
    Save $28.20
    Free Shipping on $199+

    $159.80
    $159.80 $188.00
    Sale: $28.20 off
    In Stock
    More info
    • Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available
    • Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product
    • Battery charge algorithm (configurable) or fixed output.
    • Smart Alternator Compatibility: engine running detection mechanism
    • For lithium batteries, the absorption time is fixed; the default is 2 hours
    • Alternatively, a fixed output voltage can be chosen
    • Input Voltage Range: 8-17 V
    • Under Voltage Shut Down: 7 V
    • Under Voltage Restart: 7.5 V
    • Nominal Output Voltage: 24.2 V
    • Output Voltage Adjust Range: 20-30 V
    • Output Voltage Tolerance: +/- 0,2 V
    • Output Noise: 2 mV rms
    • Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 10 A
    • Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 15 A
    • Short Circuit Output Current: 25 A
    • Cont. Output Power at 25 Degrees C: 280 W
    • Cont. Output Power at 40 Degrees C: 240 W
    • Efficiency: 88 %
    • No Load Input Current (2): < 100 mA
    • Standby Current: Less than 1A
    • Can Be Used as Power Supply: Yes, output voltage can be set with Bluetooth
    • Galvanic Isolation: 200 VDC between input, output, and case
    • Operating Temperature Range -20 to +55 °C (derate 3 % per °C above 40 °C)
    • Humidity: Max. 95 % non-condensing
    • DC Connection: Screw terminals
    • Maximum Cable Cross-Section: 16 mm²  AWG6
    • Weight: 1,8 kg (3 lb)
    • Dimensions (H x W x D):130 x 186 x 70 mm  (5.1 x 7.3 x 2.8 inch)
    • Protection Category IP43 (electronic components), IP22 (connection area)
    • Safety Standards: EN 60950
    • Emission/Immunity Standards: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2
    • Automotive Directive Standards: ECE R10-5
    Victron Energy

    Victron Orion-Tr Smart 12/24 10 AMP (240W) Isolated DC-DC Charger or Power Supply [ORI122424120]

    Code: ORA-92732Brand: Victron Energy
    In Stock

    $159.80
    $159.80 $188.00
    Sale: $28.20 off
    Free Shipping on $199+
    • Battery charge algorithm (configurable) or fixed output.
    • Smart Alternator Compatibility: engine running detection mechanism
    • For lithium batteries, the absorption time is fixed; the default is 2 hours
    • Alternatively, a fixed output voltage can be chosen
  • Victron Energy

    Victron Orion-TR Smart 12/24-15 15A (360W) Non-Isolated DC-DC or Power Supply [ORI122436140]

    Victron OrionTR Smart 122415 15A 360W NonIsolated DCDC or Power Supply ORI122436140
    Victron OrionTR Smart 122415 15A 360W NonIsolated DCDC or Power Supply ORI122436140
    Save $37.95
    Free Shipping on $199+

    $215.05
    $215.05 $253.00
    Sale: $37.95 off
    Low Stock — Only 10 Left
    More info
    • Charger Input - Voltage: 12v
    • Charger Output - Amps: 15a
    • Charger Output Voltage: 24v
    • Charging Banks: 1
    • Portable: No
    • Box Dimensions: 4"H x 5"W x 8"L WT: 4.3 lbs
    • UPC: 8719076048961
    Victron Energy

    Victron Orion-TR Smart 12/24-15 15A (360W) Non-Isolated DC-DC or Power Supply [ORI122436140]

    Code: ORA-84229Brand: Victron Energy
    Low Stock — Only 10 Left

    $215.05
    $215.05 $253.00
    Sale: $37.95 off
    Free Shipping on $199+
    • Charger Input - Voltage: 12v
    • Charger Output - Amps: 15a
    • Charger Output Voltage: 24v
    • Charging Banks: 1
  • Victron Energy

    Victron Orion-Tr Smart 12/48-8A (380W) Isolated DC-DC Charger [ORI124838120]

    Victron OrionTr Smart 12488A 380W Isolated DCDC Charger ORI124838120
    Victron OrionTr Smart 12488A 380W Isolated DCDC Charger ORI124838120
    Save $43.05
    Free Shipping on $199+

    $243.95
    $243.95 $287.00
    Sale: $43.05 off
    In Stock
    More info
    • Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available.
    • Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product.
    • Battery charge algorithm (configurable) or fixed output.
    • Smart alternator compatibility: engine running detection mechanism.
    • For lithium batteries absorption time is fixed, default 2 hours.
    • Alternatively, a fixed output voltage can be chosen.
    • The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery.
    • An unlimited number of units can be connected in parallel.
    • The output current will reduce at high ambient temperatures.
    • When installed with the screw terminals oriented downward.
    • No special tools are needed for installation.
    Victron Energy

    Victron Orion-Tr Smart 12/48-8A (380W) Isolated DC-DC Charger [ORI124838120]

    Code: ORA-107351Brand: Victron Energy
    In Stock

    $243.95
    $243.95 $287.00
    Sale: $43.05 off
    Free Shipping on $199+
    • Battery charge algorithm (configurable) or fixed output.
    • Smart alternator compatibility: engine running detection mechanism.
    • For lithium batteries absorption time is fixed, default 2 hours.
    • Alternatively, a fixed output voltage can be chosen.
  • Victron Energy

    Victron Orion-Tr Smart 24/12-20A (240W) Isolated DC-DC Charger [ORI241224120]

    Victron OrionTr Smart 241220A 240W Isolated DCDC Charger ORI241224120Victron OrionTr Smart 241220A 240W Isolated DCDC Charger ORI241224120
    Victron OrionTr Smart 241220A 240W Isolated DCDC Charger ORI241224120Victron OrionTr Smart 241220A 240W Isolated DCDC Charger ORI241224120
    Save $28.20
    Free Shipping on $199+

    $159.80
    $159.80 $188.00
    Sale: $28.20 off
    Low Stock — Only 7 Left
    More info
    • Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available
    • Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product
    • Battery charge algorithm (configurable) or fixed output. Orion-Tr Smart 12/12-30 Orion-Tr Smart 12/12-30
    • Smart Alternator Compatibility: engine running detection mechanism
    • For lithium batteries, the absorption time is fixed; the default is 2 hours
    • Alternatively, a fixed output voltage can be chosen
    • Input Voltage Range: 16-35 V
    • Under Voltage Shut Down: 14 V
    • Under Voltage Restart: 15 V
    • Nominal Output Voltage: 12.2 V
    • Output Voltage Adjust Range: 10-15 V
    • Output Voltage Tolerance: +/- 0,2 V
    • Output Noise: 2 mV rms
    • Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 20 A
    • Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 25 A
    • Short Circuit Output Current: 50 A
    • Cont. Output Power at 25 Degrees C: 300 W
    • Cont. Output Power at 40 Degrees C: 240 W
    • Efficiency: 88 %
    • No Load Input Current (2): < 100 mA
    • Standby Current: Less than 1A
    • Can Be Used as Power Supply: Yes, output voltage can be set with Bluetooth
    • Galvanic Isolation: 200 VDC between input, output, and case
    • Operating Temperature Range -20 to +55 °C (derate 3 % per °C above 40 °C)
    • Humidity: Max. 95 % non-condensing
    • DC Connection: Screw terminals
    • Maximum Cable Cross-Section: 16 mm²  AWG6
    • Weight: 1,3 kg (3 lb)
    • Dimensions (H x W x D):130 x 186 x 70 mm  (5.1 x 7.3 x 2.8 inch)
    • Protection Category IP43 (electronic components), IP22 (connection area)
    • Standards: Safety - Emission / Immunity; Automotive Directive - EN 60950 EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2 ECE R10-5
    • Charger Input - Voltage: 24v
    • Charger Output - Amps: 20a
    • Charger Output Voltage: 12v
    • Charging Banks: 1
    • Portable: No
    • Box Dimensions: 4"H x 5"W x 8"L WT: 3 lbs
    • UPC: 8719076046080
    Victron Energy

    Victron Orion-Tr Smart 24/12-20A (240W) Isolated DC-DC Charger [ORI241224120]

    Code: ORA-103510Brand: Victron Energy
    Low Stock — Only 7 Left

    $159.80
    $159.80 $188.00
    Sale: $28.20 off
    Free Shipping on $199+
    • Battery charge algorithm (configurable) or fixed output. Orion-Tr Smart 12/12-30 Orion-Tr Smart 12/12-30
    • Smart Alternator Compatibility: engine running detection mechanism
    • For lithium batteries, the absorption time is fixed; the default is 2 hours
    • Alternatively, a fixed output voltage can be chosen
  • Victron Energy

    Victron Orion-TR Smart 24/12-30 30A (360W) Non-Isolated DC-DC or Power Supply [ORI241236140]

    Victron OrionTR Smart 241230 30A 360W NonIsolated DCDC Charger or Power Supply ORI241236140
    Victron OrionTR Smart 241230 30A 360W NonIsolated DCDC Charger or Power Supply ORI241236140
    Save $37.95
    Free Shipping on $199+

    $215.05
    $215.05 $253.00
    Sale: $37.95 off
    Low Stock — Only 6 Left
    More info
    • Charger Input - Voltage: 24v
    • Charger Output - Amps: 30a
    • Charger Output Voltage: 12v
    • Box Dimensions: 4"H x 5"W x 8"L WT: 4.25 lbs
    • UPC: 8719076048978
    Victron Energy

    Victron Orion-TR Smart 24/12-30 30A (360W) Non-Isolated DC-DC or Power Supply [ORI241236140]

    Code: ORA-84228Brand: Victron Energy
    Low Stock — Only 6 Left

    $215.05
    $215.05 $253.00
    Sale: $37.95 off
    Free Shipping on $199+
    • Charger Input - Voltage: 24v
    • Charger Output - Amps: 30a
    • Charger Output Voltage: 12v
    • Box Dimensions: 4"H x 5"W x 8"L WT: 4.25 lbs
  • Victron Energy

    Victron Orion-TR Smart 24/48 8.5A (400W) Isolated DC-DC Charger [ORI244840120]

    Victron OrionTR Smart 2448 85A 400W Isolated DCDC Charger ORI244840120
    Victron OrionTR Smart 2448 85A 400W Isolated DCDC Charger ORI244840120
    Save $43.05
    Free Shipping on $199+

    $243.95
    $243.95 $287.00
    Sale: $43.05 off
    Low Stock — Only 10 Left
    More info
    Orion-TR Smart 24/48 8.5A (400W) Isolated DC-DC ChargerThe Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.This is for use in dual battery systems in vehicles or on boats, the alternator and the start battery are used to charge the service battery. The...
    Victron Energy

    Victron Orion-TR Smart 24/48 8.5A (400W) Isolated DC-DC Charger [ORI244840120]

    Code: ORA-107887Brand: Victron Energy
    Low Stock — Only 10 Left

    $243.95
    $243.95 $287.00
    Sale: $43.05 off
    Free Shipping on $199+

    Orion-TR Smart 24/48 8.5A (400W) Isolated DC-DC ChargerThe Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage...
  • Victron Energy

    Victron Orion-Tr Smart 48/12-30A (360W) Isolated DC-DC Charger [ORI481238120]

    Victron OrionTr Smart 481230A 360W Isolated DCDC Charger ORI481238120Victron OrionTr Smart 481230A 360W Isolated DCDC Charger ORI481238120
    Victron OrionTr Smart 481230A 360W Isolated DCDC Charger ORI481238120Victron OrionTr Smart 481230A 360W Isolated DCDC Charger ORI481238120
    Save $43.05
    Free Shipping on $199+

    $243.95
    $243.95 $287.00
    Sale: $43.05 off
    In Stock
    More info
    • Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available.
    • Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product.
    • Battery charge algorithm (configurable) or fixed output.
    • Smart alternator compatibility: engine running detection mechanism.
    • For lithium batteries absorption time is fixed, default 2 hours.
    • Alternatively, a fixed output voltage can be chosen.
    • The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery.
    • An unlimited number of units can be connected in parallel.
    • The output current will reduce at high ambient temperatures.
    • When installed with the screw terminals oriented downward.
    • No special tools are needed for installation.
    Victron Energy

    Victron Orion-Tr Smart 48/12-30A (360W) Isolated DC-DC Charger [ORI481238120]

    Code: ORA-107352Brand: Victron Energy
    In Stock

    $243.95
    $243.95 $287.00
    Sale: $43.05 off
    Free Shipping on $199+
    • Battery charge algorithm (configurable) or fixed output.
    • Smart alternator compatibility: engine running detection mechanism.
    • For lithium batteries absorption time is fixed, default 2 hours.
    • Alternatively, a fixed output voltage can be chosen.
  • Victron Energy

    Victron Orion-Tr Smart 48/24-16A (380W) Isolated DC-DC Charger [ORI482438120]

    Victron OrionTr Smart 482416A 380W Isolated DCDC Charger ORI482438120Victron OrionTr Smart 482416A 380W Isolated DCDC Charger ORI482438120
    Victron OrionTr Smart 482416A 380W Isolated DCDC Charger ORI482438120Victron OrionTr Smart 482416A 380W Isolated DCDC Charger ORI482438120
    Save $43.05
    Free Shipping on $199+

    $243.95
    $243.95 $287.00
    Sale: $43.05 off
    Low Stock — Only 3 Left
    More info
    • Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available.
    • Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product.
    • Battery charge algorithm (configurable) or fixed output.
    • Smart alternator compatibility: engine running detection mechanism.
    • For lithium batteries absorption time is fixed, default 2 hours.
    • Alternatively, a fixed output voltage can be chosen.
    • The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery.
    • An unlimited number of units can be connected in parallel.
    • The output current will reduce at high ambient temperatures.
    • When installed with the screw terminals oriented downward.
    • No special tools are needed for installation.
    Victron Energy

    Victron Orion-Tr Smart 48/24-16A (380W) Isolated DC-DC Charger [ORI482438120]

    Code: ORA-107353Brand: Victron Energy
    Low Stock — Only 3 Left

    $243.95
    $243.95 $287.00
    Sale: $43.05 off
    Free Shipping on $199+
    • Battery charge algorithm (configurable) or fixed output.
    • Smart alternator compatibility: engine running detection mechanism.
    • For lithium batteries absorption time is fixed, default 2 hours.
    • Alternatively, a fixed output voltage can be chosen.
  • Victron Energy

    Victron Orion-Tr Smart 48/48-8A (380W) Isolated DC-DC Charger [ORI484838120]

    Victron OrionTr Smart 48488A 380W Isolated DCDC Charger ORI484838120Victron OrionTr Smart 48488A 380W Isolated DCDC Charger ORI484838120
    Victron OrionTr Smart 48488A 380W Isolated DCDC Charger ORI484838120Victron OrionTr Smart 48488A 380W Isolated DCDC Charger ORI484838120
    Save $43.05
    Free Shipping on $199+

    $243.95
    $243.95 $287.00
    Sale: $43.05 off
    Low Stock — Only 5 Left
    More info
    • Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available.
    • Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product.
    • Battery charge algorithm (configurable) or fixed output.
    • Smart alternator compatibility: engine running detection mechanism.
    • For lithium batteries absorption time is fixed, default 2 hours.
    • Alternatively, a fixed output voltage can be chosen.
    • The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery.
    • An unlimited number of units can be connected in parallel.
    • The output current will reduce at high ambient temperatures.
    • When installed with the screw terminals oriented downward.
    • No special tools are needed for installation.
    Victron Energy

    Victron Orion-Tr Smart 48/48-8A (380W) Isolated DC-DC Charger [ORI484838120]

    Code: ORA-107355Brand: Victron Energy
    Low Stock — Only 5 Left

    $243.95
    $243.95 $287.00
    Sale: $43.05 off
    Free Shipping on $199+
    • Battery charge algorithm (configurable) or fixed output.
    • Smart alternator compatibility: engine running detection mechanism.
    • For lithium batteries absorption time is fixed, default 2 hours.
    • Alternatively, a fixed output voltage can be chosen.
  • Victron Energy

    Victron Orion-TR Smart DC-DC 12/24-15 15A (360W) Isolated Charger or Power Supply [ORI122436120]

    Victron OrionTR Smart DCDC 122415 15A 360W Isolated Charger or Power Supply ORI122436120
    Victron OrionTR Smart DCDC 122415 15A 360W Isolated Charger or Power Supply ORI122436120
    Save $43.05
    Free Shipping on $199+

    $243.95
    $243.95 $287.00
    Sale: $43.05 off
    In Stock
    More info
    • Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available
    • Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product
    • Battery charge algorithm (configurable) or fixed output.
    • Smart Alternator Compatibility: engine running detection mechanism
    • For lithium batteries, the absorption time is fixed; the default is 2 hours
    • Alternatively, a fixed output voltage can be chosen
    • Input Voltage Range: 10-17 V
    • Under Voltage Shut Down: 7 V
    • Under Voltage Restart: 7.5 V
    • Nominal Output Voltage: 24.2 V
    • Output Voltage Adjust Range: 20-36 V
    • Output Voltage Tolerance: +/- 0,2 V
    • Output Noise: 2 mV rms
    • Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 15 A
    • Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 25 A
    • Short Circuit Output Current: 40 A
    • Cont. Output Power at 25 Degrees C: 430 W
    • Cont. Output Power at 40 Degrees C: 360 W
    • Efficiency: 88 %
    • No Load Input Current (2): < 100 mA
    • Standby Current: Less than 1A
    • Can Be Used as Power Supply: Yes, output voltage can be set with Bluetooth
    • Galvanic Isolation: 200 VDC between input, output, and case
    • Operating Temperature Range -20 to +55 °C (derate 3 % per °C above 40 °C)
    • Humidity: Max. 95 % non-condensing
    • DC Connection: Screw terminals
    • Maximum Cable Cross-Section: 16 mm²  AWG6
    • Weight: 1,8 kg (3 lb)
    • Dimensions (H x W x D):130 x 186 x 70 mm  (5.1 x 7.3 x 2.8 inch)
    • Protection Category IP43 (electronic components), IP22 (connection area)
    • Safety Standards: EN 60950
    • Emission/Immunity Standards: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2
    • Automotive Directive Standards: ECE R10-5
    • Portable: No
    • Charging Banks: 1
    • Charger Output Voltage: 24v
    • Charger Output - Amps: 15a
    • Charger Input - Voltage: 12v
    • Box Dimensions: 4"H x 5"W x 8"L WT: 4.4 lbs
    • UPC: 8719076047704
    Victron Energy

    Victron Orion-TR Smart DC-DC 12/24-15 15A (360W) Isolated Charger or Power Supply [ORI122436120]

    Code: ORA-84227Brand: Victron Energy
    In Stock

    $243.95
    $243.95 $287.00
    Sale: $43.05 off
    Free Shipping on $199+
    • Battery charge algorithm (configurable) or fixed output.
    • Smart Alternator Compatibility: engine running detection mechanism
    • For lithium batteries, the absorption time is fixed; the default is 2 hours
    • Alternatively, a fixed output voltage can be chosen
  • Victron Energy

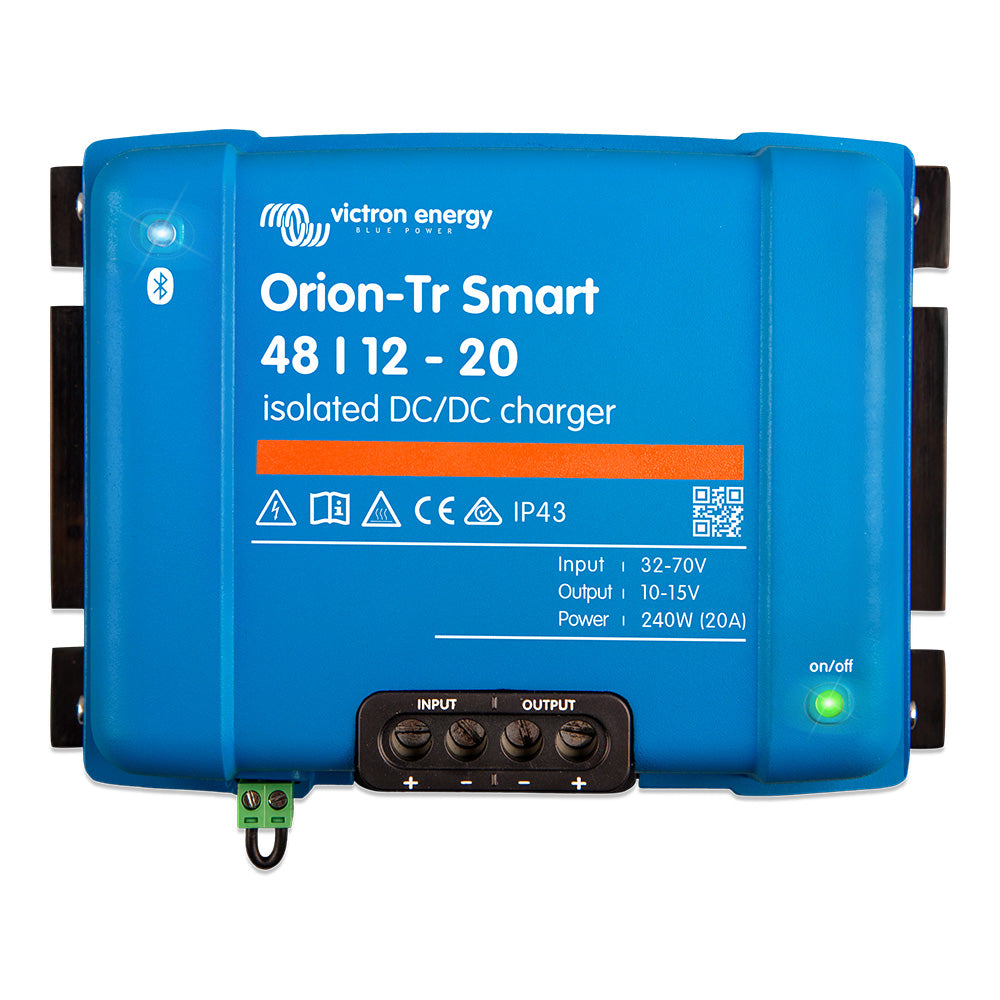

    Victron Orion-Tr Smart DC-DC Charger Isolated 48/12 20A (240W) [ORI481224120]

    Victron OrionTr Smart DCDC Charger Isolated 4812 20A 240W ORI481224120
    Victron OrionTr Smart DCDC Charger Isolated 4812 20A 240W ORI481224120
    Save $28.20
    Free Shipping on $199+

    $159.80
    $159.80 $188.00
    Sale: $28.20 off
    Low Stock — Only 6 Left
    More info
    • All models are short-circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.
    • High temperature protected - The output current will reduce at high ambient temperature.
    • IP43 protection - When installed with the screw terminals oriented downwards.
    • Screw terminals - No special tools are needed for installation.
    • Input fuse (not replaceable) - On 12 V and 24 V input models only.
    • Adjustable output voltage - Not intended for battery charging. Please consider using an Orion-Tr Smart for battery charging.
    • Charger Input - Voltage: 48v
    • Charger Output - Amps: 20a
    • Charger Output Voltage: 12v
    • Box Dimensions: 4"H x 6"W x 8"L WT: 2.8 lbs
    • UPC: 8719076066149
    Victron Energy

    Victron Orion-Tr Smart DC-DC Charger Isolated 48/12 20A (240W) [ORI481224120]

    Code: ORA-109720Brand: Victron Energy
    Low Stock — Only 6 Left

    $159.80
    $159.80 $188.00
    Sale: $28.20 off
    Free Shipping on $199+
    • All models are short-circuit proof and can be paralleled to increase output current. An unlimited number...
    • High temperature protected - The output current will reduce at high ambient temperature.
    • IP43 protection - When installed with the screw terminals oriented downwards.
    • Screw terminals - No special tools are needed for installation.
  • Victron Energy

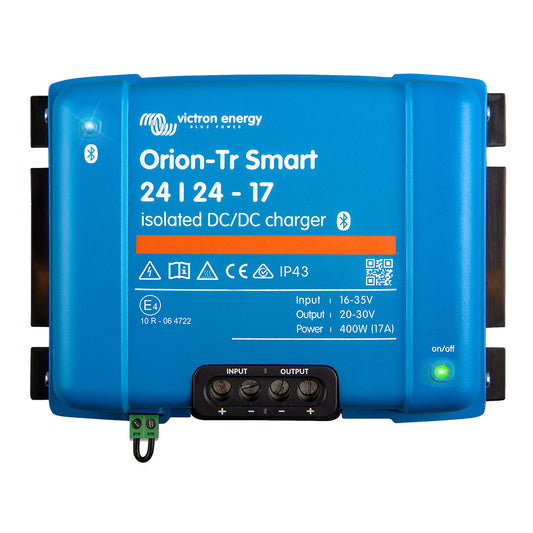

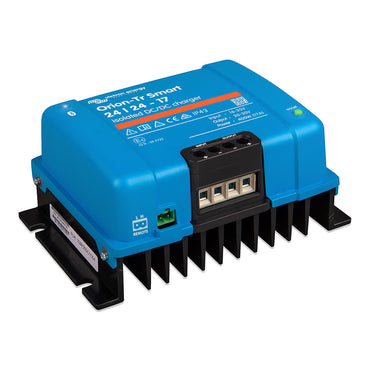

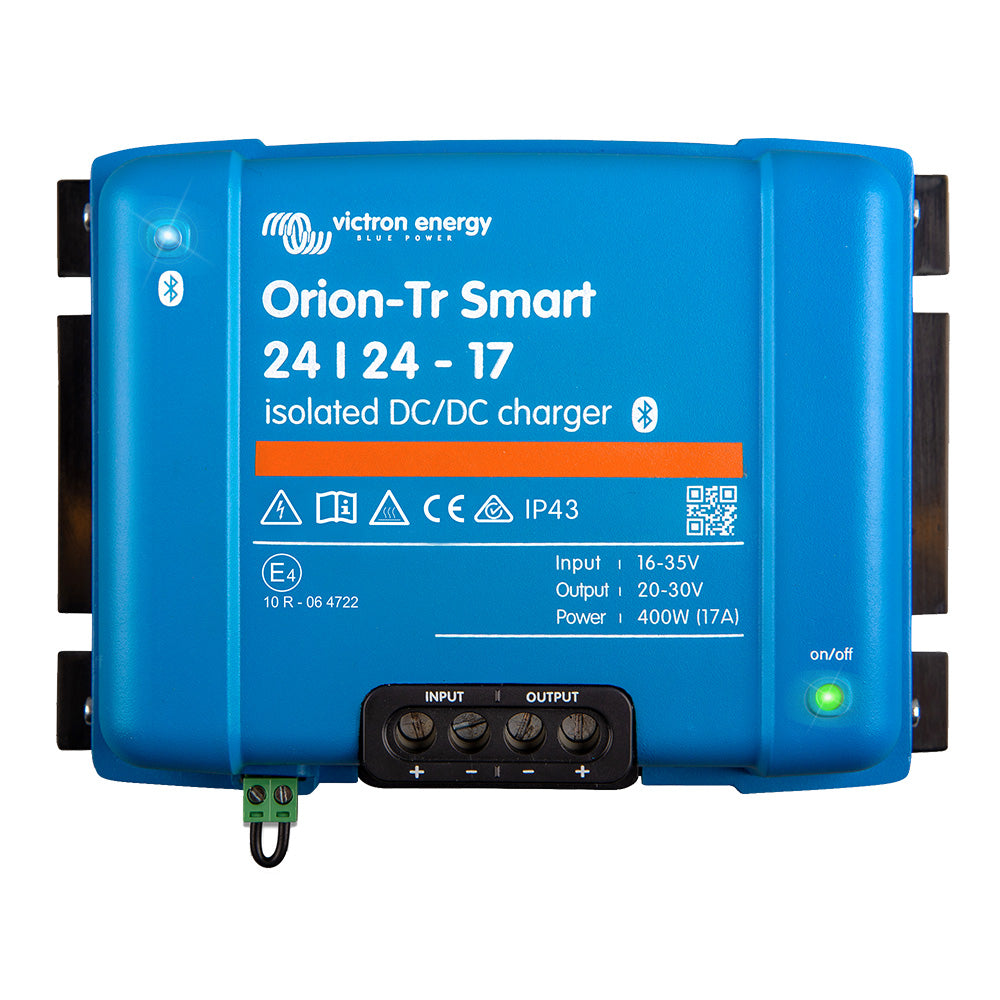

    Victron Orion-TR Smart Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMP [ORI242440120]

    Victron OrionTR Smart DCDC 242417 17a 400W Isolated Charger or Power Supply ORI242440120Victron OrionTR Smart DCDC 242417 17a 400W Isolated Charger or Power Supply ORI242440120
    Victron OrionTR Smart DCDC 242417 17a 400W Isolated Charger or Power Supply ORI242440120Victron OrionTR Smart DCDC 242417 17a 400W Isolated Charger or Power Supply ORI242440120
    Save $43.05
    Free Shipping on $199+

    $243.95
    $243.95 $287.00
    Sale: $43.05 off
    In Stock
    More info
    • Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available.
    • Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product.
    • Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism.
    • Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float:
    • For lithium batteries, the absorption time is fixed (the default is 2 hours).
    • Alternatively, a fixed output voltage can be chosen.
    • The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents the unwanted discharge of the starter battery (see manual for details).
    • An unlimited number of units can be connected in parallel.
    • The output current will reduce at high ambient temperatures.
    • When installed with the screw terminals oriented downward.
    • No special tools are needed for installation.
    • Input Voltage Range: 20-35 V
    • Under Voltage Shut Down: 14 V
    • Under Voltage Restart: 15 V
    • Nominal Output Voltage: 24.2 V
    • Output Voltage Adjust Range: 20-30 V
    • Output Voltage Tolerance: +/- 0,2 V
    • Output Noise: 2 mV rms
    • Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 17 A
    • Maximum Output Current (10 S) at Nominal Output Voltage: 25 A
    • Short Circuit Output Current: 40A
    • Cont. Output Power at 25 Degrees C: 480 W
    • Cont. Output Power at 40 Degrees C: 400 W
    • Efficiency: 89%
    • No Load Input Current (2): < 80 mA
    • Standby Current: Less than 1 mA
    • Galvanic Isolation: 200 VDC between input, output, and case
    • Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C)
    • Humidity: Max. 95 % non-condensing
    • DC Connection: Screw terminals
    • Maximum Cable Cross-Section: 16 mm² AWG6
    • Weight: 1,6 kg (3.5 lb)
    • Dimensions (h x w x d) 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
    • Protection Category: IP43 (electronic components), IP22 (connection area)
    • Safety Standards: EN 60950
    • Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
    • Automotive Directive Standards: ECE R10-5
    Victron Energy

    Victron Orion-TR Smart Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMP [ORI242440120]

    Code: ORA-89167Brand: Victron Energy
    In Stock

    $243.95
    $243.95 $287.00
    Sale: $43.05 off
    Free Shipping on $199+
    • Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism.
    • Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float:
    • For lithium batteries, the absorption time is fixed (the default is 2 hours).
    • Alternatively, a fixed output voltage can be chosen.
  • Victron Energy

    Victron Orion-TR Smart Non-Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMP [ORI242440140]

    Victron OrionTR Smart 242417A 17A 400W NonIsolated DCDC Charger or Power Supply ORI242440140Victron OrionTR Smart 242417A 17A 400W NonIsolated DCDC Charger or Power Supply ORI242440140
    Victron OrionTR Smart 242417A 17A 400W NonIsolated DCDC Charger or Power Supply ORI242440140Victron OrionTR Smart 242417A 17A 400W NonIsolated DCDC Charger or Power Supply ORI242440140
    Save $37.95
    Free Shipping on $199+

    $215.05
    $215.05 $253.00
    Sale: $37.95 off
    Low Stock — Only 9 Left
    More info
    • Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available.
    • Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product.
    • Battery charge algorithm (configurable) or fixed output.
    • Smart alternator compatibility: engine running detection mechanism.
    • For lithium batteries, the absorption time is fixed (the default is 2 hours).
    • Alternatively, a fixed output voltage can be chosen.
    • Input Voltage Range: 20-35 V
    • Under Voltage Shut Down: 14 V
    • Under Voltage Restart: 15 V
    • Nominal Output Voltage: 24.2 V
    • Output Voltage Adjust Range: 20-30 V
    • Output Voltage Tolerance: +/- 0,2 V
    • Output Noise: 2 mV rms
    • Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 17 A
    • Maximum Output Current (10 S) at Nominal Output Voltage: 25 A
    • Short Circuit Output Current: 40A
    • Cont. Output Power at 25 Degrees C: 480 W
    • Cont. Output Power at 40 Degrees C: 400 W
    • Efficiency: 89%
    • No Load Input Current (2): < 80 mA
    • Standby Current: Less than 1 mA
    • Galvanic Isolation: 200 VDC between input, output, and case
    • Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C)
    • Humidity: Max. 95 % non-condensing
    • DC Connection: Screw terminals
    • Maximum Cable Cross-Section: 16 mm² AWG6
    • Weight: 1,6 kg (3.5 lb)
    • Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
    • Protection Category: IP43 (electronic components), IP22 (connection area)
    • Safety Standards: EN 60950
    • Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
    • Automotive Directive Standards: ECE R10-5
    • Charger Input - Voltage: 24v
    • Charger Output - Amps: 17a
    • Charger Output Voltage: 24v
    • Charging Banks: 1
    • Portable: No
    • Box Dimensions: 4"H x 5"W x 8"L WT: 3.5 lbs
    • UPC: 8719076048985
    Victron Energy

    Victron Orion-TR Smart Non-Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMP [ORI242440140]

    Code: ORA-100042Brand: Victron Energy
    Low Stock — Only 9 Left

    $215.05
    $215.05 $253.00
    Sale: $37.95 off
    Free Shipping on $199+
    • Battery charge algorithm (configurable) or fixed output.
    • Smart alternator compatibility: engine running detection mechanism.
    • For lithium batteries, the absorption time is fixed (the default is 2 hours).
    • Alternatively, a fixed output voltage can be chosen.
  • Victron Energy

    Victron Outdoor Antenna f/GX LTE 4G-A [GSM900100400]

    Victron Outdoor Antenna fGX LTE 4GA GSM900100400
    Victron Outdoor Antenna fGX LTE 4GA GSM900100400
    Save $5.25
    Free Shipping on $199+

    $29.75
    $29.75 $35.00
    Sale: $5.25 off
    Low Stock — Only 7 Left
    More info
    • Mounting Option: Screw mount
    • Cable Type: RG-316
    • Cable Length: 3.0 m
    • Connector: SMA male straight
    • Frequencies: 800/900/1800/1900/2100 MHz
    • Signal Gain: 3 dBi
    Victron Energy

    Victron Outdoor Antenna f/GX LTE 4G-A [GSM900100400]

    Code: ORA-100482Brand: Victron Energy
    Low Stock — Only 7 Left

    $29.75
    $29.75 $35.00
    Sale: $5.25 off
    Free Shipping on $199+
    • Mounting Option: Screw mount
    • Cable Type: RG-316
    • Cable Length: 3.0 m
    • Connector: SMA male straight
  • Victron Energy

    Victron Phoenix Inverter - 12 VDC - 3000W - 120 VAC - 50/60Hz [PIN123020100]

    Victron Phoenix Inverter 12VDC 3000VA 120VAC 5060Hz VEBus PIN123020100Victron Phoenix Inverter 12VDC 3000VA 120VAC 5060Hz VEBus PIN123020100
    Victron Phoenix Inverter 12VDC 3000VA 120VAC 5060Hz VEBus PIN123020100Victron Phoenix Inverter 12VDC 3000VA 120VAC 5060Hz VEBus PIN123020100
    Save $203.70
    Free Shipping on $199+

    $1,154.30
    $1,154.30 $1,358.00
    Sale: $203.70 off
    Low Stock — Only 3 Left
    More info
    • Waveform: Pure Sine Wave
    • Inverter Surge Rating: 6000w
    • Inverter Output Voltage: 120v
    • Inverter Input Voltage: 10-17v
    • GFCI: No
    • DC Connection Type: Hardwire
    • AC Connection Type: Hardwire
    • Outlet Qty: None
    • Inverter Cont. Output Wattage: 3000w
    • Box Dimensions: 12"H x 14"W x 18"L WT: 44.45 lbs
    • UPC: 8719076023586
    Victron Energy

    Victron Phoenix Inverter - 12 VDC - 3000W - 120 VAC - 50/60Hz [PIN123020100]

    Code: ORA-82608Brand: Victron Energy
    Low Stock — Only 3 Left

    $1,154.30
    $1,154.30 $1,358.00
    Sale: $203.70 off
    Free Shipping on $199+
    • Waveform: Pure Sine Wave
    • Inverter Surge Rating: 6000w
    • Inverter Output Voltage: 120v
    • Inverter Input Voltage: 10-17v
  • Victron Energy

    Victron Phoenix Inverter 12 VDC - 375W - 120 VAC - 50/60Hz [PIN123750500]

    Victron Phoenix Inverter 12VDC 375VA 120VAC 5060Hz VEDirect PIN123750500
    Victron Phoenix Inverter 12VDC 375VA 120VAC 5060Hz VEDirect PIN123750500
    Save $21.75
    Free Shipping on $199+

    $123.25
    $123.25 $145.00
    Sale: $21.75 off
    Low Stock — Only 9 Left
    More info
    • Inverter Input Voltage: 9-17v
    • Inverter Surge Rating: 700w
    • Inverter Cont. Output Wattage: 375w
    • GFCI: No
    • DC Connection Type: Hardwire
    • Waveform: Pure Sine Wave
    • Outlet Qty: 1 Duplex GFCI
    • Inverter Output Voltage: 120v
    • AC Connection Type: Hardwire
    • Box Dimensions: 6"H x 9"W x 12"L WT: 8.3 lbs
    • UPC: 8719076035961
    Victron Energy

    Victron Phoenix Inverter 12 VDC - 375W - 120 VAC - 50/60Hz [PIN123750500]

    Code: ORA-82623Brand: Victron Energy
    Low Stock — Only 9 Left

    $123.25
    $123.25 $145.00
    Sale: $21.75 off
    Free Shipping on $199+
    • Inverter Input Voltage: 9-17v
    • Inverter Surge Rating: 700w
    • Inverter Cont. Output Wattage: 375w
    • GFCI: No
