Free Shipping on $114+(0)
Regular price $1,308.15Sale price $1,308.15 Regular price $1,539.00Unit price / perSale: $230.85 offIn Stock
More info
- PowerControl & PowerAssist: Yes (on L1 input)
- Transfer Switch: 50 A
- Maximum AC Input Current: 50A (each leg)
- DC Input Voltage Range: 19-33V
- Output When in Inverter Mode: Output voltage: 120 Vac ± 2% / Frequency: 60 Hz ± 0.1% (1)
- Cont. Output Power at 25°C: 3000 VA
- Cont. Output Power at 25°C: 2400 W
- Cont. Output Power at 40°C: 2200 W
- Cont. Output Power at 65°C: 1700 W
- Maximum Apparent Feed-in Power: 2500 VA
- Peak Power: 5500 W
- Maximum Efficiency: 94%
- Zero Load Power: 11W
- Zero Load Power in AES Mode: 8W
- Zero Load Power in Search Mode: 4W
- AC Input: Split-phase: 180-280Vac 45 – 65Hz / Single-phase: 90-140Vac 45 – 65Hz
- Charge Voltage 'Absorption': 28.8 V
- Charge Voltage 'Float': 27.6 V
- Storage Mode: 26.4 V
- Maximum Battery Charge Current: 70 A
- Battery Temperature Sensor: Yes
- Auxiliary Output: 50 A (each leg)
- External AC current Sensor (optional): 100A
- Programmable Relay: Yes
- Protection: a – g
- VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring and system integration
- General Purpose com. Port: Yes, 2x
- Remote On-Off: Yes
- Operating Temperature Range: -40 to +65°C (-40 -150°F) Fan assisted cooling
- Humidity (non-condensing): Max 95%
- Material & Color: Steel, blue RAL 5012
- Protection Category: IP22
- Battery-Connection: 2 M8 bolts
- 120/240 V AC-Connection: Screw terminals 21 mm² (4 AWG)
- Weight: 22.5 kg / (50lb)
- Dimensions (hxwxd): 579 x 319 x 168 mm / (23 x 13 x 7 inch)
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
- Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Can be adjusted to 50 Hz
- Protection key: Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 120Vac on inverter output, input voltage ripple too high
- Non-linear load, crest factor 3:1.
- Up to 75-degrees F / 25-degrees C ambient temperature
- Switches off when no external AC source is available.
- Programmable Relay That Can for Example Be Set for General Alarm or DC under Voltage or Genset Start/Stop Function: AC rating: 120Vac / 4A / DC rating: 4A up to 35dc, 1A up to 60Vdc
- Use, for example, to communicate with a lithium battery BMS
- Charger Input - Voltage: 120VAC
- Charger Output - Amps: 70A
- Charger Output Voltage: 24V
- Charging Banks: 2x120VAC
- Inverter Cont. Output Wattage: 3000VA / 2400W
- Inverter Input Voltage: 24VDC
- Inverter Output Voltage: 120VAC
- Outlet Qty: None
- Box Dimensions: 11"H x 17"W x 27"L WT: 55.9 lbs
- UPC: 8719076057376
Victron EnergyVictron Quattro-II - 24/3000 - 70-50/50 - 2X 120V [QUA242305130]
Code: ORA-100131Brand: Victron EnergyIn Stock(0)
Regular price $1,308.15Sale price $1,308.15 Regular price $1,539.00Unit price / perSale: $230.85 offFree Shipping on $114+- PowerControl & PowerAssist: Yes (on L1 input)
- Transfer Switch: 50 A
- Maximum AC Input Current: 50A (each leg)
- DC Input Voltage Range: 19-33V
-
Free Shipping on $114+(0)
Regular price $1,377.00Sale price $1,377.00 Regular price $1,620.00Unit price / perSale: $243.00 offIn Stock
More info
- PowerControl & PowerAssist: Yes (on L1 input)
- Transfer Switch: 50 A
- Maximum AC Input Current: 50A (each leg)
- DC Input Voltage Range: 9.5-17V
- Output When in Inverter Mode: Output voltage: 120 Vac ± 2% / Frequency: 60 Hz ± 0.1% (1)
- Cont. Output Power at 25°C: 3000 VA
- Cont. Output Power at 25°C: 2400 W
- Cont. Output Power at 40°C: 2200 W
- Cont. Output Power at 65°C: 1700 W
- Maximum Apparent Feed-in Power: 2500 VA
- Peak Power: 5500 W
- Maximum Efficiency: 93%
- Zero Load Power: 15W
- Zero Load Power in AES Mode: 10W
- Zero Load Power in Search Mode: 4W
- AC Input: Split-phase: 180-280Vac 45 – 65Hz / Single-phase: 90-140Vac 45 – 65Hz
- Charge Voltage 'Absorption': 14.4V
- Charge Voltage 'Float': 13.8V
- Storage Mode: 13.2V
- Maximum Battery Charge Current: 120A
- Battery Temperature Sensor: Yes
- Auxiliary Output: 50 A (each leg)
- External AC current Sensor (optional): 100A
- Programmable Relay: Yes
- Protection: a – g
- VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring and system integration
- General Purpose com. Port: Yes, 2x
- Remote On-Off: Yes
- Operating Temperature Range: -40 to +65°C (-40 -150°F) Fan assisted cooling
- Humidity (non-condensing): Max 95%
- Material & Color: Steel, blue RAL 5012
- Protection Category: IP22
- Battery-Connection: 2x2 M8 bolts
- 120/240 V AC-Connection: Screw terminals 21 mm² (4 AWG)
- Weight: 32.8 kg / (52 lb)
- Dimensions (hxwxd): 579 x 319 x 168 mm / (23 x 13 x 7 inch)
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
- Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Can be adjusted to 50 Hz
- Protection key: Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 120Vac on inverter output, input voltage ripple too high
- Non-linear load, crest factor 3:1.
- Up to 75-degrees F / 25-degrees C ambient temperature
- Switches off when no external AC source is available.
- Programmable Relay That Can for Example Be Set for General Alarm or DC under Voltage or Genset Start/Stop Function: AC rating: 120Vac / 4A / DC rating: 4A up to 35dc, 1A up to 60Vdc
- Use, for example, to communicate with a lithium battery BMS
- Charger Input - Voltage: 120VAC
- Charger Output - Amps: 50A
- Charger Output Voltage: 14VDC
- Charging Banks: 2
- Inverter Cont. Output Wattage: 3000VA / 2400W
- Inverter Input Voltage: 9.5 - 17VDC
- Inverter Output Voltage: 120VAC
- Outlet Qty: None
- Box Dimensions: 11"H x 17"W x 27"L WT: 60 lbs
- UPC: 8719076057369
Victron EnergyVictron Quattro-II - 12/3000 - 120-50/50 - 2X 120V [QUA122305130]
Code: ORA-100132Brand: Victron EnergyIn Stock(0)
Regular price $1,377.00Sale price $1,377.00 Regular price $1,620.00Unit price / perSale: $243.00 offFree Shipping on $114+- PowerControl & PowerAssist: Yes (on L1 input)
- Transfer Switch: 50 A
- Maximum AC Input Current: 50A (each leg)
- DC Input Voltage Range: 9.5-17V
-
Free Shipping on $114+(0)
Regular price $785.40Sale price $785.40 Regular price $924.00Unit price / perSale: $138.60 offLow Stock — Only 5 Left
More info
- PowerControl: Yes
- PowerAssist: Yes
- Transfer Switch (A): 50
- Parallel and 3-phase Operation: Yes
- Input Voltage Range (V DC): 9,5 – 17 V 19 – 33 V
- Output: Output voltage: 120 VAC, ± 2% / Frequency 60 Hz ± 0,1%
- Continuous Output Power at 25°C (VA): 2000
- Continuous Output Power at 25°C (W): 1600
- Continuous Output Power at 40°C (W): 1450
- Continuous Output Power at 65°C (W): 1100
- Peak Power (W): 4000
- Maximum Efficiency (%): 92 / 94
- Zero Load Power (W): 9 / 11
- Zero Load Power in AES Mode (W): 7 / 8
- Zero Load Power in Search Mode (W): 3 /4
- AC Input: Input voltage range: 95-140 VAC / Input frequency: 45 – 65 Hz / Power factor: 1
- Charge Voltage Absorption (V DC): 14,4 / 28,8
- Charge Voltage Float (V DC): 13,8 / 27,6
- Storage Mode (V DC): 13,2 / 26,4
- Charge Current House Battery (A): 80 /50
- Charge Current Starter Battery (A): 4
- Battery Temperature Sensor: Yes
- Auxiliary Output: N.A.
- Programmable Relay: Yes (1x)
- Protection: a - g
- VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring, and system integration
- General purpose com. Port: N.A.
- Remote On-Off: Yes
- Operating Temperature Range: -40 - +65°C / -40 to 150°F (fan-assisted cooling), Humidity (non-condensing) max 95%
- Common Characteristics: Material & Color: aluminum (blue RAL 5012) / Protection category: IP 21
- Battery-Connection: M8 bolts
- 120 V AC-Connection: Screw-terminal 6 AWG (13 mm2)
- Weight: 13 kg / 25 lbs.
- Dimensions (hxwxd in mm): 520 x 255 x 125 mm / 20.5 x 10.0 x 5.0 in.
- Safety: UL 458, EN-IEC 60335-1, EN-IEC 60335-2-29
- Emission, Immunity: EN-IEC 61000-3-2/3-3/, EN-IEC 61000-6-1/6-2/6-3
- Can be adjusted to 50 HZ
- Protection Key: Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 150 VAC on the inverter output, input voltage ripple is too high
- Non-linear load, crest factor 3:1
- Up to 75°F ambient
- Switches off when no external AC source is available

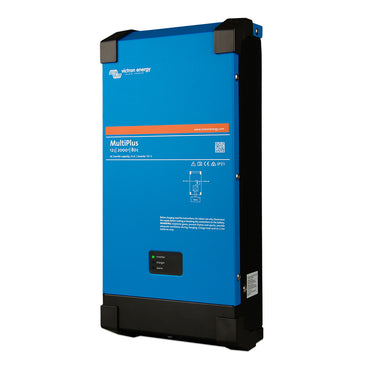

Victron EnergyVictron MultiPlus 24/2000 - 50-50 - 120V - VE.Bus UL Approved [PMP242200102]
Code: ORA-99865Brand: Victron EnergyLow Stock — Only 5 Left(0)
Regular price $785.40Sale price $785.40 Regular price $924.00Unit price / perSale: $138.60 offFree Shipping on $114+- PowerControl: Yes
- PowerAssist: Yes
- Transfer Switch (A): 50
- Parallel and 3-phase Operation: Yes
-
Free Shipping on $114+(0)
Regular price $997.05Sale price $997.05 Regular price $1,173.00Unit price / perSale: $175.95 offIn Stock
More info
- PowerControl & PowerAssist: Yes
- Transfer Switch: 50A
- Maximum AC Input Current: 50A
- DC Input Voltage Range: 19–33 V
- Output: Output Voltage 120 VAC ± 2% / Frequency 60 Hz ± 0,1% (1)
- Continuous Output Power at 25°C (3): 3000 VA
- Continuous Output Power at 25°C: 2400 W
- Continuous Output Power at 40°C: 2200 W
- Continuous Output Power at 65°C: 1700 W
- Maximum Apparent Feed-In Power: 2500 VA
- Peak Power: 5500 W
- Maximum Efficiency: 94%
- Zero Load Power: 13 W
- Zero Load Power in AES Mode: 9 W
- Zero Load Power in Search Mode: 3 W
- AC Input: Input Voltage Range 90-140 VAC / Input Frequency: 45 – 65 Hz
- Charge Voltage 'Absorption': 28,8 V
- Charge Voltage 'Float': 27,6 V
- Storage Mode: 26,4 V
- Maximum Battery Charge Current (4): 70 A
- Battery Temperature Sensor: Yes
- Auxiliary Output: Yes (32 A)
- External AC Current Sensor (optional): 100 A
- Programmable Relay (5): Yes
- Protection (2): a – g
- VE.Bus Communication Port: For parallel, split phase and three phase operation, remote monitoring and system integration
- General Purpose Com. Port: Yes, 2x
- Remote On-Off: Yes
- Operating Temperature Range: -40 to +65°C (-40 – 150 °F) (fan assisted cooling)
- Humidity (Non-Condensing): Max 95%
- Material & Color: Steel, blue RAL 5012
- Protection Category: IP22
- Battery-Connection: M8 bolts
- 120 V AC-Connection: Screw terminals 13 mm² (6 AWG)
- Weight: 9 kg
- Dimensions (hxwxd) (mm): 536 x 277 x 147
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, UL458
- Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Charger Input - Voltage: 120VAC
- Charger Output - Amps: 70A
- Charger Output Voltage: 24VDC
- Charging Banks: 2
- Inverter Cont. Output Wattage: 3000VA / 2400W
- Inverter Input Voltage: 24VDC
- Inverter Output Voltage: 120VAC
- Outlet Qty: None
- Box Dimensions: 10"H x 14"W x 23"L WT: 48.25 lbs
- UPC: 8719076059202

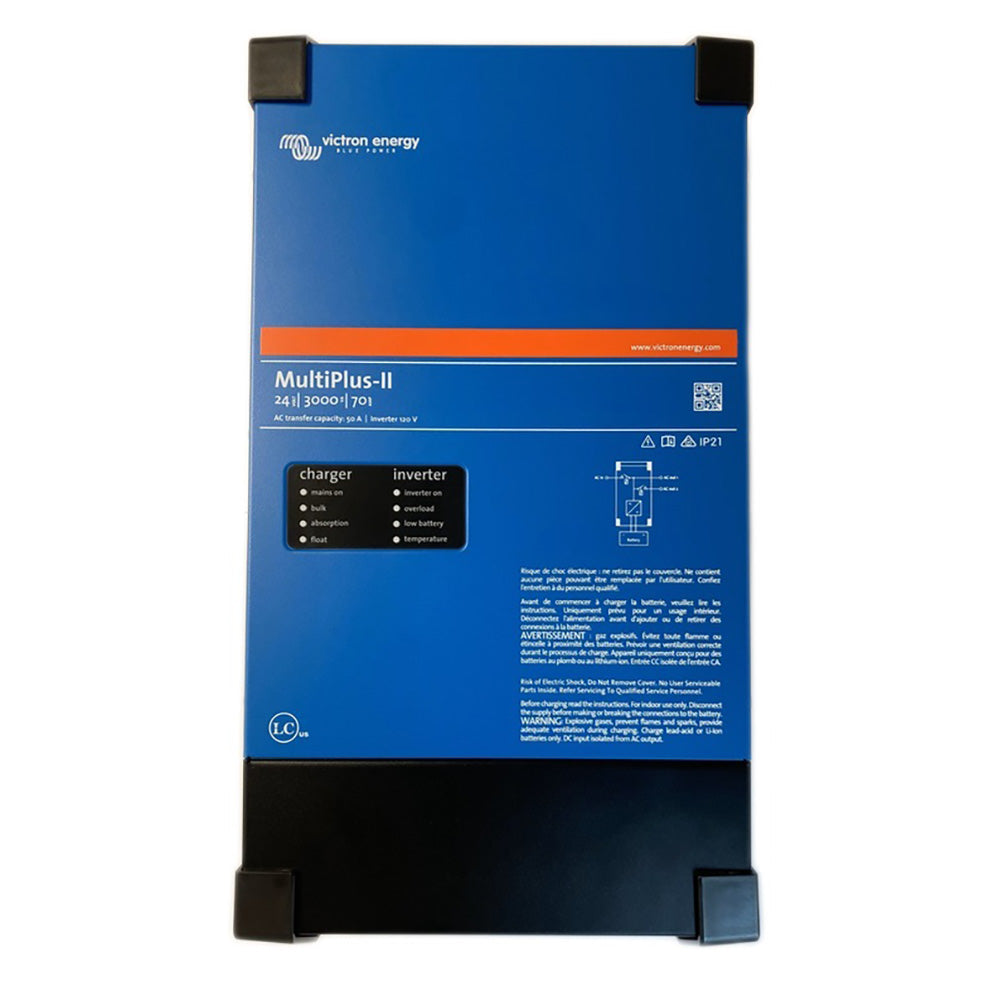

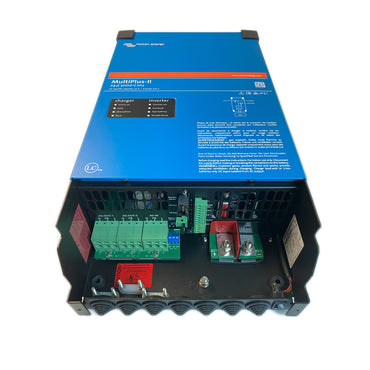

Victron EnergyVictron MultiPlus-II 24/3000 - 70-50 - 120V - UL Approved [PMP242305102]
Code: ORA-99175Brand: Victron EnergyIn Stock(0)
Regular price $997.05Sale price $997.05 Regular price $1,173.00Unit price / perSale: $175.95 offFree Shipping on $114+- PowerControl & PowerAssist: Yes
- Transfer Switch: 50A
- Maximum AC Input Current: 50A
- DC Input Voltage Range: 19–33 V
-

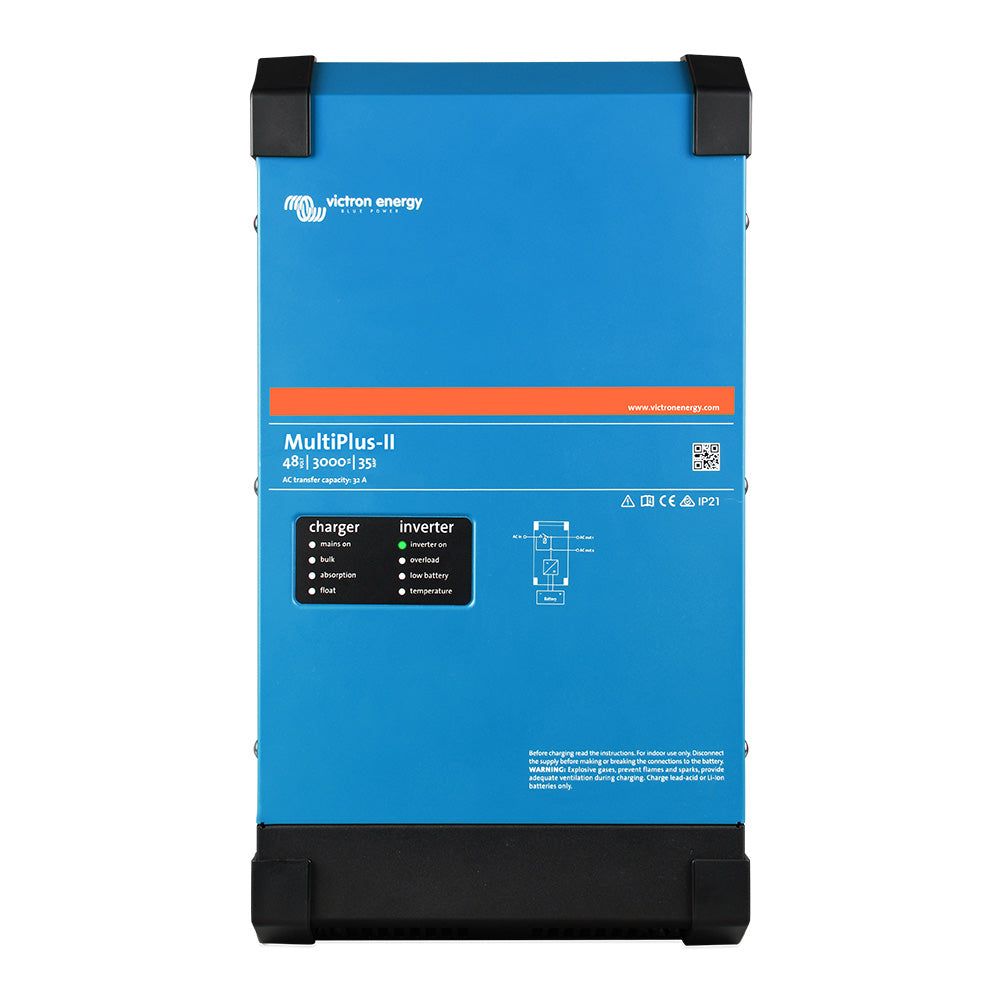

Free Shipping on $114+(0)
Regular price $1,052.30Sale price $1,052.30 Regular price $1,238.00Unit price / perSale: $185.70 offLow Stock — Only 8 Left
More info
- PowerControl & PowerAssist: Yes
- Transfer Switch: 50A
- Maximum AC Input Current: 50A
- DC Input Voltage Range: 38 – 66 V
- Output: Output Voltage 120 VAC ± 2% / Frequency 60 Hz ± 0,1% (1)
- Continuous Output Power at 25°C (3): 3000 VA
- Continuous Output Power at 25°C: 2400 W
- Continuous Output Power at 40°C: 2200 W
- Continuous Output Power at 65°C: 1700 W
- Maximum Apparent Feed-In Power: 2500 VA
- Peak Power: 5500 W
- Maximum Efficiency: 95%
- Zero Load Power: 11 W
- Zero Load Power in AES Mode: 7 W
- Zero Load Power in Search Mode: 2 W
- AC Input: Input Voltage Range 90-140 VAC / Input Frequency: 45 – 65 Hz
- Charge Voltage 'Absorption': 57,6 V
- Charge Voltage 'Float': 55,2 V
- Storage Mode: 52,8 V
- Maximum Battery Charge Current (4): 35 A
- Battery Temperature Sensor: Yes
- Auxiliary Output: Yes (32 A)
- External AC Current Sensor (optional): 100 A
- Programmable Relay (5): Yes
- Protection (2): a – g
- VE.Bus Communication Port: For parallel, split phase and three phase operation, remote monitoring and system integration
- General Purpose Com. Port: Yes, 2x
- Remote On-Off: Yes
- Operating Temperature Range: -40 to +65°C (-40 – 150 °F) (fan assisted cooling)
- Humidity (Non-Condensing): Max 95%
- Material & Color: Steel, blue RAL 5012
- Protection Category: IP22
- Battery-Connection: M8 bolts
- 120 V AC-Connection: Screw terminals 13 mm² (6 AWG)
- Weight: 9 kg
- Dimensions (hxwxd) (mm): 536 x 275 x 147
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, UL458
- Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Charger Input - Voltage: 120VAC
- Charger Output - Amps: 35A
- Charger Output Voltage: 120VAC
- Charging Banks: 2
- Inverter Cont. Output Wattage: 3000AVA / 2400W
- Inverter Input Voltage: 48VDC
- Inverter Output Voltage: 120VAC
- Outlet Qty: None
- Box Dimensions: 10"H x 14"W x 25"L WT: 44 lbs
- UPC: 8719076059226

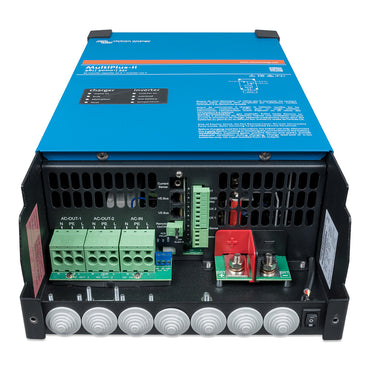

Victron EnergyVictron MultiPlus-II 48/3000 - 35-50 - 120V - UL Approved [PMP482305102]
Code: ORA-97943Brand: Victron EnergyLow Stock — Only 8 Left(0)
Regular price $1,052.30Sale price $1,052.30 Regular price $1,238.00Unit price / perSale: $185.70 offFree Shipping on $114+- PowerControl & PowerAssist: Yes
- Transfer Switch: 50A
- Maximum AC Input Current: 50A
- DC Input Voltage Range: 38 – 66 V
-
Free Shipping on $114+(0)
Regular price $861.90Sale price $861.90 Regular price $1,014.00Unit price / perSale: $152.10 offIn Stock
More info
- Charger Input - Voltage: 120VAC
- Charger Output - Amps: 80A
- Charger Output Voltage: 120VAC
- Charging Banks: 1
- Inverter Cont. Output Wattage: 2000VA / 1600W
- Inverter Input Voltage: 12VDC
- Inverter Output Voltage: 120VAC
- Outlet Qty: None
- Box Dimensions: 10"H x 13"W x 23"L WT: 38.8 lbs
- UPC: 8719076058144

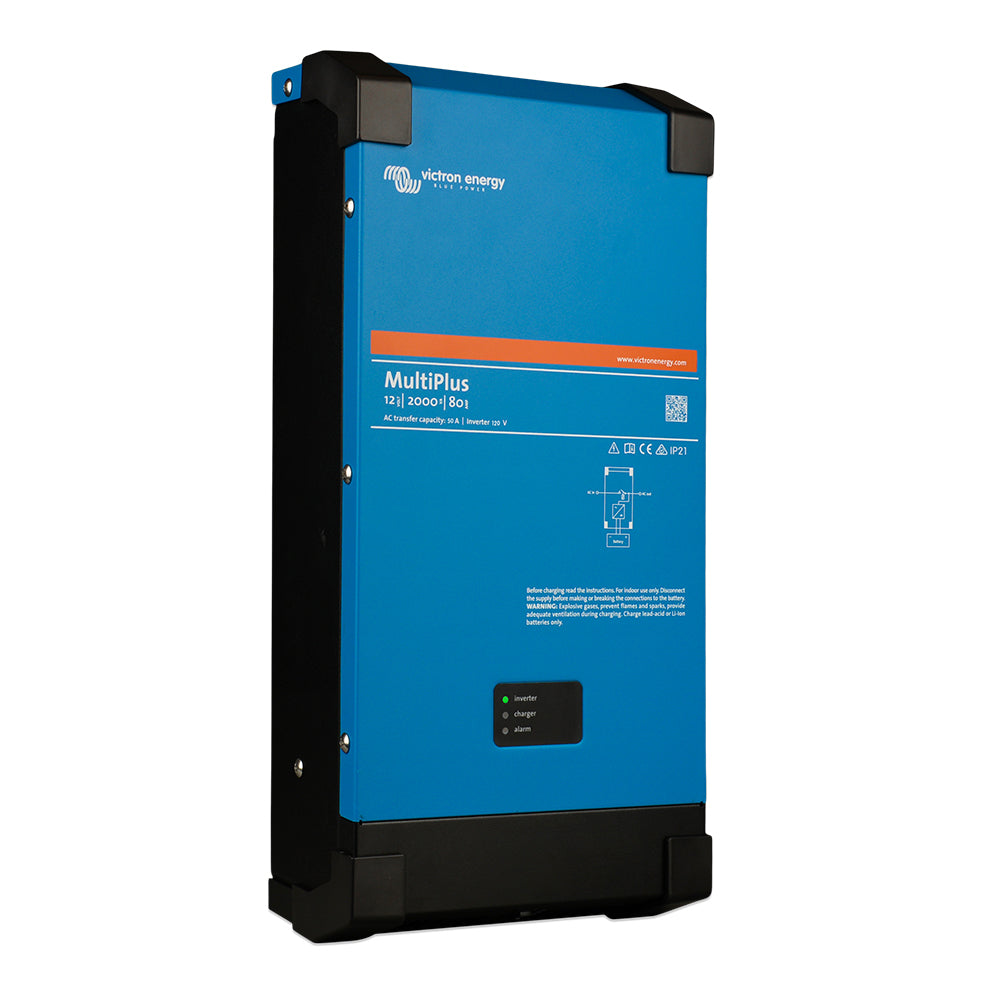

Victron EnergyVictron MultiPlus 12/2000 80-50 120V VE.Bus UL Listed [PMP122200102]
Code: ORA-97092Brand: Victron EnergyIn Stock(0)
Regular price $861.90Sale price $861.90 Regular price $1,014.00Unit price / perSale: $152.10 offFree Shipping on $114+- Charger Input - Voltage: 120VAC
- Charger Output - Amps: 80A
- Charger Output Voltage: 120VAC
- Charging Banks: 1
-
Free Shipping on $114+(0)
Regular price $1,088.00Sale price $1,088.00 Regular price $1,280.00Unit price / perSale: $192.00 offIn Stock
More info

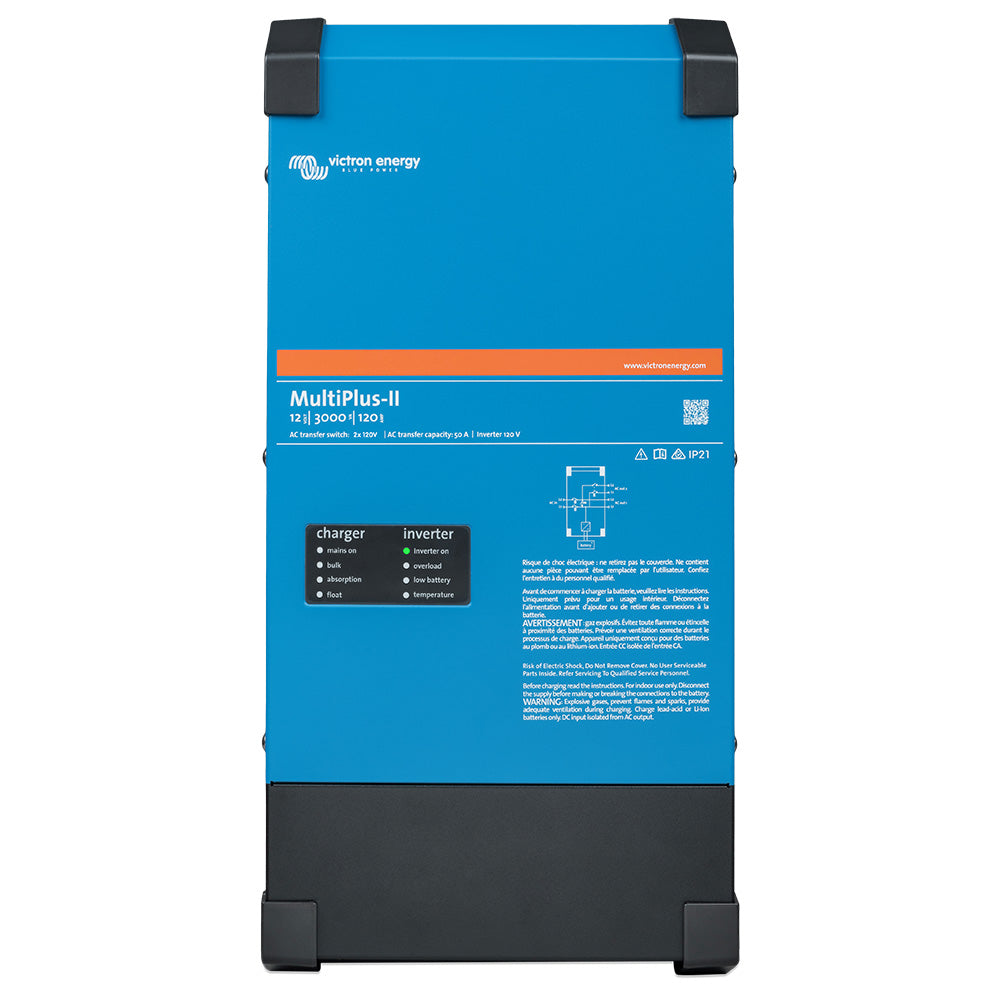

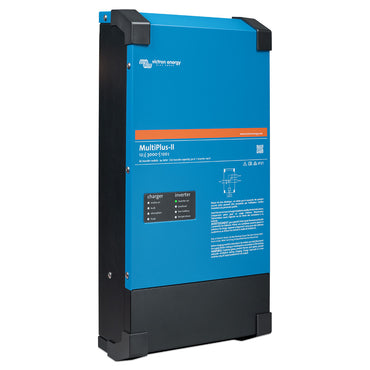

MultiPlus-II 12/3000 - 120-50 - 2x 120V UL ApprovedThe MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).It also has...Victron EnergyVictron MultiPlus-II 12/3000 - 120-50 - 2x 120V UL Approved [PMP122305102]
Code: ORA-96589Brand: Victron EnergyIn Stock(0)
Regular price $1,088.00Sale price $1,088.00 Regular price $1,280.00Unit price / perSale: $192.00 offFree Shipping on $114+MultiPlus-II 12/3000 - 120-50 - 2x 120V UL ApprovedThe MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It...
-
Free Shipping on $114+(0)
Regular price $13.60Sale price $13.60 Regular price $16.00Unit price / perSale: $2.40 offLow Stock — Only 7 Left
More info
- When used with the MultiPlus 500VA-1200VA models connect the black wire to the ON terminal and the red wire to the (+) terminal.
- When used with the MultiPlus Compact 800VA-2kVA models connect the black wire to the middle terminal and the red wire to the right (IN) terminal.
- When used with the MultiPlus-II models connect the black wire to the lower (-) terminal and the red wire to the upper (+) remote on-off terminal.

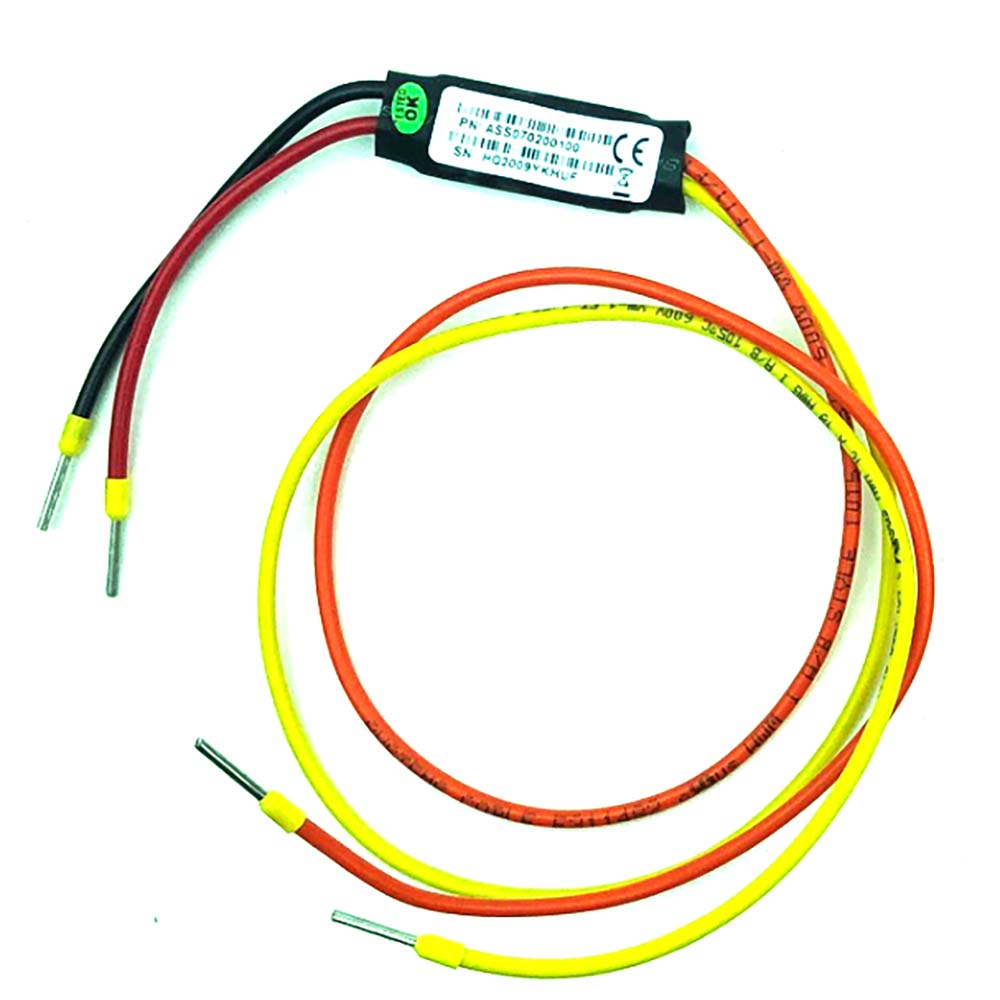

Victron EnergyVictron Cable f/Smart BMS CL 12-100 to MultiPlus [ASS070200100]
Code: ORA-92591Brand: Victron EnergyLow Stock — Only 7 Left(0)
Regular price $13.60Sale price $13.60 Regular price $16.00Unit price / perSale: $2.40 offFree Shipping on $114+- When used with the MultiPlus 500VA-1200VA models connect the black wire to the ON terminal and...
- When used with the MultiPlus Compact 800VA-2kVA models connect the black wire to the middle terminal...
- When used with the MultiPlus-II models connect the black wire to the lower (-) terminal and...
-
Free Shipping on $114+(0)
Regular price $2,809.99Sale price $2,809.99 Regular price $0.00Unit price / perLow Stock — Only 4 Left
More info
- Nominal DC Voltage: 24V (10.2-16V)
- Continuous Power at 104° F: 3500W
- Peak Power 30 seconds: 4500W
- Surge Power 5 seconds: 6000W
- Parallel Stacking: Yes, Up to 7
- Synchronize with Mains/Generator: Yes
- Output Waveform: Pure Sine
MastervoltMastervolt CombiMaster Inverter/Charger - 24/3500-100 Amp - 120V [35523500]
Code: ORA-87697Brand: MastervoltLow Stock — Only 4 Left(0)
Regular price $2,809.99Sale price $2,809.99 Regular price $0.00Unit price / perFree Shipping on $114+- Nominal DC Voltage: 24V (10.2-16V)
- Continuous Power at 104° F: 3500W
- Peak Power 30 seconds: 4500W
- Surge Power 5 seconds: 6000W
-
Free Shipping on $114+(0)
Regular price $1,186.69Sale price $1,186.69 Regular price $0.00Unit price / perLow Stock — Only 3 Left
More info
- Nominal DC Voltage: 12V (10.2-16V)
- Continuous Power at 104° F: 1500W
- Peak Power 30 seconds: 2250W
- Surge Power 5 seconds: 3000W
- Parallel Stacking: No
- Synchronize with Mains/Generator: Yes
- Output Waveform: Pure Sine
MastervoltMastervolt CombiMaster Inverter/Charger - 12/1500-60 Amp - 120V [35511500]
Code: ORA-87695Brand: MastervoltLow Stock — Only 3 Left(0)
Regular price $1,186.69Sale price $1,186.69 Regular price $0.00Unit price / perFree Shipping on $114+- Nominal DC Voltage: 12V (10.2-16V)
- Continuous Power at 104° F: 1500W
- Peak Power 30 seconds: 2250W
- Surge Power 5 seconds: 3000W
-
Free Shipping on $114+(0)
Regular price $1,592.30Sale price $1,592.30 Regular priceUnit price / perLow Stock — Only 7 Left
More info
- Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
- True Sine Wave AC Power: For the operation of sensitive and motor loads
- Ignition Control: Feature to turn the inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
- Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
- Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input
- Built-in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power
- Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
- Battery Equalization: Maximizes flooded battery life
- Dead Battery Charging Down to 0 Vdc
- Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
- Easily configurable settings to charge any lithium-ion battery
XantrexXantrex Freedom XC PRO Marine 2000W Inverter/Charger - 12V [818-2015]
Code: ORA-87989Brand: XantrexLow Stock — Only 7 Left(0)
Regular price $1,592.30Sale price $1,592.30 Regular priceUnit price / perFree Shipping on $114+- Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
- True Sine Wave AC Power: For the operation of sensitive and motor loads
- Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle...
- Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input
-
Free Shipping on $114+(0)
Regular price $1,419.50Sale price $1,419.50 Regular price $1,670.00Unit price / perSale: $250.50 offLow Stock — Only 6 Left
More info
- In the case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure
- Parallel and three-phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software
- Off-grid, grid-interactive, and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications)
- PowerControl: Yes
- PowerAssist: Yes
- Transfer Switch (A): 16 or 50
- Input Voltage Range (V DC): 9,5 – 17 V 19 – 33 V 38 – 66 V
- Output: Output voltage: 230 VAC, ± 2% / Frequency 50 Hz ± 0,1%
- Continuous Output Power at 25°C (VA): 3000
- Continuous Output Power at 25°C (W): 2400
- Continuous Output Power at 40°C (W): 2200
- Continuous Output Power at 65°C (W): 1700
- Peak Power (W): 6000
- Maximum Efficiency (%): 93 / 94 / 95
- Zero Load Power (W): 20 / 20 / 25
- Zero Load Power in AES Mode (W): 15 / 15 / 20
- Zero Load Power in Search Mode (W): 8 / 10 / 12
- AC Input: Input voltage range: 187-265 VAC / Input frequency: 45 – 65 Hz / Power factor: 1
- Charge Voltage Absorption (V DC): 14,4 / 28,8 / 57,6
- Charge Voltage Float (V DC): 13,8 / 27,6 / 55,2
- Storage Mode (V DC): 13,2 / 26,4 / 52,8
- Charge Current House Battery (A): 120 / 70 / 35
- Charge Current Starter Battery (A): 4 (12 V and 24 V models only)
- Battery Temperature Sensor: Yes
- Auxiliary Output: Yes (16A)
- Programmable Relay: Yes
- Protection: a - g
- VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring, and system integration
- General purpose com. Port: Yes
- Remote On-Off: Yes
- Common Characteristics: Operating temp. range: -40 to +65°C (fan-assisted cooling) / Humidity (non-condensing): max 95%
- Common Characteristics: Material & Color: aluminum (blue RAL 5012) / Protection category: IP 21
- Battery-Connection: Four M8 bolts (2 plus and 2 minus connections)
- 230 V AC-Connection: Screw terminals 13mm^2 (6 AWG) M6 bolts
- Weight (kg): 18
- Dimensions (hxwxd in mm): 362 x 258 x 218
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
- Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Road Vehicles: 12V and 24V models: ECE R10-4
- Anti-Islanding: See Victron's website
- Can be adjusted to 60 HZ. 120 V models available on request
- Protection Key: Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 230 VAC on the inverter output, input voltage ripple is too high
- Non-linear load, crest factor 3:1
- Up to 25°C ambient
- Switches off when no external AC source is available
Victron EnergyVictron MultiPlus 12/3000 - 120-50 - 230V - VE.Bus [PMP123021010]
Code: ORA-86166Brand: Victron EnergyLow Stock — Only 6 Left(0)
Regular price $1,419.50Sale price $1,419.50 Regular price $1,670.00Unit price / perSale: $250.50 offFree Shipping on $114+- In the case of a stand-alone application, if settings have to be changed, this can be...
- Parallel and three-phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software
- PowerControl: Yes
- PowerAssist: Yes
-
Free Shipping on $114+(0)
Regular price $1,592.30Sale price $1,592.30 Regular priceUnit price / perLow Stock — Only 7 Left
More info
- Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
- True Sine Wave AC Power: For operation of sensitive and motor loads
- Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
- Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
- Built-in 50A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator)
- Power Factor corrected Multi-Stage: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances
- Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
- Continuous Power: 2000 Watts
- Continuous Current: 16.7 Amps
- Surge Power: 4000 Watts
- Frequency: 60 (or 50) Hz (selectable)
- Output Voltage: 108, 110, 120 Volts AC (selectable)
- Input Voltage: 12 Volts DC nominal
- Safety: ETL listed to CSA 107.1, UL458 (UL458 Marine Supplement with optional drip shield, part number 808-1050)
- Dimensions: 15.4" x 10.8" x 4.9"
- Unit weight: 17.1 lbs
- 2 year warranty
XantrexXantrex Freedom XC Pro 2000 Inverter/Charger - 2000W - 100A - 120V
Code: ORA-84511Brand: XantrexLow Stock — Only 7 Left(0)
Regular price $1,592.30Sale price $1,592.30 Regular priceUnit price / perFree Shipping on $114+- Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
- True Sine Wave AC Power: For operation of sensitive and motor loads
- Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle...
- Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery...
-
Free Shipping on $114+(0)
Regular price $1,373.89Sale price $1,373.89 Regular price $0.00Unit price / perLow Stock — Only 6 Left
More info
- Most compact and lightweight Combi in its class.
- Reliable, hum-free and longer operation from your batteries.
- Starts even the heaviest and most sensitive loads.
- Intelligent 3-step+ battery charger for faster and safer charging.
- Automatic switching between mains and inverter mode.
- Power Assist prevents blown mains fuses.
- Generator compatible.
- Integrated CZone*, MasterBus and NMEA 2000 communication.
- Quick installation with heavy duty connections.
- E-mark certified.
- MasterBus compatible via SmartRemote or EasyView 5 display.
- CZone* / NMEA 2000 compatible via Touch 5 or Touch 10 display.
- NMEA 2000 compatible via 3rd party multifunctional display
- Charger Output Voltage: 12v
- Inverter Input Voltage: 12v
- Inverter Output Voltage: 120v
- Outlet Qty: Hardwire
- Inverter Cont. Output Wattage: 2000w
- Charger Output - Amps: 100a
- Charger Input - Voltage: 120v
- Box Dimensions: 10"H x 16"W x 24"L WT: 27.1 lbs
- UPC: 816882022302
MastervoltMastervolt CombiMaster 12V - 2000W - 100 Amp (120V) [35512000]
Code: ORA-80134Brand: MastervoltLow Stock — Only 6 Left(0)
Regular price $1,373.89Sale price $1,373.89 Regular price $0.00Unit price / perFree Shipping on $114+- Most compact and lightweight Combi in its class.
- Reliable, hum-free and longer operation from your batteries.
- Starts even the heaviest and most sensitive loads.
- Intelligent 3-step+ battery charger for faster and safer charging.
-
Free Shipping on $114+(0)
Regular price $903.99Sale price $903.99 Regular price $0.00Unit price / perLow Stock — Only 5 Left
More info
- Outlet Qty: Hardwire
- Inverter Output Voltage: 120v
- Inverter Input Voltage: 12v
- Inverter Cont. Output Wattage: 1200w
- Charger Output Voltage: 12v
- Charger Output - Amps: 50a
- Charger Input - Voltage: 120v
- Box Dimensions: 7"H x 12"W x 19"L WT: 7.45 lbs
- UPC: 816882022579
MastervoltMastervolt PowerCombi 12V - 1200W - 50 Amp (120V) [36211200]
Code: ORA-80144Brand: MastervoltLow Stock — Only 5 Left(0)
Regular price $903.99Sale price $903.99 Regular price $0.00Unit price / perFree Shipping on $114+- Outlet Qty: Hardwire
- Inverter Output Voltage: 120v
- Inverter Input Voltage: 12v
- Inverter Cont. Output Wattage: 1200w
-
Free Shipping on $114+(0)
Regular price $2,549.99Sale price $2,549.99 Regular price $0.00Unit price / perLow Stock — Only 4 Left
More info
- Most compact and lightweight Combi in its class.
- Reliable, hum-free and longer operation from your batteries.
- Starts even the heaviest and most sensitive loads.
- Intelligent 3-step+ battery charger for faster and safer charging.
- Automatic switching between mains and inverter mode.
- Power Assist prevents blown mains fuses.
- Generator compatible.
- Integrated CZone*, MasterBus and NMEA 2000 communication.
- Quick installation with heavy duty connections.
- E-mark certified.
- MasterBus compatible via SmartRemote or EasyView 5 display.
- CZone* / NMEA 2000 compatible via Touch 5 or Touch 10 display.
- NMEA 2000 compatible via 3rd party multifunctional display
MastervoltMastervolt CombiMaster 24V - 3000W - 60 Amp (230V) [35023000]
Code: ORA-80137Brand: MastervoltLow Stock — Only 4 Left(0)
Regular price $2,549.99Sale price $2,549.99 Regular price $0.00Unit price / perFree Shipping on $114+- Most compact and lightweight Combi in its class.
- Reliable, hum-free and longer operation from your batteries.
- Starts even the heaviest and most sensitive loads.
- Intelligent 3-step+ battery charger for faster and safer charging.
-
Free Shipping on $114+(0)
Regular price $1,816.99Sale price $1,816.99 Regular price $0.00Unit price / perLow Stock — Only 3 Left
More info
- Most compact and lightweight Combi in its class.
- Reliable, hum-free and longer operation from your batteries.
- Starts even the heaviest and most sensitive loads.
- Intelligent 3-step+ battery charger for faster and safer charging.
- Automatic switching between mains and inverter mode.
- Power Assist prevents blown mains fuses.
- Generator compatible.
- Integrated CZone*, MasterBus and NMEA 2000 communication.
- Quick installation with heavy duty connections.
- E-mark certified.
- MasterBus compatible via SmartRemote or EasyView 5 display.
- CZone* / NMEA 2000 compatible via Touch 5 or Touch 10 display.
- NMEA 2000 compatible via 3rd party multifunctional display.
- Outlet Qty: Hardwire
- Inverter Output Voltage: 120v
- Charger Output - Amps: 70a
- Charger Input - Voltage: 120v
- Inverter Input Voltage: 24v
- Inverter Cont. Output Wattage: 3000w
- Charger Output Voltage: 24v
- Box Dimensions: 10"H x 16"W x 23"L WT: 26.15 lbs
- UPC: 816882022333
MastervoltMastervolt CombiMaster 24V - 3000W - 70 Amp (120V) [35523000]
Code: ORA-80132Brand: MastervoltLow Stock — Only 3 Left(0)
Regular price $1,816.99Sale price $1,816.99 Regular price $0.00Unit price / perFree Shipping on $114+- Most compact and lightweight Combi in its class.
- Reliable, hum-free and longer operation from your batteries.
- Starts even the heaviest and most sensitive loads.
- Intelligent 3-step+ battery charger for faster and safer charging.
-
Free Shipping on $114+(0)
Regular price $2,474.33Sale price $2,474.33 Regular price $0.00Unit price / perLow Stock — Only 7 Left
More info
- MSW AC power inverter with high surge capability
- Automatic 3-stage battery charger
- Temperature compensation with equalization stage provides optimal charging of deep cycle batteries
- Built-in transfer switch automatically transfers between inverter power and incoming AC power
- Power sharing prevents source AC input circuit breaker from tripping
- Customized settings can be programmed with the Freedom Basic Remote or Link 1000 panels
- Includes battery temperature sensor
- 30 month warranty
- Hardwired AC Output (Dual In/Dual Out)
- Over voltage and under voltage protection
- Over-temperature protection
- Overload protection
- Short circuit protection
- Charger Output - Amps: 130a
- Charging Banks: 1
- Inverter Output Voltage: 120v
- Inverter Input Voltage: 12v
- Charger Input - Voltage: 120v
- Outlet Qty: None
- Charger Output Voltage: 12v
- Inverter Cont. Output Wattage: 2500w
- Box Dimensions: 12"H x 15"W x 19"L WT: 61 lbs
- UPC: 647912105791
XantrexXantrex Freedom 458 Inverter/Charger - 2500W [81-2530-12]
Code: ORA-44873Brand: XantrexLow Stock — Only 7 Left(0)
Regular price $2,474.33Sale price $2,474.33 Regular price $0.00Unit price / perFree Shipping on $114+- MSW AC power inverter with high surge capability
- Automatic 3-stage battery charger
- Temperature compensation with equalization stage provides optimal charging of deep cycle batteries
- Built-in transfer switch automatically transfers between inverter power and incoming AC power
-
Free Shipping on $114+(0)
Regular price $838.04Sale price $838.04 Regular price $0.00Unit price / perLow Stock — Only 9 Left
More info
- Designed to power loads such as microwave ovens, TVs, DVD players, small appliances and other electronic equipment
- Removable digital display to provide system status
- Automatic three-stage battery charger
- Designed to be hardwired using a terminal strip, or by connecting AC through GFIC receptacles (Included)
- Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power
- Battery over-voltage and under-voltage protection
- Over-temperature shutdown
- Automatic overload protection
- Short-circuit protection
- Ground-fault protection
- ETL listed for use in mobile RV and marine applications
- Inverter Output Voltage: 120v
- Inverter Input Voltage: 12v
- Charger Input - Voltage: 120v
- Outlet Qty: 1 Duplex GFCI
- Charging Banks: 1
- Inverter Cont. Output Wattage: 1000w
- Charger Output Voltage: 12v
- Charger Output - Amps: 20a
- Box Dimensions: 6"H x 11"W x 18"L WT: 12.95 lbs
- UPC: 715535890414
XantrexXantrex Freedom HF 1000 Inverter/Charger [806-1020]
Code: ORA-32002Brand: XantrexLow Stock — Only 9 Left(0)
Regular price $838.04Sale price $838.04 Regular price $0.00Unit price / perFree Shipping on $114+- Designed to power loads such as microwave ovens, TVs, DVD players, small appliances and other electronic...
- Removable digital display to provide system status
- Automatic three-stage battery charger
- Designed to be hardwired using a terminal strip, or by connecting AC through GFIC receptacles (Included)
