Description

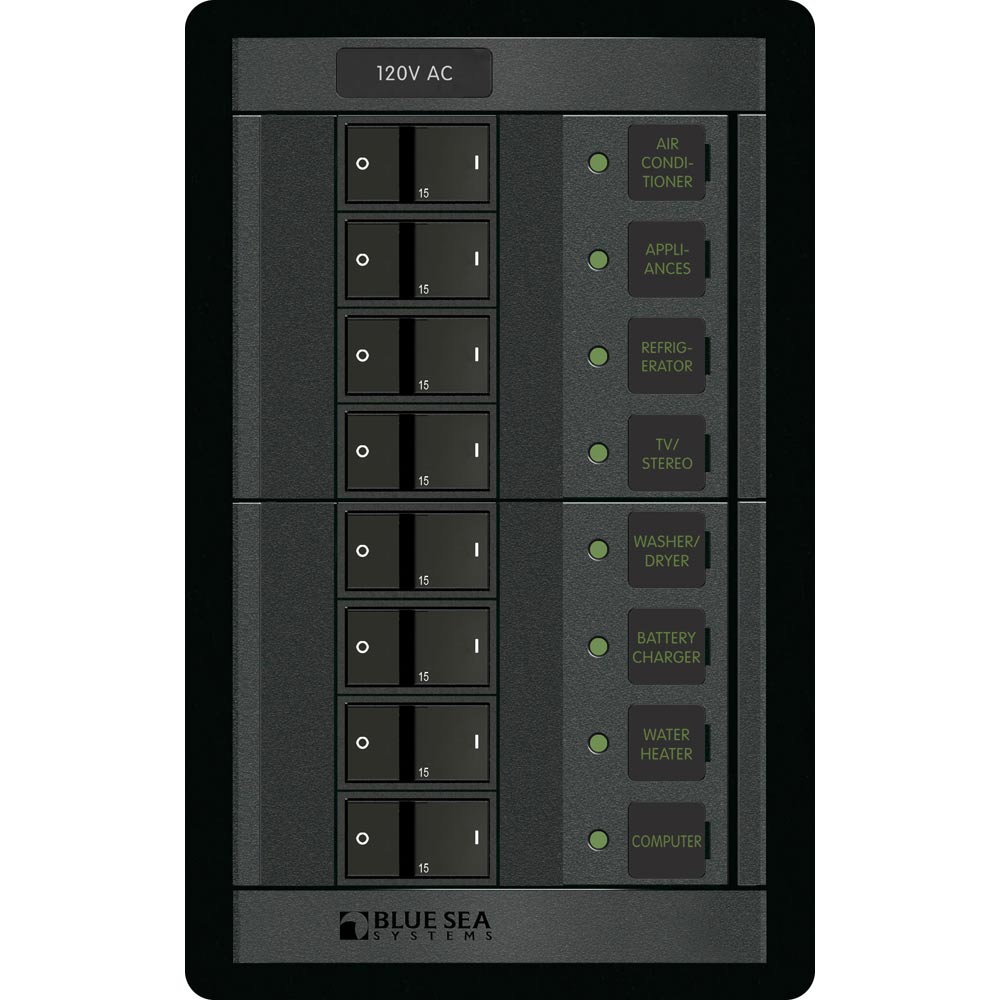

120 Volt AC 8 Position
Features:
- All circuit label positions are backlit
- "ON" indicating LEDs installed in all circuit positions
- Includes 4206-Square Format Label Set
Specifications:
-
Positions: 8
-
Nominal Voltage: 120V AC
-
Maximum Amperage*: 100A
-
Height: 7.75" (196.85mm)
-
Width: 4.88" (123.95mm)
-
Depth: 3.00" (76.2mm)
- Weight: 2.68lb (1.22kg)
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(8) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4206 - Basic AC Label Kit - 30 Black Square Labels [LABEL]
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AC/DC: AC
- Box Dimensions: 5"H x 7"W x 12"L WT: 2.6 lbs
- UPC: 632085012281
Quick Guide (pdf)
Owner's Manual (pdf)
