Description

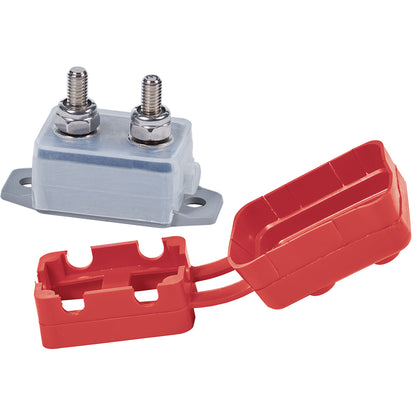

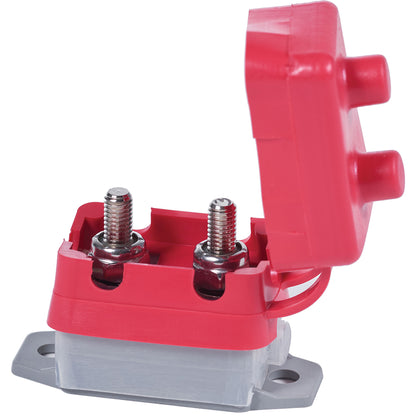

7156 Short Stop Circuit Breaker - 40A
- Corrosion Resistant Material
- IP 64 Water Resistant Boot
- Push to Reset Only
- Interrupt Capacity: 2,500A @ 28VDC
- Red insulating boot included in retail package
Specifications
- Amperage: 40A DC
- Maximum Voltage: 28V DC
- Interrupt Capacity: 2500A @ 28V DC
- Minimum Operating Temperature: -10º C
- Maximum Operating Temperature: 60º C
- Screw Terminal Torque: 24 in-lb (2.71 Nm)
- Terminal Stud: #10-32"
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Amperage: 40a
- Box Dimensions: 2"H x 3"W x 7"L WT: 0.1 lbs
- UPC: 632085071561
