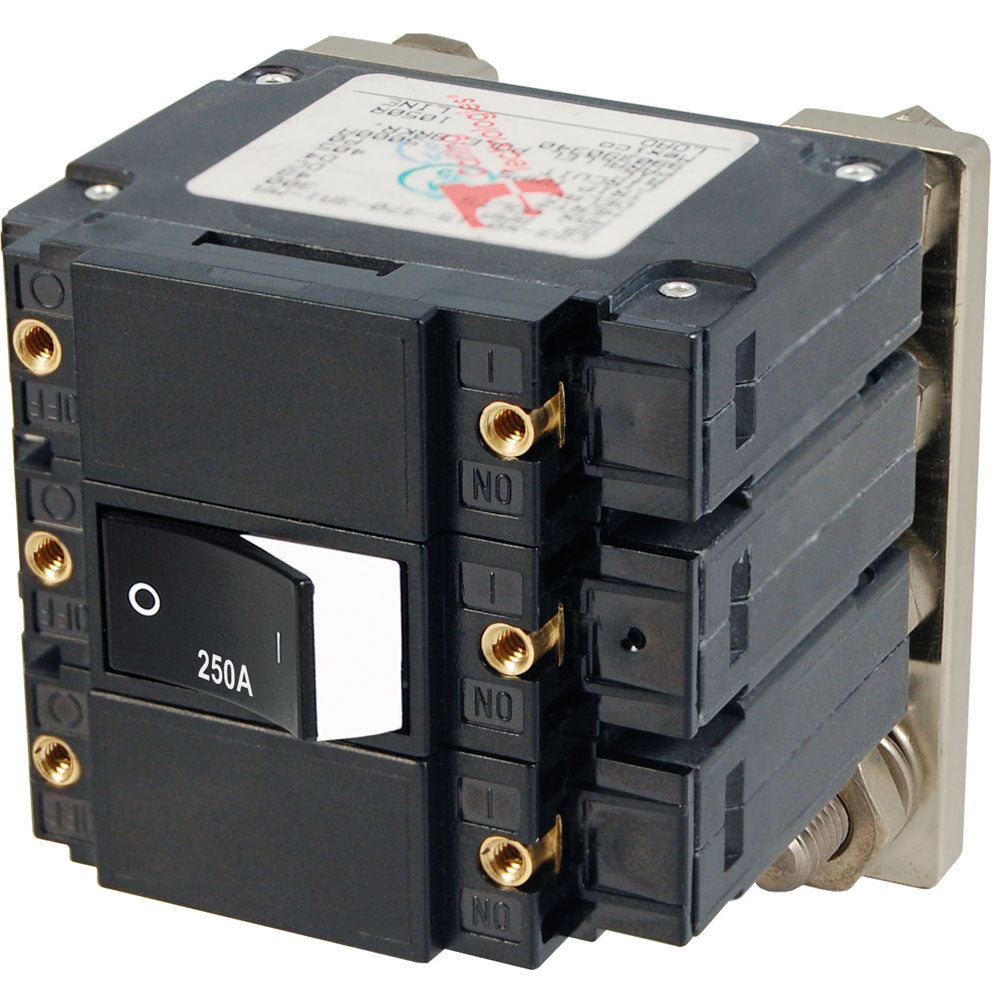

Blue Sea 7477 C - Series Flat Circuit Breaker, Single and Double Pole - 250 Amp [7477]
Regular price
$361.99
Sale price
$361.99
Regular price
$0.00
Unit price
per
Sale
Sold out
Shipping calculated at checkout.
Only 2 units left
Secure checkout with
Payment methods
Couldn't load pickup availability
- SAME DAY SHIPPING BY 4PM EST
- 3 YEAR PRODUCT WARRANTY
- 30 DAY EASY RETURN POLICY
C - Series Flat Circuit Breaker, Single and Double Pole
PN: 7477
Amperage: 250 Amp
Features:
- Color actuator indicates "OFF" position
- "Trip Free" design cannot be held "ON" during fault current condition
- Flat actuator protects against accidental switching
| Specifications | |
| Circuit Breaker Type | Magnetic Hydraulic - Trip Free |
| Maximum Voltage | 80 Volts DC |
| Rated Switch Cycles | 10,000@rated amperage and voltage |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Amperage: 250a
- Box Dimensions: 4"H x 5"W x 6"L WT: 1.35 lbs
- UPC: 632085074777
