Description

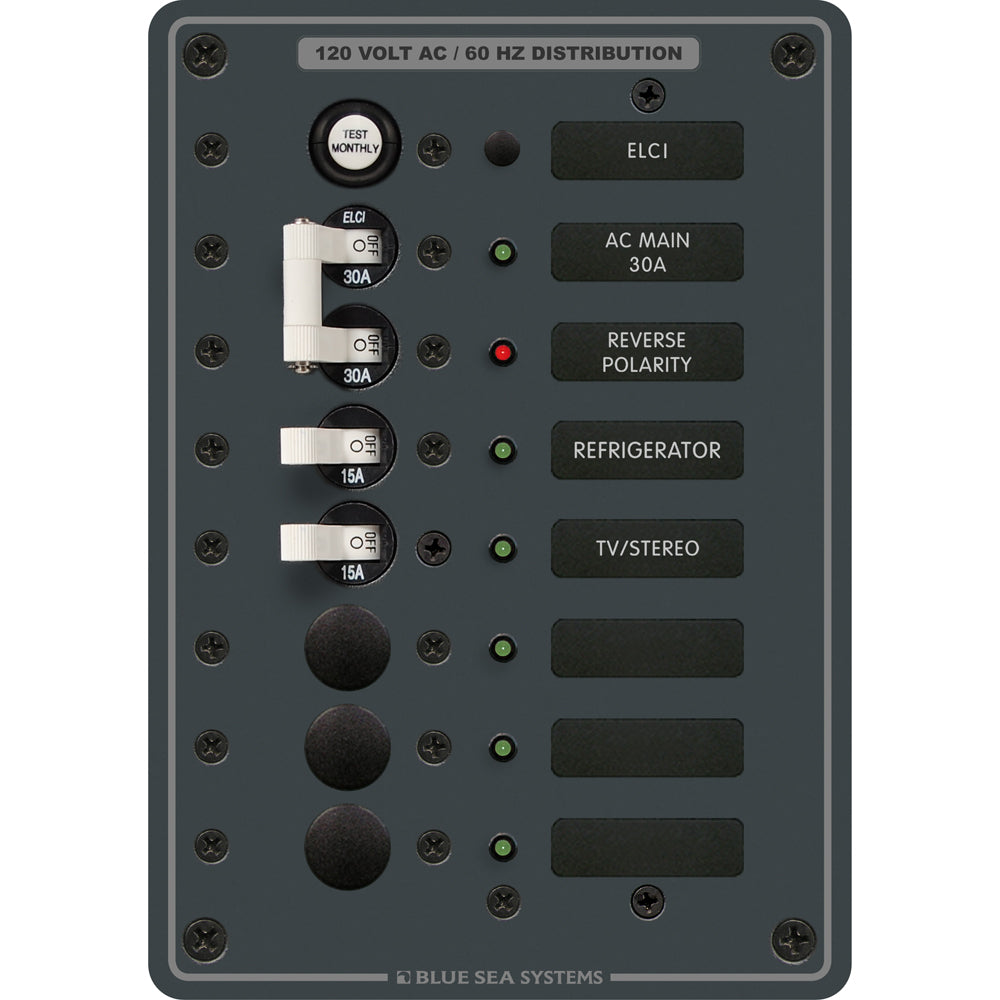

ELCI Main 30A Double Pole + 2 Positions
- One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
- ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
- Red " Reverse Polarity" LED
- All circuit label positions are backlit
- "ON" indicating LEDs
Specifications
Positions 5
Nominal Voltage 120V AC
Leakage Trip Amps 30mA
Height 5.25" (133.35mm)
Width 7.50" (190.5mm)
Depth 3.50" (88.9mm)
Weight 2.25lb (1.02kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AC/DC: AC
- Max Breaker Quantity: 5
- Voltage: 120v
- Box Dimensions: 5"H x 9"W x 12"L WT: 2.55 lbs
- UPC: 632085081010
Quick Guide (pdf)
Owner's Manual (pdf)
