Description

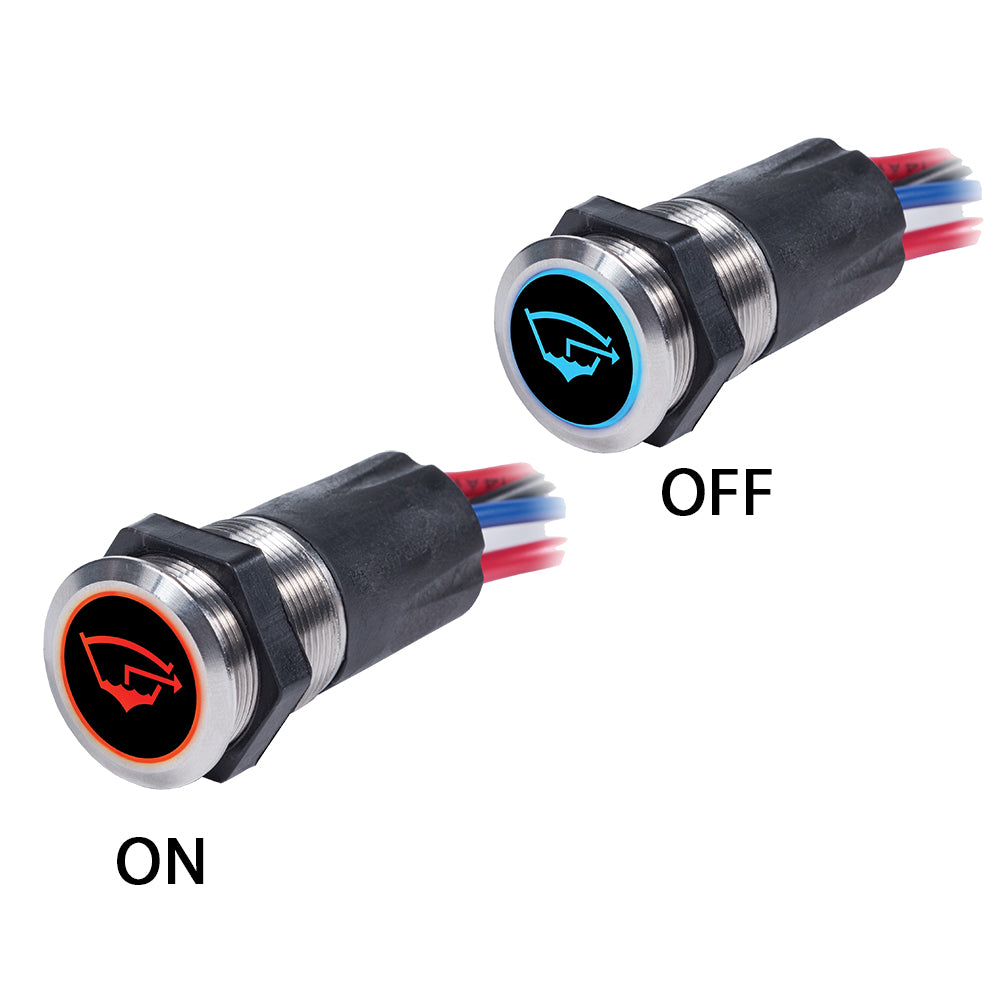

4181 Backlit Push Button Switch OFF/(ON) - 15A
Features:
- Backlit button is blue when OFF and red when ON
- Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
- Additional 50 ICON label kit sold separately
Specifications:
- Action: OFF-(ON)
- Amperage: 15A @ 12V DC
- Nominal Voltage: 12V DC
- Maximum Voltage: 15V DC
- Maximum LED Operating Current: 20mA
- Switching Cycles: 10,000
- Temperature Range: -20°C to 55°C
- Termination: 3" - Bare Wire Pigtail
- Wire Size: Black & Blue Wires 18 AWG / Red & Red/White Wires 14AWG
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Color: Stainless
- Action: (On)/Off
- Box Dimensions: 2"H x 3"W x 10"L WT: 0.15 lbs
- UPC: 632085041816
