Description

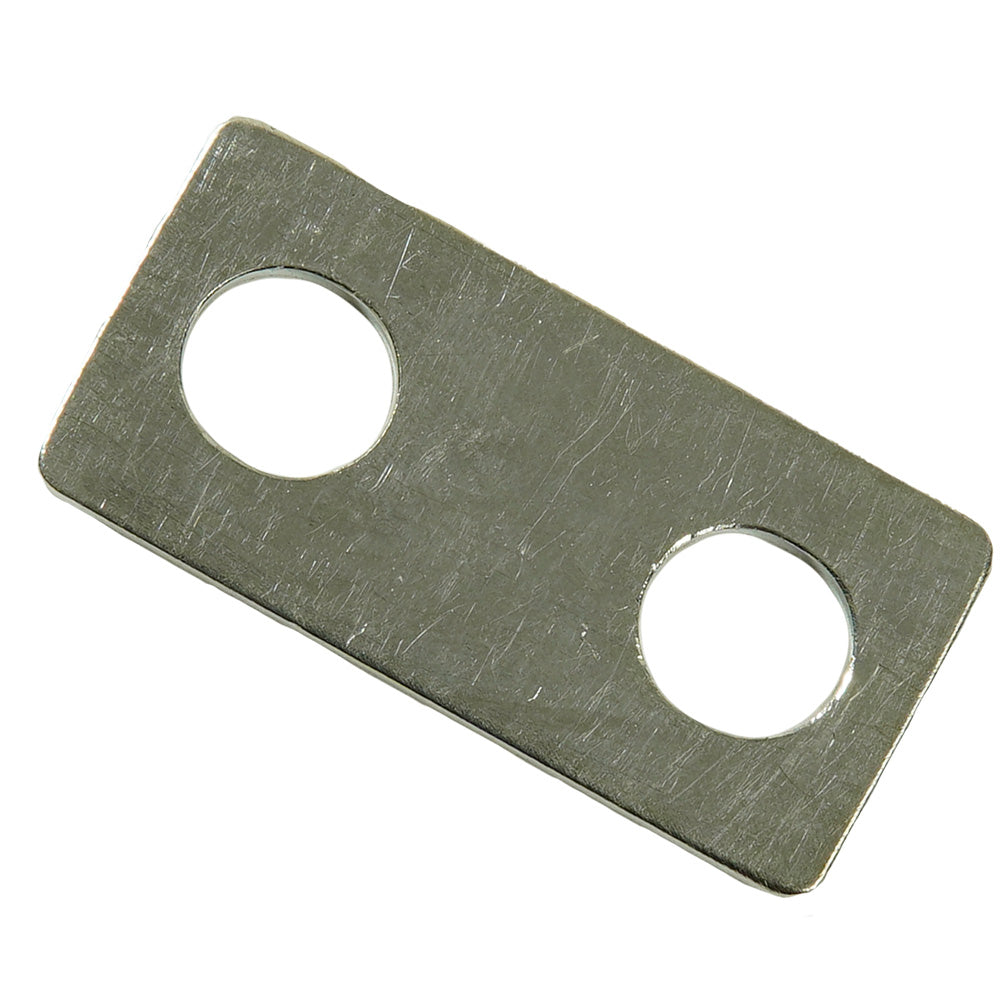

XD Relay Link Busbar
This tin-plated copper is to ensure reliable circuit connectivity and an anti-corrosive feature that will keep it long-lasting.
Applications
Link Together XD Single, Dual, and Triple XD relays to each other in multiple configurations and even to Egis's 8700 Mechanical Disconnect. Linking relays together creates compact installations and allows for robust circuit switching and battery management.
Features:
- Great electrical conductivity with anti-corrosion tin plating keeps connections reliable
- This bus bar is tough and built to withstand high amperage loads and resist deformation from nut-tightening
- Save install space by linking XD Relays together for even more capability and maintain a professional-looking install
Specifications:
- Continuous Current (Amps): 500
- Max Voltage (VDC): 72
- Material: Tin-plated copper
- Size (L x W): 47.8mm x 22.8mm
- Thickness: 2.8mm (1/8”)
- Terminal Stud Hole Size: 10.5mm (3/8”)
