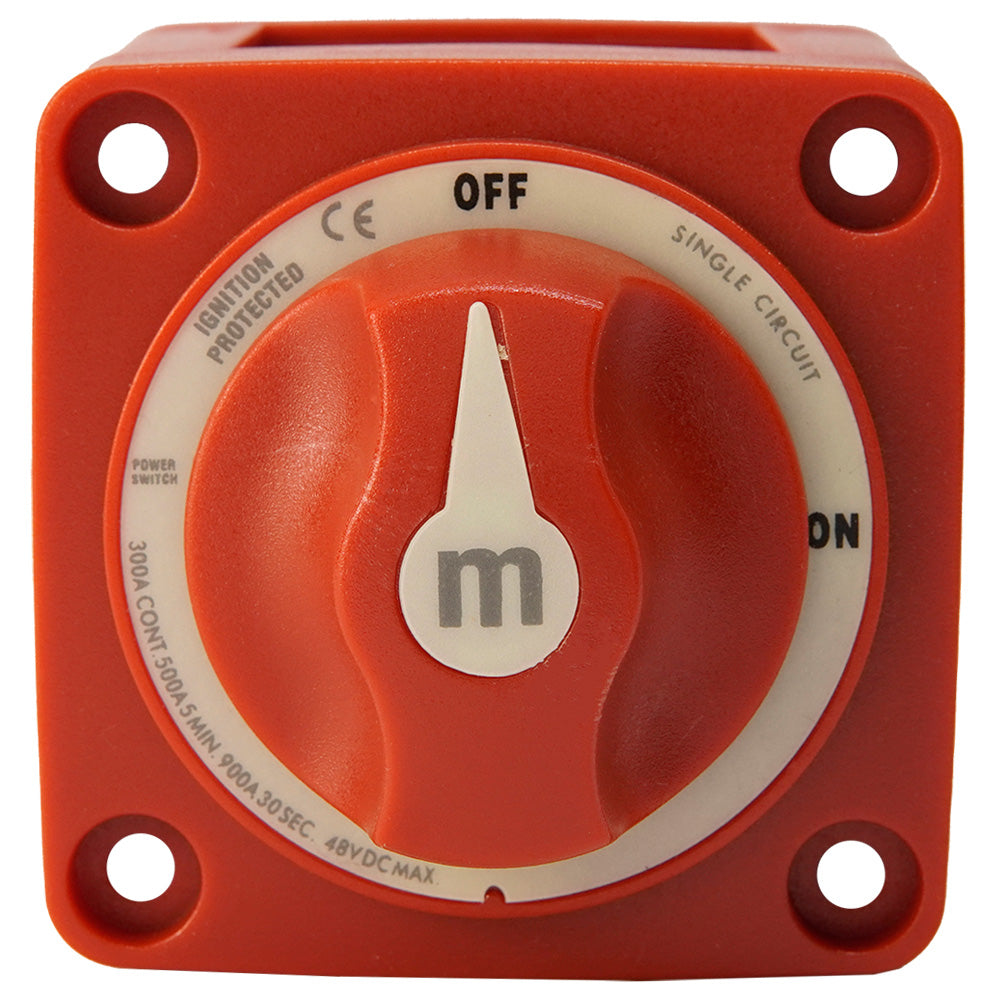

Egis M-Series 300A Battery Switch Off/On Knob Actuator [2306]
Regular price
$35.70
Sale price
$35.70
Regular price
Unit price
/
per
Sale
Sold out
Shipping calculated at checkout.
Only 4 units left
Secure checkout with
Payment methods
Couldn't load pickup availability
Free Shipping $199+
30-Day Returns
In Stock
-
Vendor:
Egis Mobile Electric
-
Type:
Battery Management
Description
M-Series 300A Battery Switch Off/On Knob Actuator
Sealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.
Ignition Protected - Safe for installation in closed compartments with potential explosive gases.
Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.
Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.
Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.
Specifications:
- Maximum Voltage (Single Circuit): 48 Vdc
- Maximum Voltage (Selector / Dual Circuit): 32 Vdc
- Stud Size And Thread: 3/8”-16
- Terminal Stud Torque: 120 in-lbs (13.6 N-m)
- Ring Terminal Size Acceptance: 3/8” (M10)
- Mounting Holes: #10 Screw
- Live Switching Rating: 25 Amps
- Ignition Protection Rating: SAE J1171 / ISO 8846
- Bulkhead / Panel - Mounting Hole Size: 2-5/8" / 2-5/16"
- Cable Size to Meet Rating: 4/0 AWG
