Newmar ACCY-IX Blank Panel [ACCY-IX]
Couldn't load pickup availability
-
Vendor:
Newmar Power
-
Type:
Electrical Panels
Description

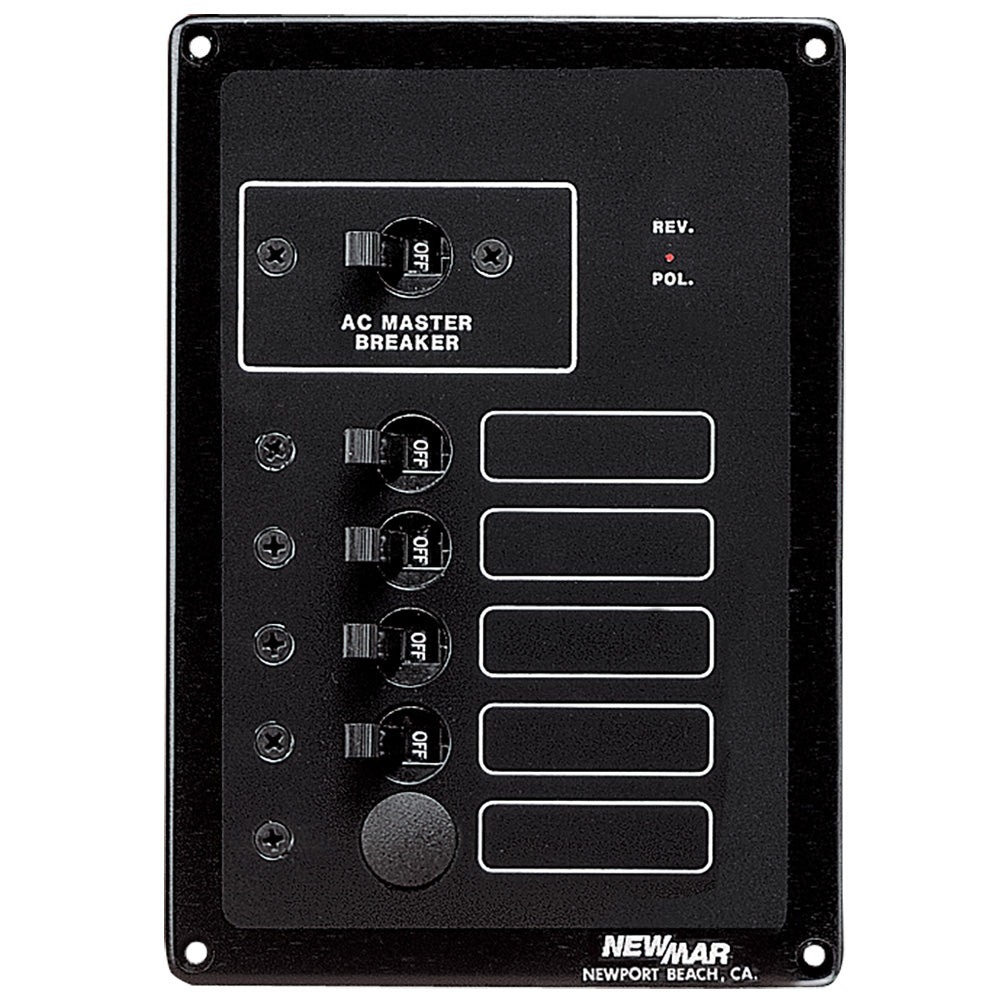

ACCY-IX Blank Panel
This versatile panel is ideal when only a limited number of electrical circuits are needed or for larger systems where their modular design makes for an easy and attractive expansion of existing system capacity.
Stock panels with breakers installed come standard with DC indicator lights but may be specially ordered with AC indicator lights. Blank versions of the panels have all the necessary hardware to install indicator lights and breakers. All panels are provided with a circuit identification label set of 22 common on-board electrical functions.
ACCY-IX has an 8-breaker capacity, with 5 installed standard; 2-5A, 1-10A, 1-15A, 1-20A, or specify. 8 DC circuit “ON” indicator lights installed, and AC indicator lights installed on a special order basis. LS-1 label set is included.
Specifications:
- Cut-Out Dimensions: 4 x 6 inches (10.2 x 15.2 centimeters)
- Weight: 2 lbs.
Specifications:
- Max Breaker Quantity: 8
- Box Dimensions: 6"H x 8"W x 12"L WT: 2.2 lbs
