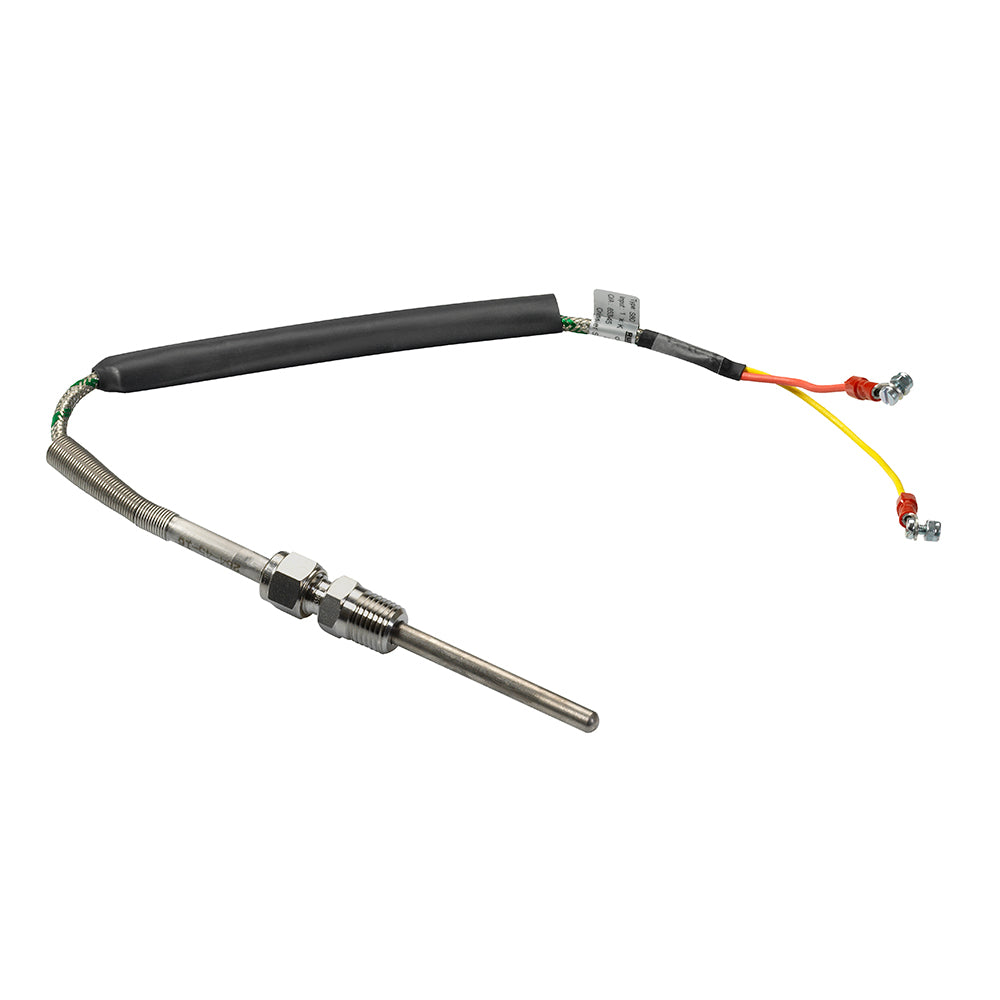

Pyrometer Sensor - 100-900°C/250-1650°F

Pyrometer sensor used in conjunction with LinkUp Gateway Module.

Features:

  • Plug-and-Play installation and configuration
  • NMEA 2000® certified

Technical Specifications:

  • Temperature medium - Exhaust gas - Coolant - Water - Air - Engine oil - Transmission oil - Fuel
  • Input Signal - LIN bus
  • Operating Voltage - 6 - 24 VDC
  • Pyrometer Sensor
  • Thermocoupler Element
  • Measurement Range - 100-900°C/250-1650°F
  • Communication - Analog
  • Signal Output - 0 - 37 MV TC
  • Sensor Connector - Ring Tongue
  • Thread - R 1/4" Male
  • Warning Contact - None
  • Connector Type - Kabeloog

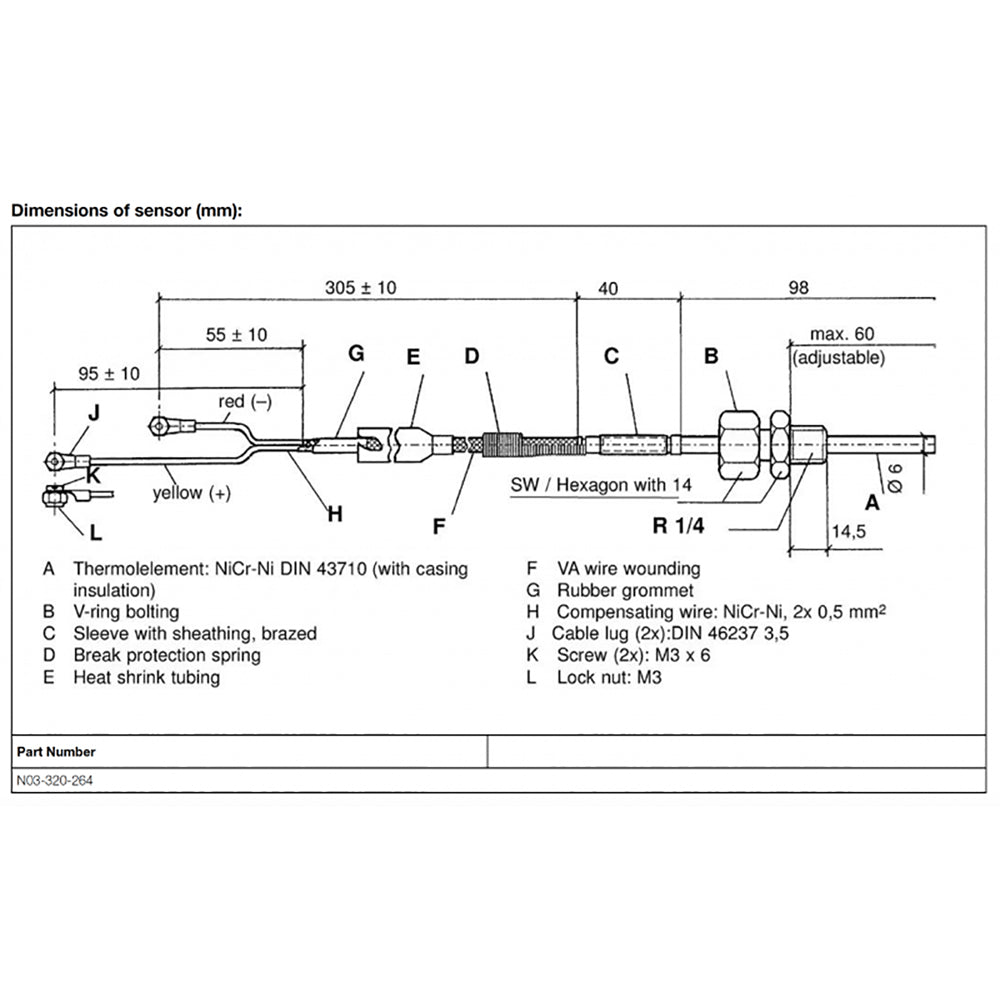

  • Sender element length + thread (L) - Adjustable maximal 60 mm
  • Sensor diameter - 6 mm
  • Torque - 20 Nm

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Diameter (mm): N/A
  • Diameter (Inches): N/A
  • Color: Black
  • Box Dimensions: 1"H x 4"W x 16"L WT: 0.15 lbs
