BEP Distribution Cluster f/Single Engine w/Two Battery Banks [714-140A-DVSR]

• Lockable: No
• Positions: 3
• Continuous Amperage: 140a
• Box Dimensions: 4"H x 4"W x 10"L WT: 1.15 lbs

BEP DPDT Chrome Plated Toggle Switch - (ON)/OFF/(ON) [1002012]

• Nominal voltage is 12V/24V DC
• Rated for 25A at 12V DC, 15A at 24V DC
• Six #6-32 screw terminals
• Mounting stem 15/32" fits panels up to 1/4" thick

BEP DPDT Chrome Plated Toggle Switch - ON/OFF/ON [1002018]

• Nominal voltage is 12V/24V DC
• Rated for 25A at 12V DC, 15A at 24V DC
• Six #6-32 screw terminals
• Mounting stem 15/32" fits panels up to 1/4" thick

BEP DPDT Contura Switch - 1-Amber LED - ON/OFF/(ON) [1001807]

• Nominal voltage 12V/24V DC
• Rated for 20A at 12V DC, 15A at 24V DC. 1/4" blade terminals
• Includes one Amber LED
• Snap-in mounting to fit panel hole 1.45" x .83" into panels .093" to .187" thick

BEP DPDT Contura Switch - 2-Amber LEDs - ON/OFF/ON [1001808]

• Nominal voltage 12V/24V DC
• Rated for 20A at 12V DC, 15A at 24V DC
• 1/4" blade terminals
• Includes two Amber LEDs

BEP DPDT Rocker Switch - 12V/24V - (ON)/OFF/(ON) [1001713]

• Nominal voltage is 12V DC
• Rated for 25A at 12V DC
• Six 1/4" blade terminals
• Snap-in mounting to fit panel hole 1.45" x .83" into panels .093" to .187" thick

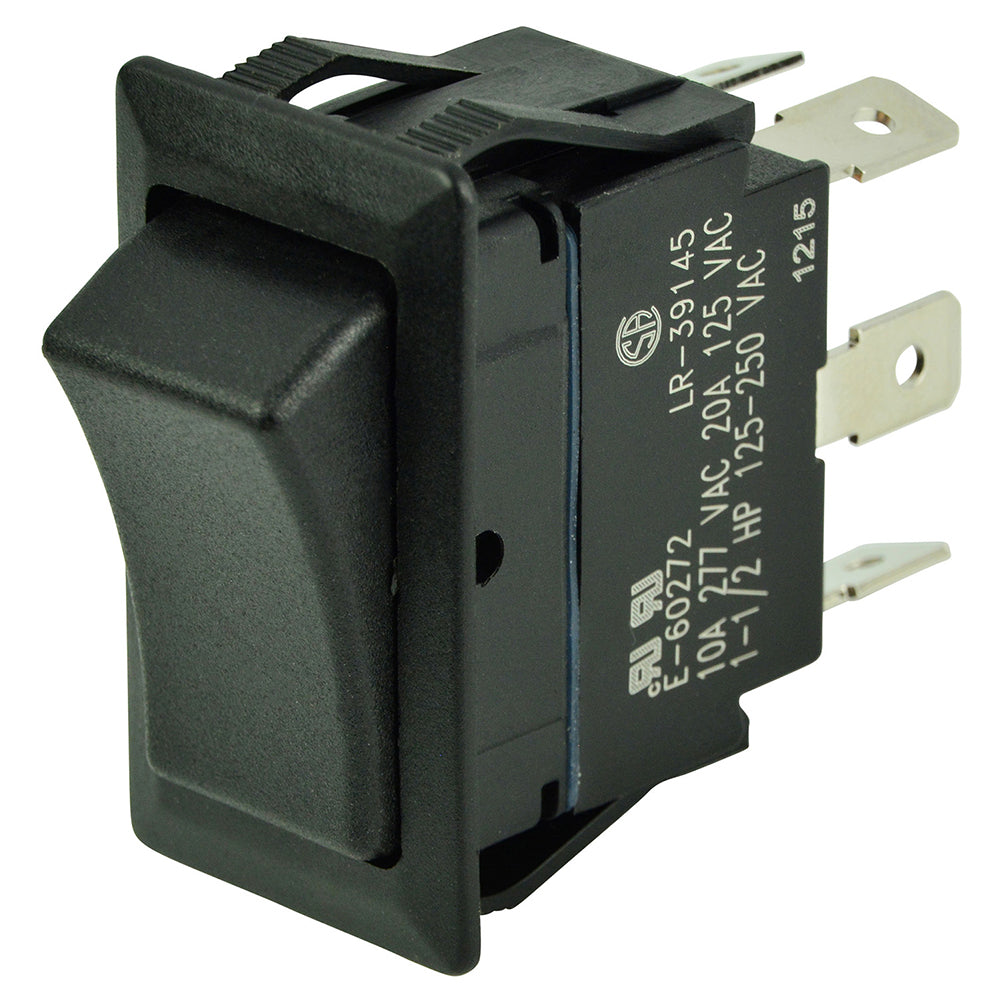

BEP DPDT Rocker Switch - 12V/24V - ON/OFF/ON [1001712]

• Nominal voltage is 12V DC
• Rated for 25A at 12V DC
• Six 1/4" blade terminals
• Snap-in mounting to fit panel hole 1.45" x .83" into panels .093" to .187" thick

BEP DPDT Toggle Switch - ON/OFF/ON [1001905]

• Nominal voltage is 12V DC
• Rated for 25A at 12V DC
• Six 1/4" blade terminals
• Mounting stem 15/32" fits panels up to 1/8" thick

BEP DPST Contura Switch - 1-Amber LED - OFF/ON [1001811]

• Nominal voltage 12V/24V DC
• Rated for 20A at 12V DC, 15A at 24V DC
• 1/4" blade terminals
• Includes one Amber LED

BEP Dual Operation VSS Switch Cont Motorized - 12V - 275A [701-MDVS]

• Dual battery sensing
• Manual override option
• Low power consumption (<6mA)
• Volts - 12V

BEP Easy Fit Battery Switch - 275A Continuous [700]

• Can easily be retro-fitted in place of most European post and lever type switches
• Molded in high temperature, fiber reinforced plastics
• Tin-plated copper studs and nuts
• Ignition-protected

BEP Electronic Dimmer Switch w/Wire Leads - 7A @ 12V DC [1002102]

• Nominal voltage is 12V DC
• Rated for 7A at 12V DC
• 2" 16 AWG wire lead terminals
• 7/16" mounting hole, fits panels 1/4" thick

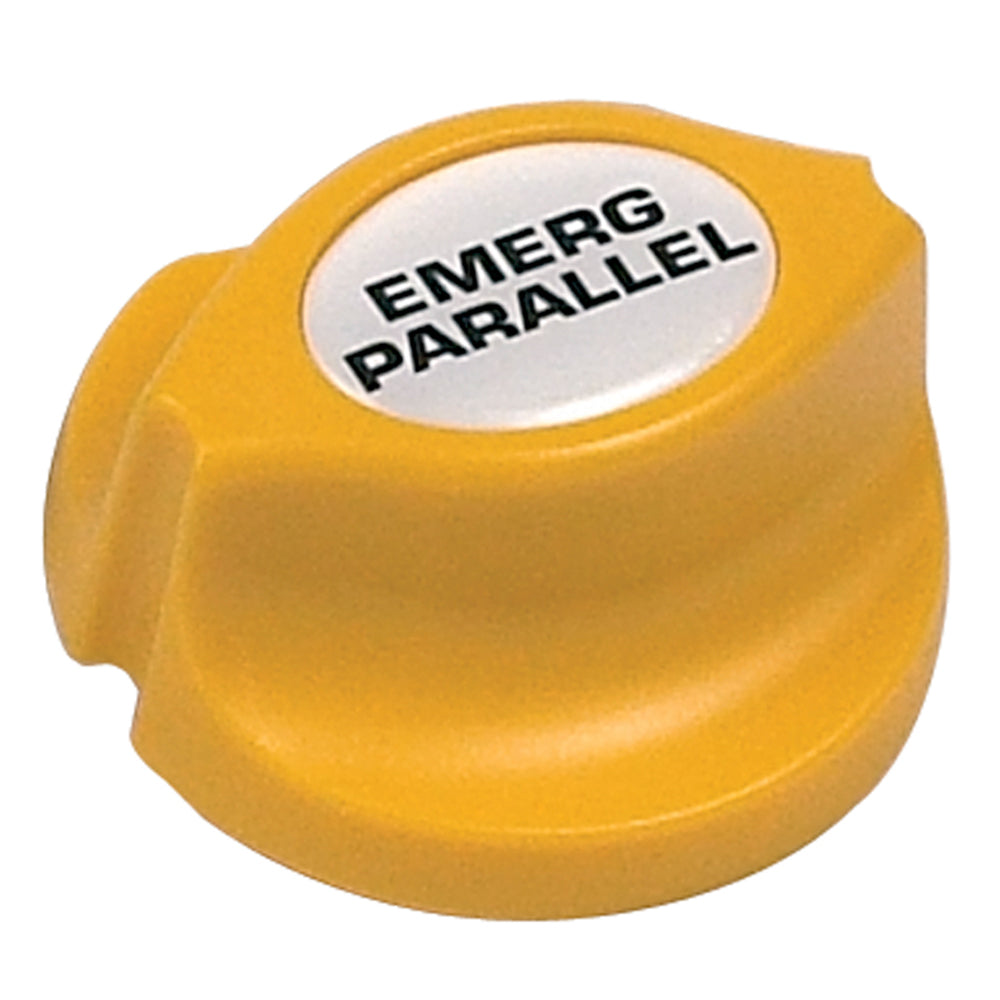

BEP Emergency Parallel Battery Knob - Yellow - Easy Fit [701-KEY-EP]

• Order separately
• Replaces existing knob

BEP Emergency Parallel Switch - 12/24V - 275A [80-701-0018-00]

• 12/24 volt operation (both battery banks must be same voltage)
• Manual override option
• 10 minute remotely activated emergency parallel function (no voltage sensitive function)
• Volts - 12/24V

BEP Emergency Parallel Switch - 12/24V - 500A [720-MDO-EP]

• 12/24 volt operation (both battery banks must be same voltage)
• Manual override option
• 10 minute remotely activated emergency parallel function (no voltage sensitive function)
• Volts - 12/24V

BEP Heavy Duty CB Module - 80A [705-80A]

• Allows switchable protection for heavy duty circuits like windlasses or davit winches
• Modular sizing with contour lock molding allows easy grouping
• Amperage: 80a
• Box Dimensions: 3"H x 4"W x 9"L WT: 0.6 lbs

BEP Heavy-Duty Battery Switch - 600A Continuous [720]

• The 720 Heavy-duty Battery Switch is well suited to larger vessels, being capable of handling the...
• RV's plus starting large diesel engines
• Rated at 600A continuous and 2500A cranking
• Can be rear panel, or surface mounted

BEP Horizontal Battery Distribution Cluster f/Single Engine w/Two Battery Banks [716-H-140A-DVSR]

• No more flat start batteries
• Electronics protection from harmful engine start spikes
• The 716 cluster is for use on charging systems up to 150A
• The 716 cluster replaces battery isolator systems

BEP Illuminated SPST Rocker Switch - Red LED - 12V - OFF/ON [1001705]

• Nominal voltage of 12V DC
• Rated for 10A at 12V DC
• Switches snap-in mounting holes .55" x 1.13", fits panels .02" to .25" thick
• Black plastic body with clear plastic rocker that illuminates red when ON

BEP Kill Switch Lanyard [1001601]

• Nominal voltage is 12V/24V DC
• Rated for 10A at 12V DC
• 7" 16 AWG wire leads for terminals
• Same as Cole Hersee part number M-597

BEP Kill Switch Replacement Lanyard [1001602]

Kill Switch Replacement LanyardReplacement lanyard and disconnect clipWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is...

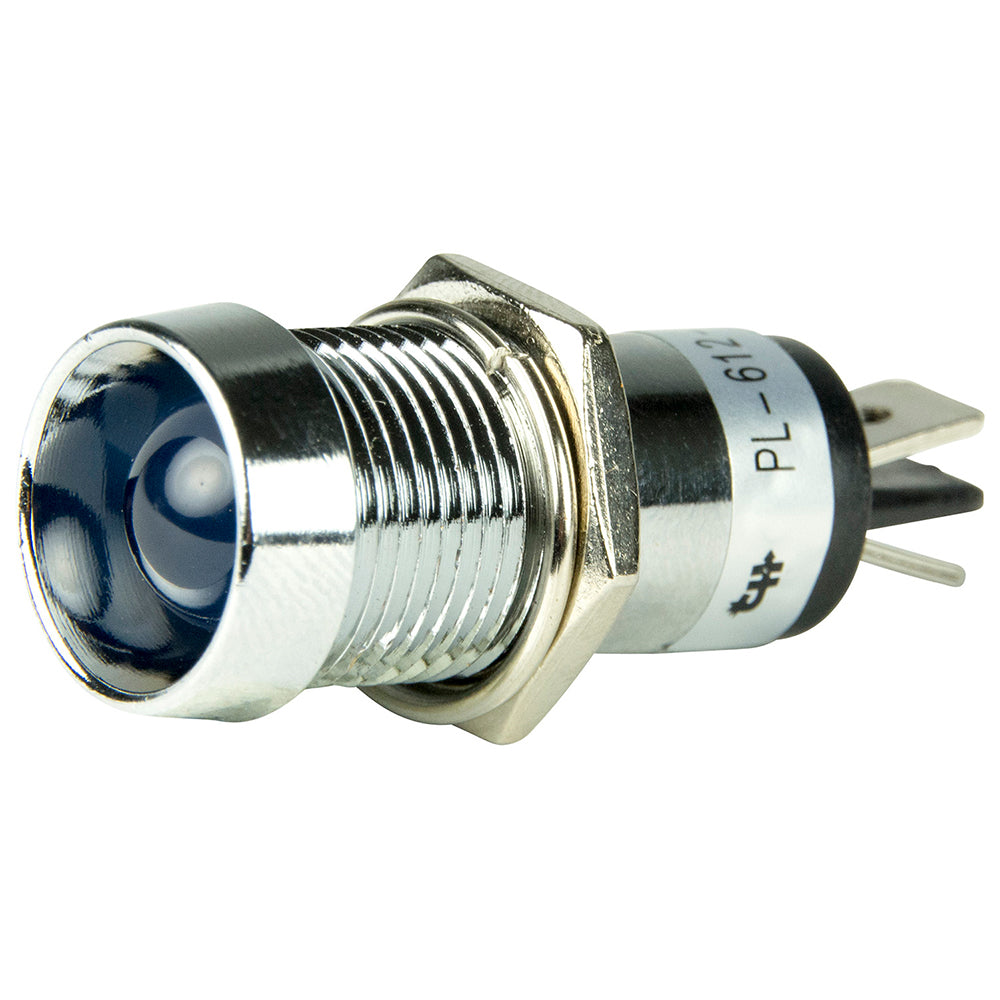

BEP LED Pilot Indicator Light - 12V - Blue [1001102]

• Bright chrome-plated body, bezel, washer and hexnut
• Quick connect terminals are polarized for ease of wiring
• Mounts into a 9/16" hole, fits panel thickness of 3/16" through 9/32"
• Compares to Cole Hersee part number PL-612-B-BP

BEP LED Pilot Indicator Light - 12V - Green [1001103]

• Bright chrome-plated body, bezel, washer and hexnut
• Quick connect terminals are polarized for ease of wiring
• Mounts into a 9/16" hole, fits panel thickness of 3/16" through 9/32"
• Compares to Cole Hersee part number PL-612-G-BP

BEP LED Pilot Indicator Light - 12V - Red [1001104]

• Bright chrome-plated body, bezel, washer and hexnut
• Quick connect terminals are polarized for ease of wiring
• Mounts into a 9/16" hole, fits panel thickness of 3/16" through 9/32"
• Compares to Cole Hersee part number PL-612-R-BP
