Description

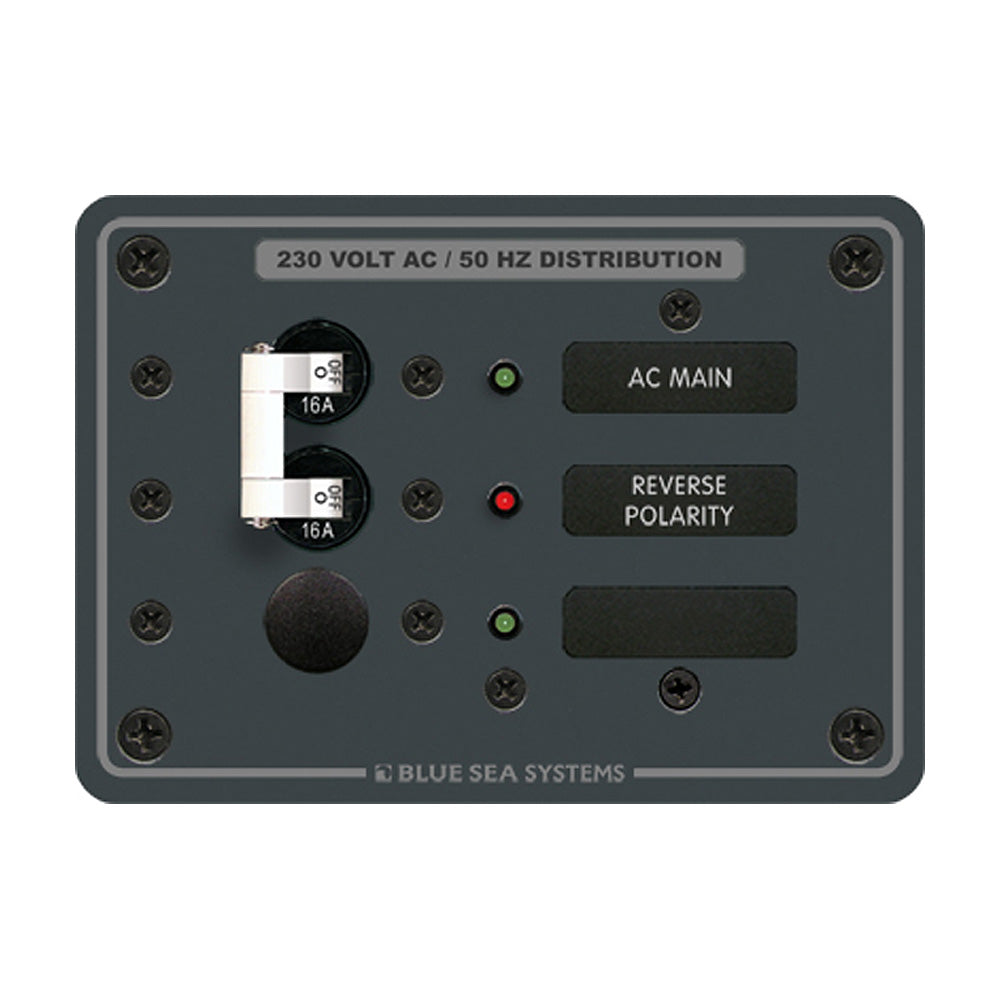

230V AC Main + Branch A-Series Toggle Circuit Breaker Panel
PN: 8129
White Switches
Features:
- 230V
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- Maximum panel amperage - 50 Amperes
- MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Industry standard height and width
- Countersunk mounting holes throughout
- Detailed installation instructions and cutout template included
- Includes set of 30 common Large Format Labels
- Over 500 individual Labels available
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Max Breaker Quantity: 1
- AC/DC: AC
- Voltage: 230v
- Box Dimensions: 4"H x 8"W x 9"L WT: 1 lbs
- UPC: 632085081294
Quick Guide (pdf)
Owner's Manual (pdf)
