Description

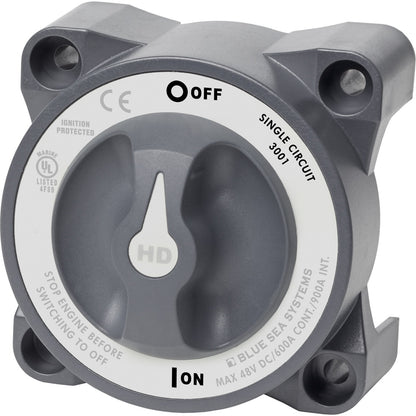

3001 HD-Series Battery Switch Single Circuit ON/OFF with AFD
Features:
- 600 Ampere Continuous Rating
- Accepts two 4/0 battery cables per terminal
- Ignition protected - safe for installation aboard gasoline powered boats
- .870" (22.01mm) stud length to accept multiple cable terminals

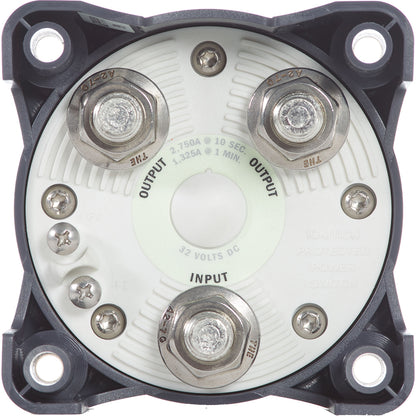

- 1/2" (M12) Tin-plated copper studs for maximum conductivity and corrosion resistance
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- Tactile textures indicate knob position by feel only

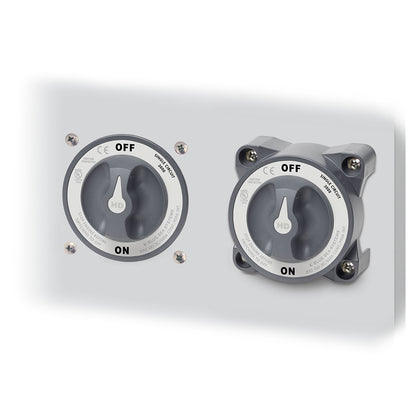

- Case design allows surface or rear panel mounting
- Fits all Perko and Guest low amperage battery switch hole patterns
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Positions: 2
- AFD: Yes
- Continuous Amperage: 900a
- Box Dimensions: 3"H x 7"W x 9"L WT: 1.3 lbs
- UPC: 632085030018
Owner's Manual (pdf)
