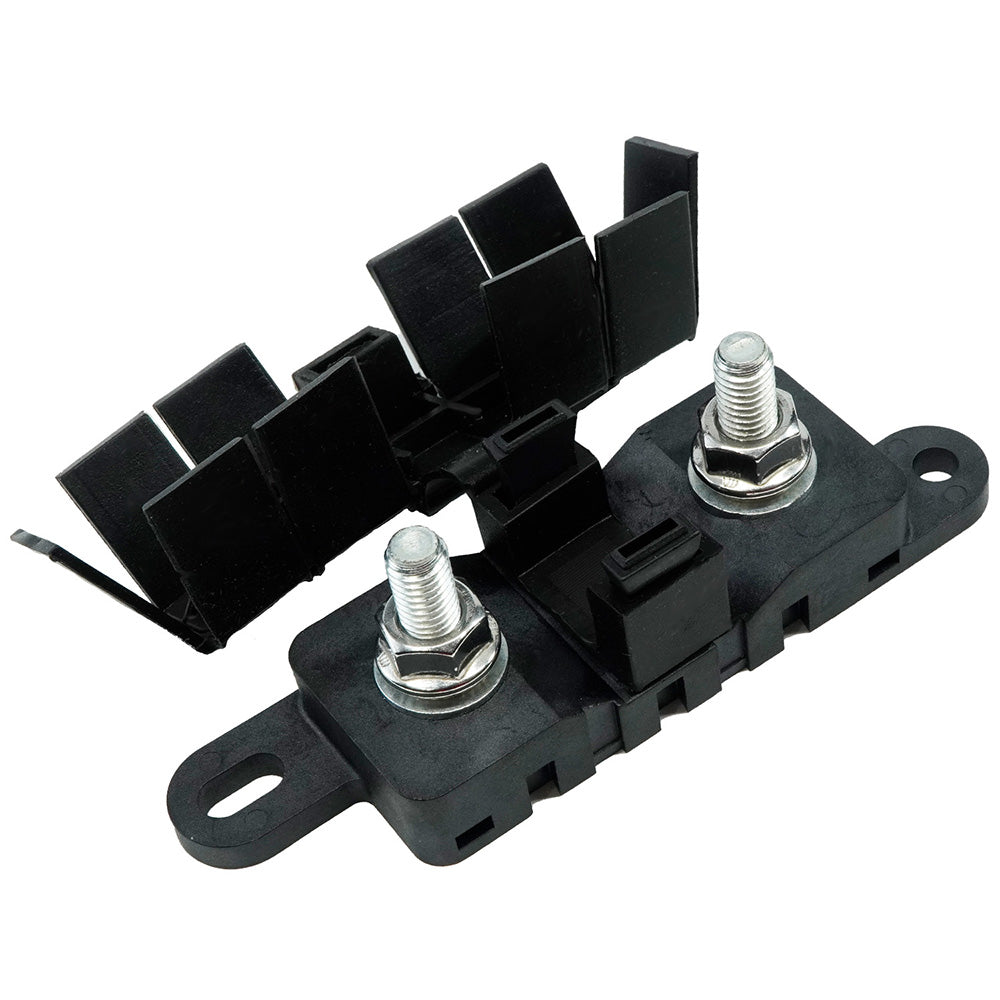

Egis Mega Fuse Block M8 Stainless Self-Locking Hardware w/Black Cover [3820]

Mega Fuse Block M8 Stainless Self-Locking Hardware with Black Cover

Features:

• Designed for Harsh Environments with a high-temperature composite base and stainless-steel stud and nut hardware for maximum protection from corrosion.
• 58 Max Vdc Rating easily supports 12, 24, 36, and 48 nominal Vdc systems.
• Flexible Protective Cover ensures full 360-degree access for cables/terminals to attach to fuse studs, while preventing inadvertent short circuits.
• Serrated Flange Lock Nuts improve resistance to cable terminal loosening in high-vibration environments.
• Stackable Side by Side design via interlocking dovetail features in the composite base.
• Supports Common Input Busbars when stacked side-by-side due to longer input stud lengths.
• Wire Tie Slots in Base allow optional secure tie-wrap mounting.

Specifications:

• Type: Fuse Blocks
• Box Dimensions: 4"H x 5"W x 7"L WT: 0.4 lbs
• UPC: 850053879968
