Faria Euro Black 4" Tachometer w/Systemcheck 7000 RPM (Gas) f/

Euro Black 4" Tachometer w/Systemcheck 7000 RPM (Gas) f/ Johnson / Evinrude Outboard)

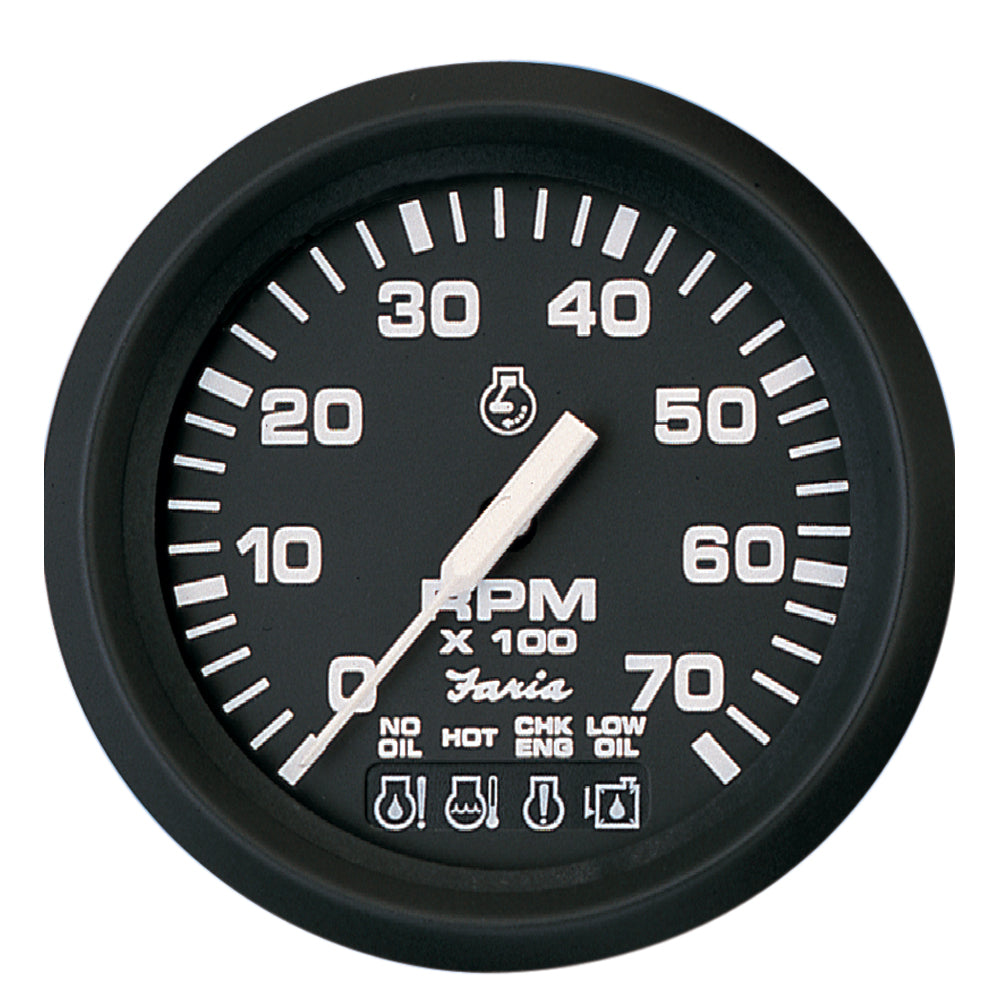

Perimeter-lighted Black dial with bold White graphics, Black aluminum bezel, contoured White pointer and flat glass lens.

Electronic tachometers work by counting pulses generated by the ingition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed above.

By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution.

These tachometers have a warning light system built into the dial that show off warning indicators when a fault is detected from the engine.

4" - Hole size: 3.375" (85mm)

For Engine Types:

• Johnson and Envinrude Outboard

SystemCheck Warnings:

• No Oil
• Engine Overheat
• Check Engine
• Low Oil

Specifications:

• Anti-scratch glass lens
• Plastic Cases for corrosion resistance and long life
• Perimeter-lighted Black dial
• Can be adapted for 24 VDC systems

Factory P/N TC9951

*Sold as an Individual

**Gauge Cover not Included

Specifications:

• Gauge Type: Tachometer w/System Check
• Series: Euro Black
• Voltage - Input Range (Volts): 12/24 V
• Gauge Size: 4"
• Box Set: No
• Box Dimensions: 5"H x 6"W x 6"L WT: 0.7 lbs
• UPC: 759266328501
