Description

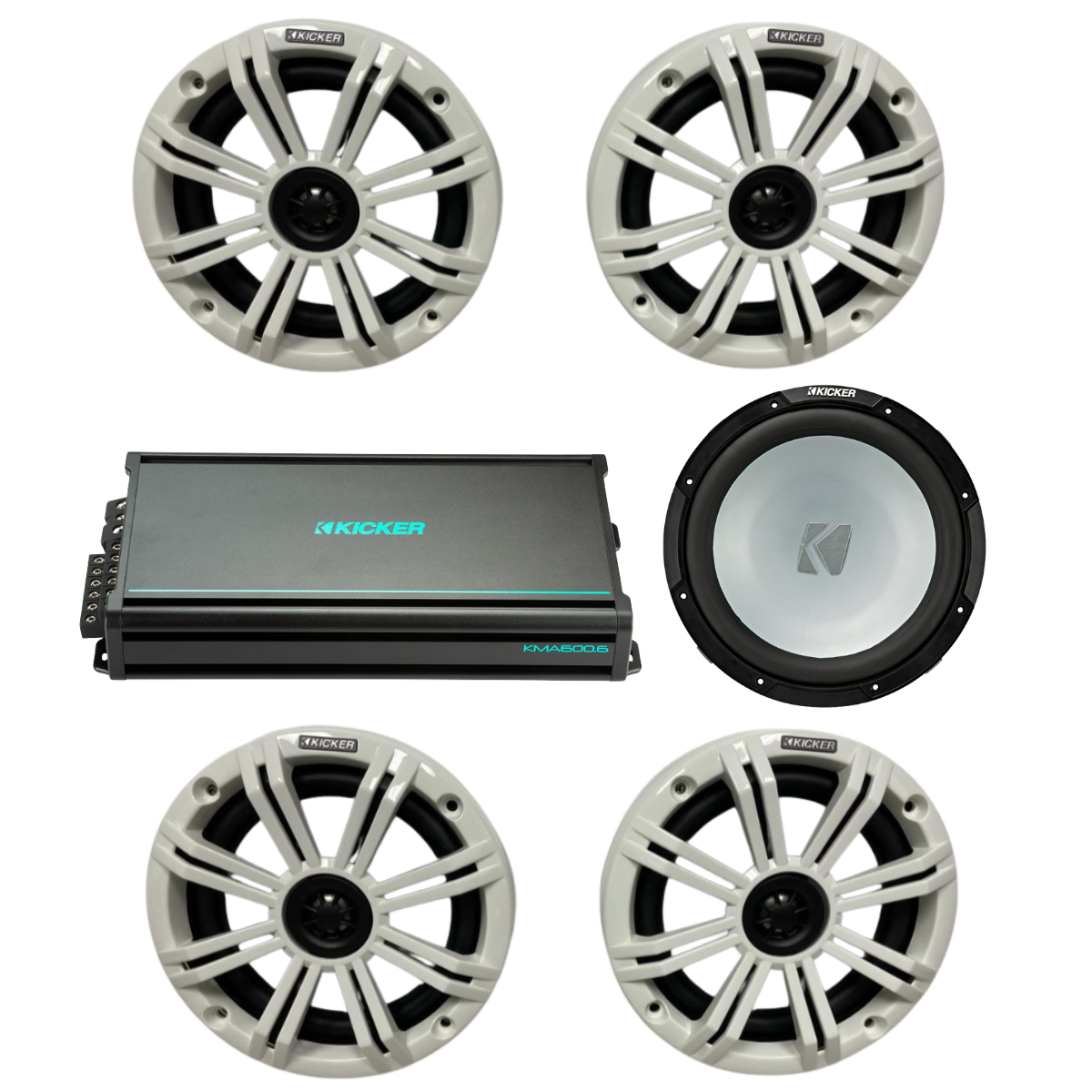

Package of:
-
(4) Kicker 6.5" Marine Coaxial Speakers
▸ Model: 45KM654
▸ Charcoal & White Grilles Included -
(1) Kicker 6-Channel Marine Amplifier
▸ Model: 48KMA600.6
▸ 6 × 100W / 750W Dynamic Power -
(1) Kicker 12" Marine Subwoofer
▸ Model: 45KMF124
▸ 4-Ohm Free-Air Design
Kicker KM 6.5" 4Ω Coaxial Marine Speakers (45KM654) are built to be loud, clear, and nearly indestructible. UV-treated components and marine-grade construction deliver years of dependable performance whether mounted in-hull or in KICKER® tower enclosures.
- Marine Ready: IP66 rated—protected from dust and powerful water jets/splash.
- 4-Ohm Voice Coil: Easy match with marine head units and amplifiers.
- Crisp Highs: 3/4" PEI tweeter resists corrosion and delivers clear detail.
- Durable Build: UV-treated polypropylene woofer with Santoprene® surround and UV-resistant polymer basket.
- Sealed Protection: Locking/sealed terminal cover and sealed motor structure for splash-and-spray resistance.
- Rustproof Hardware: Includes 316L stainless-steel mounting screws.
- Two Grille Options: Charcoal and white grilles included for a custom look.
- Weather Testing: Meets or exceeds ASTM G154 (UV) and ASTM B117 (salt/fog) standards.
- Power Handling: Works best with 65W RMS (195W peak) per ANSI/CTA-2031-A.
- Warranty: 3 Years from KICKER (Click Here For Kicker Warranty Contact and Details)
Specifications
| Model | 45KM654 |
| Woofer (in/mm) | 6-1/2 / 165 |
| Tweeter (in/mm) | 3/4 / 20 |
| Tweeter Dome Material | PEI |
| Rated Impedance (Ω) | 4 |
| Peak Power (Watts, ANSI/CTA-2031-A) | 195 |
| Recommended Amplifier Power (Watts RMS) | 65 |
| Sensitivity (1W, 1m) | 90 dB |
| Frequency Response (Hz) | 35–21k |
| Mounting Hole Diameter (in/mm) | 5-1/16 / 128 |
| Mounting Depth (in/mm) | 2-3/8 / 59.9 |
| LED Lighting | No |
| Grilles | Charcoal and White (both included) |
| Ingress Protection | IP66 |
| ASTM UV Test | G154, 400 hr |
| ASTM Salt/Fog Test | B117, 200 hr |
*For mounting template accuracy, set print scaling to 100% (do not scale to page).
What's in the Box
- 2 × 6.5" 4Ω Coaxial Speakers
- 8 × Mounting Screws
- 8 × Mounting Screw Clips
- 2 × Wire Connection Covers
- 2 × Zip Ties
KMA600.6 6 x 100W 6-Channel Weather-Resistant Full-Range Amplifier
Big sound meets big value. Use this flexible six-channel KM-Series marine amplifier to power up to three zones!
Using a Class-D power plant, this amp features a variable bass boost with KickEQ™, giving you as much as 6dB of extra bump on the Amp 3 channels. Powering as many as 12 speakers, this amplifier makes your entire boat sound like a floating concert! A powerful 12dB crossover is also included, letting you quickly tune your system to perfection.
Features:
- Ultra-Efficient Class D Design
- 750 Watts of Dynamic Power
- Three Zones of Control
- Six-Channel Amplifier with Bridging Capability
- Conformal-Coated Circuit Board
- Variable 12dB Crossover
- KickEQ™ Variable 6dB Bass Boost
- Real Marine™ ABYC/NMMA-Compliant Power Connections
- 316L Stainless-Steel Hardware Included
Technical Specifications:
- Power (Watts/Ch) 2-Ohm Stereo - 6 x 100W
- Power (Watts/Ch) 4-Ohm Stereo - 6 x 50W
- Power (Watts/Ch) 4-Ohm Bridged Mono - 3 x 200W
- Dynamic Power (Watts) - 750W
- Frequency Response - 10-20,000Hz, +0/-1dB
- Input Sensitivity - High-Level 250mV-10V, Low-Level 125mV-5V
Specifications:
- Channels - Available: 6
- Watts: 6 x 100W
- Box Dimensions: 4"H x 9"W x 18"L WT: 7.7 lbs
- UPC: 713034020387
KMF12 12" Weather-Proof Subwoofer for Freeair Applications - 4-Ohm
The KICKER® KMF 12-inch Marine Subwoofer makes serious bass - no enclosure necessary! Made to take the power and the weather, this sub is custom-made to bang in your boat.
Packed with features and made for marine, KICKER gives you the deep, loud bass your boat needs with the KMF series of subs.
Features:
- Four-Ohm Voice Coil
- Injection-Molded Polypropylene Cone
- Co-molded Santoprene® Surround
- UniPlate™ Back Plate And Pole Piece
- Thick Tinsel Leads
- Large Ceramic Magnet
- Polymer Basket Resists Corrosion
- Protective Terminal Cap
- Stainless Mounting Hardware Included
- Meets or Exceeds ASTM Standards for UV and Salt/Fog Exposure (ASTM B117 200 hr. Salt Fog Test) (ASTM G154 400 hr. Accelerated UV Test)
Technical Specifications:
- Size - 12"
- Impedance - 4 SVC
- Power (Watts RMS) - 175W
- Peak Power (Watts) - 350W
- Frequency Response - 30-500Hz
Specifications:
- Cutout Size: 11"
- Mounting Style: Flush
- QTY: Single
- Watts Max: 350w
- Watts RMS: 175w
- Size: 12"
- Box Dimensions: 7"H x 13"W x 14"L WT: 11.35 lbs
- UPC: 713034084808
