Description

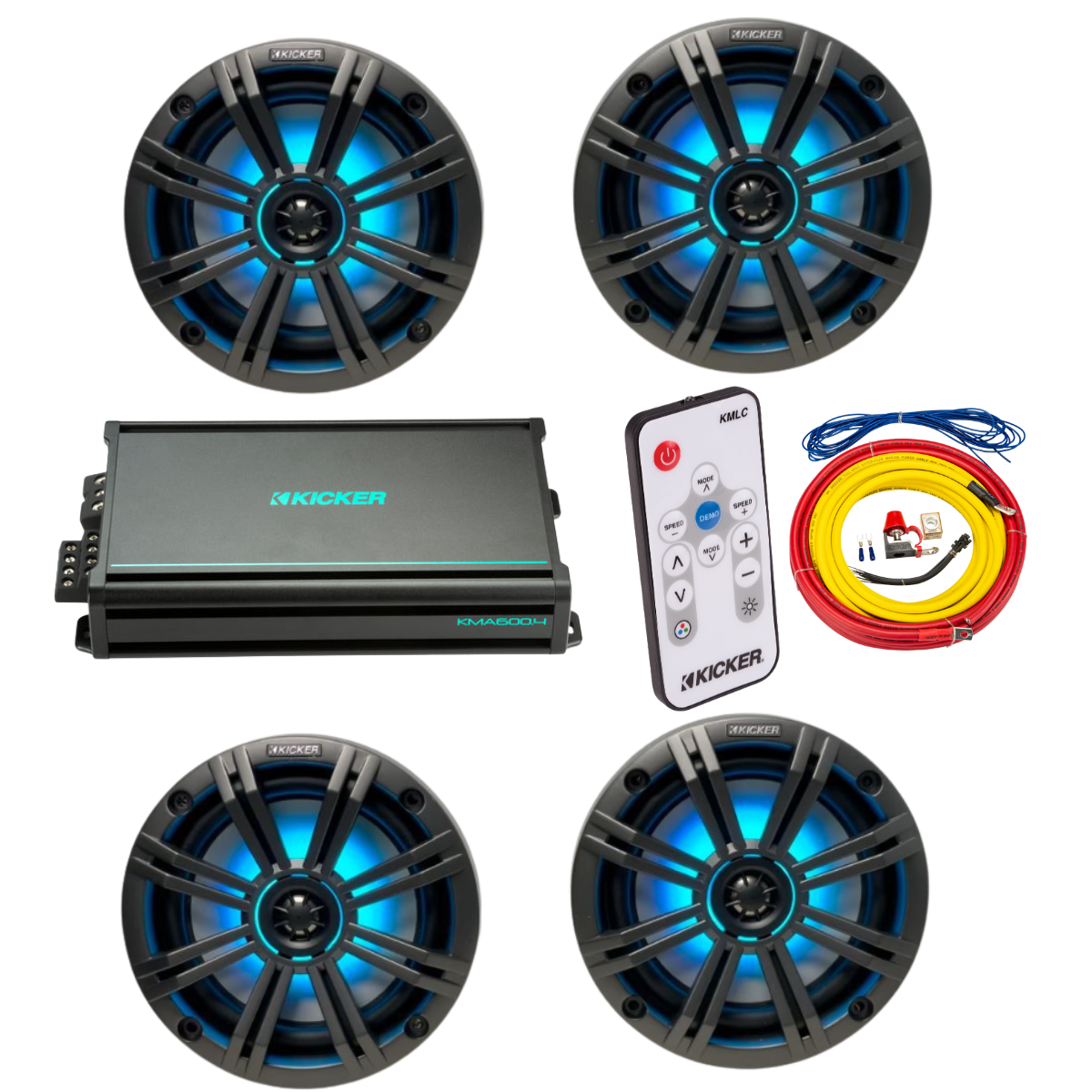

Package of:
-
(4) Kicker 6.5" Marine RGB LED Coaxial Speakers
▸ Model: 45KM654L
▸ Charcoal & White Grilles Included -
(1) Kicker 4-Channel Marine Amplifier
▸ Model: 48KMA6004
▸ 600W Max Power -
(1) Kicker 4-Gauge Marine Amplifier Power Kit
▸ Model: 47KMPK4
▸ Marine-Grade Wiring & Fuse Included -
(1) Kicker Marine LED Lighting Controller
▸ Model: KMLC
▸ Wireless Remote & Receiver Module Included
Kicker 45KM654L KM 6.5" 4Ω LED Marine Coaxial Speakers deliver powerful, crisp audio with a customizable seven-color LED lighting system. Engineered for marine environments, these speakers combine durability, clarity, and style for years of reliable on-the-water fun.
- Light It Up: Built-in seven-color LED system (upgradable to 20 colors & 19 modes with KMLC controller, sold separately).
- Marine Ready: IP66 rated—sealed against dust and water jets for all-weather reliability.
- Durable Components: UV-treated polypropylene woofer with Santoprene® surround and UV-resistant polymer basket.
- Crisp Highs: 3/4" PEI tweeter resists corrosion and delivers high-frequency clarity.
- Sealed Protection: Locking terminal cover and sealed motor structure resist splash and spray damage.
- Rustproof Hardware: Forged 316L stainless-steel mounting hardware included.
- Dual Grilles: Includes both charcoal and white grilles for a custom match to your boat’s interior.
- Weather Tested: Meets or exceeds ASTM G154 (UV) and ASTM B117 (salt/fog) standards.
- Power Handling: Works best with 65W RMS (195W peak) for powerful marine sound.
- One Color Can Be Displayed at A Time Hardwired if No Remote Is Purchased
- For Multi Color LED Functionality KMLC Remote is Needed (Sold Separately)
- Warranty: 3 Years from KICKER (Click Here For Kicker Warranty Contact and Details)
Specifications
| Model | 45KM654L |
| Woofer (in/mm) | 6-1/2 / 165 |
| Tweeter (in/mm) | 3/4 / 20 |
| Tweeter Dome Material | PEI |
| Rated Impedance (Ω) | 4 |
| Peak Power (Watts, ANSI/CTA-2031-A) | 195 |
| Recommended Amplifier Power (Watts RMS) | 65 |
| Sensitivity (1W, 1m) | 90 dB |
| Frequency Response (Hz) | 35–21k |
| Mounting Hole Diameter (in/mm) | 5-1/16 / 128 |
| Mounting Depth (in/mm) | 2-3/8 / 59.9 |
| LED Lighting | Yes (7 Colors Included) |
| Grilles | Charcoal and White (included) |
| Ingress Protection | IP66 |
| ASTM UV Test | G154 – 400 hr |
| ASTM Salt/Fog Test | B117 – 200 hr |
*For accurate mounting template, ensure print settings are at 100% (do not scale to page).
What's in the Box
- 2 × 6.5" 4Ω LED Coaxial Speakers
- 8 × Mounting Screws
- 8 × Mounting Clips
- 2 × Wire Connection Covers
- 2 × Zip Ties
Kicker 48KMA600.4 Marine 4-Channel Amplifier delivers big power, clean sound, and legendary Kicker reliability for your boat’s sound system. Designed to handle the harsh marine environment, this amp combines Class-D efficiency, stainless hardware, and flexible tuning to power your next on-water party.
- Model: 48KMA600.4
- Class-D Power: Efficient design keeps your system running cool while delivering up to 725W of dynamic power.
- 4-Channel Flexibility: Power up to eight speakers or bridge to two channels for higher output applications.
- Variable 12dB Crossover: Tune your system perfectly with adjustable high-pass and low-pass filters (50–200Hz).
- KickEQ™ Bass Boost: Adds up to 6dB of adjustable bass at 40Hz for deeper low-end punch.
- Marine-Grade Build: Conformal-coated circuit board and 316L stainless-steel hardware resist corrosion and moisture.
- ABYC/NMMA Compliant: REAL MARINE™ power connections meet industry safety standards for marine electronics.
- Compact Design: Slim profile fits easily under seats, in storage lockers, or near helm consoles.
- Warranty: 3 Years from KICKER (Click Here For Kicker Warranty Contact and Details)
Specifications
| Model | 48KMA600.4 |
| Power @ 2Ω Stereo (Watts/Ch) | 150 × 4 |
| Power @ 4Ω Stereo (Watts/Ch) | 75 × 4 |
| Power @ 4Ω Bridged Mono (Watts/Ch) | 300 × 2 |
| Dynamic Power (Watts) | 725 |
| Frequency Response (Hz) | 10–20k (+0/–1dB) |
| Input Sensitivity | High: 250mV–10V / Low: 125mV–5V |
| Signal-to-Noise Ratio | >95dB (A-weighted, re: rated power) |
| Active Crossover | 12dB/octave, 50–200Hz (HP/LP selectable) |
| KickEQ™ Boost | Variable 0–6dB @ 40Hz |
| Dimensions (in) | 2-5/16H × 7-1/8W × 12-7/16L |
| Dimensions (cm) | 5.9H × 18.0W × 31.5L |
*All power ratings tested at 14.4V, ≤1% THD+N per Audio Precision® APx500 analyzer. Dynamic power tested at ≤10% THD+N.
Kicker 47KMPK4 4-Gauge Marine Amplifier Power Kit provides everything you need for reliable, high-quality power delivery in your marine audio setup. Designed to withstand harsh marine environments, this kit ensures your amplifier gets clean, consistent power for optimal performance.
- Model: 47KMPK4
- Complete Kit: Includes power and ground cables, fuse, fuse holder, and remote wire.
- Marine Grade: Meets the highest industry standards for corrosion resistance and durability.
- Tinned OFC Wiring: Full-spec oxygen-free copper cable plated with 99.9% tin for anti-corrosive performance.
- High Current Fuse: MRBF 100A marine-rated fuse and KMFMF marine fuse holder included.
- Easy Installation: Pre-terminated ring terminals with marine-grade heat shrink for a clean setup.
- All-in-One Solution: Provides all necessary hardware for powering marine amplifiers.
- Powerful Connection: 20 ft of 4 AWG red power wire and 20 ft of 4 AWG yellow ground wire ensure reliable current flow.
- Warranty: 3 Years from KICKER (Click Here For Kicker Warranty Contact and Details)
What's in the Box
- 20 ft 4 AWG red power wire with 5/16" tin-plated ring terminal (heat-shrink insulated)
- 20 ft 4 AWG yellow ground wire with 5/16" tin-plated ring terminal (heat-shrink insulated)
- 20 ft 18 AWG blue remote wire
- 1 × KMFMF marine-rated battery fuse holder
- 1 × MRBF100 100A marine-rated fuse
- 2 × 18 AWG fork terminals with blue boots
- 20 × 6" zip ties
Kicker 41KMLC LED Lighting Remote with Receiver Module lets you take full control of your marine lighting system. Designed for Kicker LED-equipped speakers and subwoofers, this remote provides the ultimate convenience and creativity for your boat’s nighttime atmosphere.
- Model: 41KMLC
- 19 Lighting Modes: Fade, flash, strobe, smooth, pulse, and more for a custom light show.
- 20 Color Options: Choose from vibrant colors to match your music or mood.
- Wireless Control: Compact remote—about the size of a credit card—puts everything at your fingertips.
- Easy Installation: Works seamlessly with Kicker marine LED speakers and subwoofers.
- Multiple Speaker Support: Control up to 12 LED speakers/grilles from one KMLC (additional units required for more).
- Receiver Module Included: Ensures quick, plug-and-play connection to your LED setup.
- Durable Design: Built for marine environments with reliable signal and long-lasting performance.
- Warranty: 3 Years from KICKER (Click Here For Kicker Warranty Contact and Details)
With the Kicker KMLC LED Controller, you can customize your lighting to fade, flash, or pulse with your favorite music — all with the touch of a button. Perfect for boats, UTVs, or anywhere Kicker LED speakers shine.
Wiring Multiple LED Speakers
You can wire multiple LED speakers or grilles in parallel to one KMLC controller. Each controller supports up to 12 LED-lit speakers or grilles. For more than 12, use additional KMLC modules.
