Newmar ES-1 Elite DC Panel [ES-1]
Regular price
$2,001.73
Sale price
$2,001.73
Regular price
$0.00
Unit price
/
per
Sale
Sold out
Shipping calculated at checkout.
Only 2 units left
Secure checkout with
Payment methods
Couldn't load pickup availability
- SAME DAY SHIPPING BY 4PM EST
- 3 YEAR PRODUCT WARRANTY
- 30 DAY EASY RETURN POLICY

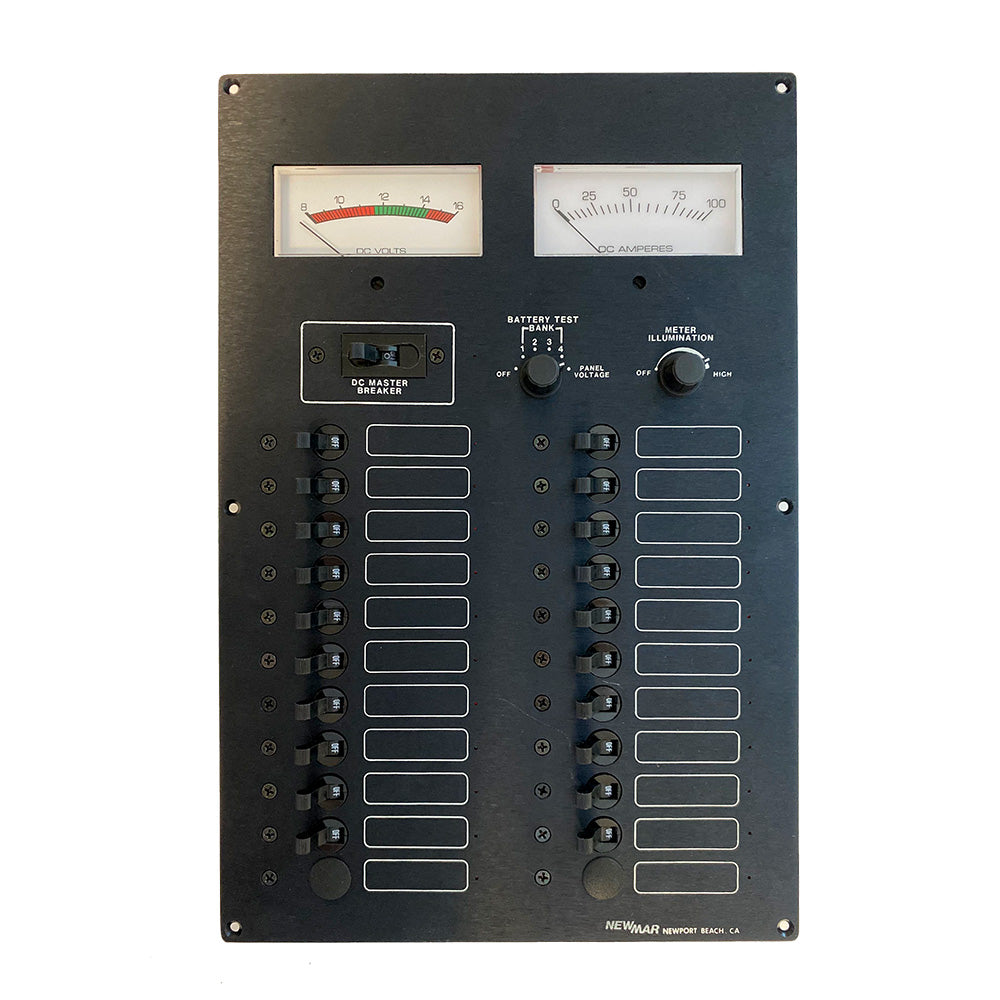

ES-1 Elite DC Panel
This DC master control panel offers a large DC circuit capacity and can be installed by itself or in conjunction with the ES-2 panel to make a complete AC-DC control and monitoring system.
Features:
- Analog DC volt and ammeter, back-illuminated with dimmer
- 12-volt standard, 24-volt optional
- 4 battery bank test switch
- DC master breaker (100 Amp standard; 50 or 75 amp optional)
- 22 branch circuit capacity, 20 installed standard; 3-5A, 5-10A, 6-15A,
- 6-20A or specify
Specifications:
- Size (W x H x D): 10 x 15 x 4 inches
- Weight: 8 lbs. (3.6 kg)
-
Vendor:
Newmar Power
-
Type:
Electrical Panels
- Tags: Brand_newmar power, Electrical, Electrical | electrical panels
