Victron Lynx Shunt VE. Can [LYN040102100]

Lynx Shunt VE. Can

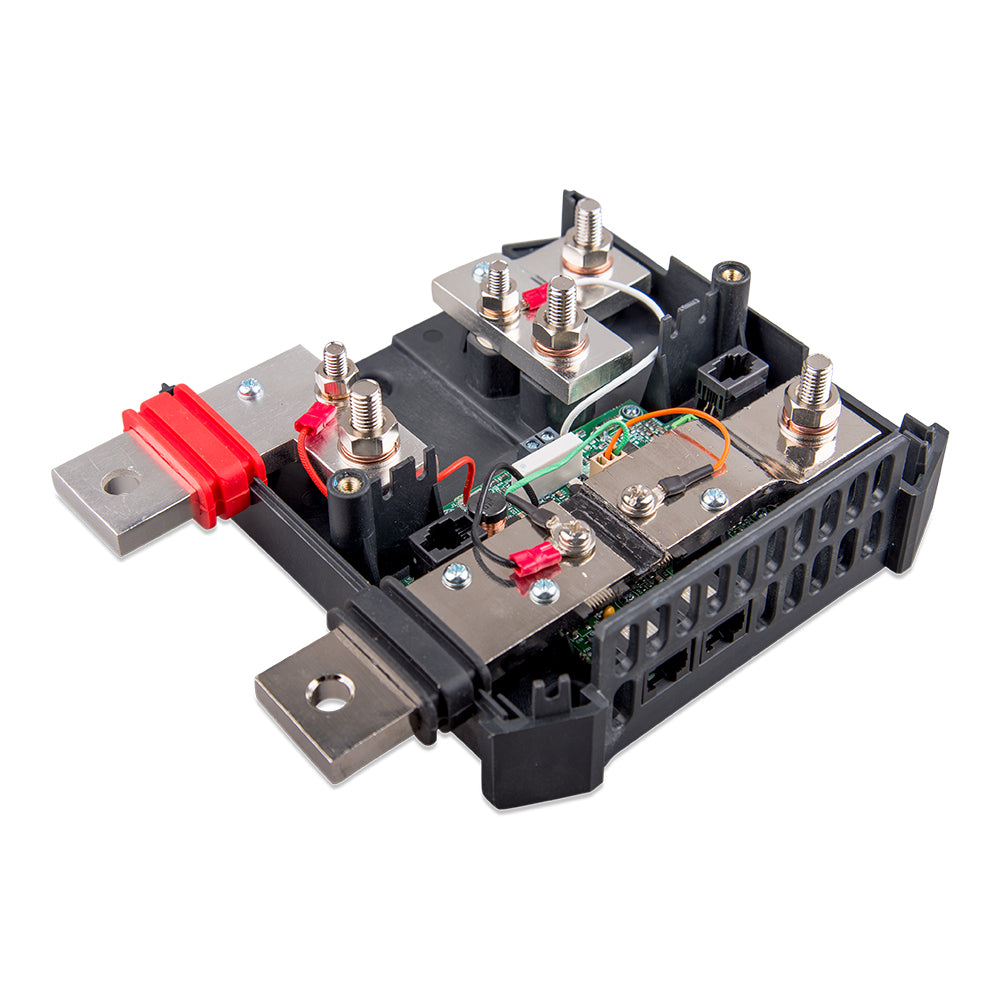

The Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built in battery monitor accurately monitors the state of charge of your battery.  The Lynx shunt contains a positive bus-bar with space to mount a CNN fuse and a negative bus-bar with a shunt. It also contains battery monitoring electronics. The Lynx shunt can send via the VE.CAN bus battery monitoring information to a CCGX or VGX or to a third party CANbus monitoring system, such as a NMEA2000. The CCGX, VGX or third party display acts as battery monitor display and is also used to set up the built-in battery monitor.

The Lynx shunt is available with a VE.Can connection.

Fuse CIP140325000 - Fuse CNN 325A/80V for Lynx shunt, or alternatively a CNN fuses by Littlefuse can be used.

Warranty Info

Specifications:

• Type: Lugs
• Box Dimensions: 4"H x 7"W x 12"L WT: 3.4 lbs
• UPC: 8719076022602
