Newmar Power
Newmar DX-3 Feed-Thru Waterproof Fitting [DX-3]
Free Shipping on $199+Regular price $82.00Sale price $82.00 Regular price $0.00Unit price perLow Stock — Only 5 Left
More info
- Similar to CCX Series except the installer drills holes in the seal to accommodate cable(s)
- Multiple cables may be routed through a single-fitting
- Drill-Thru Aperture: 1.65 in.
- Max. Connector Diameter: 1.65 in.
- Type: Deck Seal
- Box Dimensions: 2"H x 4"W x 7"L WT: 0.2 lbs
Newmar PowerNewmar DX-3 Feed-Thru Waterproof Fitting [DX-3]
Code: ORA-103959Brand: Newmar PowerLow Stock — Only 5 LeftRegular price $82.00Sale price $82.00 Regular price $0.00Unit price per- Similar to CCX Series except the installer drills holes in the seal to accommodate cable(s)
- Multiple cables may be routed through a single-fitting
- Drill-Thru Aperture: 1.65 in.
- Max. Connector Diameter: 1.65 in.
-
Newmar Power
Newmar ES-7D Elite DC Panel [ES-7D]
Free Shipping on $199+Regular price $1,087.00Sale price $1,087.00 Regular price $0.00Unit price perLow Stock — Only 2 Left
More info
- AC (120/240V) or DC (12/24V) master breaker (double pole AC 50 amp* standard, 30 amp optional, or DC 100 single pole amp standard; 50 or 75 amp optional
- 16 branch circuit capacity, 12 installed standards: ES-7A: 2-10A, 5-15A, 5-20A ES-7D: 2-5A, 3-10A, 5-15A, 2-20A
- Size (W x H x D): 5.25 x 15 x 4 inches
- Weight: 7 lbs. (3.2 kg)
Newmar PowerNewmar ES-7D Elite DC Panel [ES-7D]
Code: ORA-102464Brand: Newmar PowerLow Stock — Only 2 LeftRegular price $1,087.00Sale price $1,087.00 Regular price $0.00Unit price per- 16 branch circuit capacity, 12 installed standards: ES-7A: 2-10A, 5-15A, 5-20A ES-7D: 2-5A, 3-10A, 5-15A, 2-20A
- Size (W x H x D): 5.25 x 15 x 4 inches
- Weight: 7 lbs. (3.2 kg)
-
Newmar Power
Newmar ES-1 Elite DC Panel [ES-1]
Free Shipping on $199+Regular price $2,062.00Sale price $2,062.00 Regular price $0.00Unit price perLow Stock — Only 2 Left
More info
- Analog DC volt and ammeter, back-illuminated with dimmer
- 12-volt standard, 24-volt optional
- 4 battery bank test switch
- DC master breaker (100 Amp standard; 50 or 75 amp optional)
- 22 branch circuit capacity, 20 installed standard; 3-5A, 5-10A, 6-15A,
- 6-20A or specify
- Size (W x H x D): 10 x 15 x 4 inches
- Weight: 8 lbs. (3.6 kg)
Newmar PowerNewmar ES-1 Elite DC Panel [ES-1]
Code: ORA-102463Brand: Newmar PowerLow Stock — Only 2 LeftRegular price $2,062.00Sale price $2,062.00 Regular price $0.00Unit price per- Analog DC volt and ammeter, back-illuminated with dimmer
- 12-volt standard, 24-volt optional
- 4 battery bank test switch
- DC master breaker (100 Amp standard; 50 or 75 amp optional)
-
Newmar Power
Newmar ERC-12-35 Emergency Relay [ERC-12-35]
Free Shipping on $199+Regular price $332.00Sale price $332.00 Regular priceUnit price perLow Stock — Only 4 Left
More info
- 5 ft. wire length = #8 AWG
- 10 ft. wire length = #6 AWG
- 15 ft. wire length = #4 AWG
- 20 ft. wire length = #4 AWG
- Input Range: 10.0-14.5 VDC (12V)
- Relay Rating: 30 amps continuous & 35 amps intermittent
- Float Trickle (typical): 0.1 amps
- Dimensions (inch): 5-1/8" x 2-7/8" x 3-5/8"
- Weight: 1.15 lbs
Newmar PowerNewmar ERC-12-35 Emergency Relay [ERC-12-35]
Code: ORA-102461Brand: Newmar PowerLow Stock — Only 4 LeftRegular price $332.00Sale price $332.00 Regular priceUnit price per- 5 ft. wire length = #8 AWG
- 10 ft. wire length = #6 AWG
- 15 ft. wire length = #4 AWG
- 20 ft. wire length = #4 AWG
-
Newmar Power
Newmar ERC-12-15 Emergency Relay [ERC-12-15]
Free Shipping on $199+Regular price $223.00Sale price $223.00 Regular priceUnit price perLow Stock — Only 4 Left
More info
- 5 ft. wire length = #14 AWG
- 10 ft. wire length = #12 AWG
- 15 ft. wire length = #10 AWG
- 20 ft. wire length = #10 AWG
- Input Range: 10.0-14.5 VDC (12V)
- Relay Rating: 10 amps continuous & 15 amps intermittent
- Float Trickle (typical): 0.1 amps
- Dimensions (inches): 5-1/8" x 2-7/8" x 2-3/8"
- Weight: 0.5 lbs.
Newmar PowerNewmar ERC-12-15 Emergency Relay [ERC-12-15]
Code: ORA-102460Brand: Newmar PowerLow Stock — Only 4 LeftRegular price $223.00Sale price $223.00 Regular priceUnit price per- 5 ft. wire length = #14 AWG
- 10 ft. wire length = #12 AWG
- 15 ft. wire length = #10 AWG
- 20 ft. wire length = #10 AWG
-
Free Shipping on $199+Regular price $278.00Sale price $278.00 Regular price $0.00Unit price perLow Stock — Only 6 Left
More info
- Maybe rear-mounted in a panel with a thickness of up to 1/4”
- Amperage @ 115/230V: 63
- Number of Poles: 2
- Switch Positions: 2 + “OFF”
- Standard Plate Markings: SHIP-OFF-SHORE
- Depth Dimensions: 2-3/8 in.

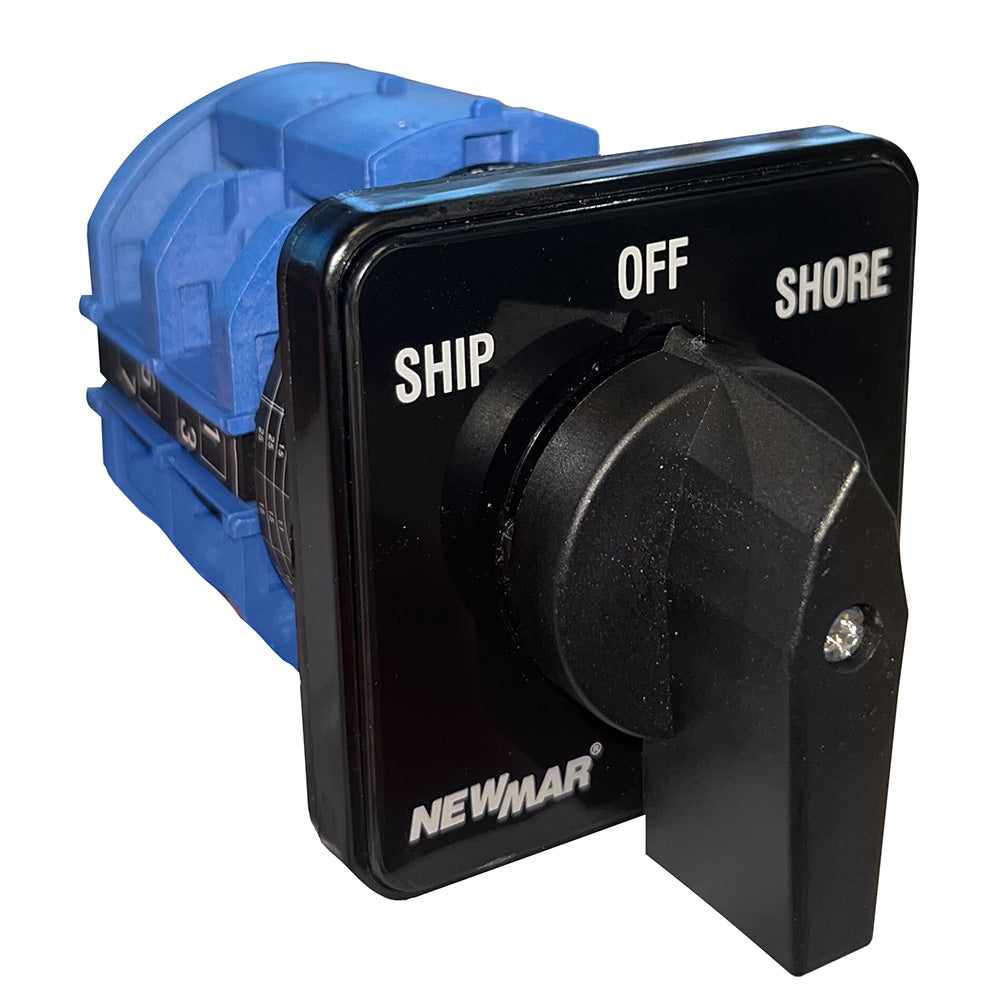

Newmar PowerNewmar SS Switch - 7.5 AC Selector Switch [SS SWITCH7.5]
Code: ORA-102427Brand: Newmar PowerLow Stock — Only 6 LeftRegular price $278.00Sale price $278.00 Regular price $0.00Unit price per- Maybe rear-mounted in a panel with a thickness of up to 1/4”
- Amperage @ 115/230V: 63
- Number of Poles: 2
- Switch Positions: 2 + “OFF”
-
Newmar Power
Newmar SS Switch - 3 AC Selector Switch [SS SWITCH3]
Free Shipping on $199+Regular price $192.00Sale price $192.00 Regular price $0.00Unit price perLow Stock — Only 4 Left
More info
- May be rear-mounted in a panel with a thickness up to 1/4”
- Amperage @ 115/230V: 30
- Number of Poles: 2
- Switch Positions: 2 + “OFF”
- Standard Plate Markings: SHIP-OFF-SHORE
- Depth Dimensions: 2-1/8 in.
Newmar PowerNewmar SS Switch - 3 AC Selector Switch [SS SWITCH3]
Code: ORA-102426Brand: Newmar PowerLow Stock — Only 4 LeftRegular price $192.00Sale price $192.00 Regular price $0.00Unit price per- May be rear-mounted in a panel with a thickness up to 1/4”
- Amperage @ 115/230V: 30
- Number of Poles: 2
- Switch Positions: 2 + “OFF”
-
Newmar Power
Newmar BB-8 Bus Bar [BB-8]
Free Shipping on $199+Regular price $185.00Sale price $185.00 Regular price $0.00Unit price perLow Stock — Only 1 Left
More info
- Accommodate 5/16" ring terminals
- Insulated base (reinforced nylon resin with a clear protective cover)
- Quantity of 5/16" Studs: 8
- Size (inches): 9-1/16” x 1-1/2”
Newmar PowerNewmar BB-8 Bus Bar [BB-8]
Code: ORA-102423Brand: Newmar PowerLow Stock — Only 1 LeftRegular price $185.00Sale price $185.00 Regular price $0.00Unit price per- Accommodate 5/16" ring terminals
- Insulated base (reinforced nylon resin with a clear protective cover)
- Quantity of 5/16" Studs: 8
- Size (inches): 9-1/16” x 1-1/2”
-
Newmar Power
Newmar BB-5 Bus Bar [BB-5]
Free Shipping on $199+Regular price $138.00Sale price $138.00 Regular price $0.00Unit price perLow Stock — Only 4 Left
More info
- Accommodate 5/16" ring terminals
- Insulated base (reinforced nylon resin with a clear protective cover)
- Quantity of 5/16" Studs: 5
- Size (inches): 6-1/16” x 1-1/2”
Newmar PowerNewmar BB-5 Bus Bar [BB-5]
Code: ORA-102422Brand: Newmar PowerLow Stock — Only 4 LeftRegular price $138.00Sale price $138.00 Regular price $0.00Unit price per- Accommodate 5/16" ring terminals
- Insulated base (reinforced nylon resin with a clear protective cover)
- Quantity of 5/16" Studs: 5
- Size (inches): 6-1/16” x 1-1/2”
-
Newmar Power
Newmar BB-2 Bus Bar [BB-2]
Free Shipping on $199+Regular price $75.00Sale price $75.00 Regular price $0.00Unit price perLow Stock — Only 2 Left
More info
- Accommodate 5/16" ring terminals
- Insulated base (reinforced nylon resin with a clear protective cover)
- Quantity of 5/16" Studs: 2
- Size (inches): 1/16" x 1 1/2"
Newmar PowerNewmar BB-2 Bus Bar [BB-2]
Code: ORA-102420Brand: Newmar PowerLow Stock — Only 2 LeftRegular price $75.00Sale price $75.00 Regular price $0.00Unit price per- Accommodate 5/16" ring terminals
- Insulated base (reinforced nylon resin with a clear protective cover)
- Quantity of 5/16" Studs: 2
- Size (inches): 1/16" x 1 1/2"
-
Newmar Power
Newmar CCX-R Thru-Dex Fitting [CCX-R]
Free Shipping on $199+Regular price $88.00Sale price $88.00 Regular price $0.00Unit price perLow Stock — Only 3 Left
More info
- Create a 100% waterproof seal when routing cables through decks and bulkheads
- Entry hole predrilled in seal with a slit to edge
- Allowing installation or removal with the connector still attached
- Rugged weatherproof nylon housing with neoprene seal
- Cable Diameter Range (inches): .47-.59
- Max Connector Diameter (inches): 1.57
- Type: Deck Seal
- Box Dimensions: 2"H x 4"W x 7"L WT: 0.2 lbs
Newmar PowerNewmar CCX-R Thru-Dex Fitting [CCX-R]
Code: ORA-102417Brand: Newmar PowerLow Stock — Only 3 LeftRegular price $88.00Sale price $88.00 Regular price $0.00Unit price per- Create a 100% waterproof seal when routing cables through decks and bulkheads
- Entry hole predrilled in seal with a slit to edge
- Allowing installation or removal with the connector still attached
- Rugged weatherproof nylon housing with neoprene seal
-
Newmar Power
Newmar PX-3 Junction Box [PX-3]
Free Shipping on $199+Regular price $83.00Sale price $83.00 Regular price $0.00Unit price perLow Stock — Only 8 Left
More info
- Similar to BX Series junction boxes but made from rugged, non-corrosive, high-impact polypropylene
- The snap-on cover provides a watertight seal
- “Universal” cut-to-fit graduated diameter cable entries accommodate a wide cable range
- Multiple position connector strips with “captive” screw compression wire terminals installed, see matrix below for connector strip specifications per box
- Multiple knockouts are provided for conduit access (in addition to cable entries)
- IEC Waterproof Rating: IP55 – “Water projected in jets against the enclosure from any direction shall have no harmful effects.”
- Number of Connector Strips: 2
- Positions per Strip: 9
- Max Wire Gauge: 16
- Number of Cable Entry Ports: 7
- Number of Cable Entries Installed: 7
- Spare Cable Entries Provided: 0
- Cable Diameter Range (inches): .14 – .99
- Cable Diameter Range (mm): 3.5 – 25.5
- Box Size (inches): 4.45 x 4.45 x 2.29
- Box Size (cm): 11.3 x 11.3 x 5.8
- Type: Junction Box
- Box Dimensions: 3"H x 7"W x 9"L WT: 0.5 lbs
Newmar PowerNewmar PX-3 Junction Box [PX-3]
Code: ORA-102416Brand: Newmar PowerLow Stock — Only 8 LeftRegular price $83.00Sale price $83.00 Regular price $0.00Unit price per- Similar to BX Series junction boxes but made from rugged, non-corrosive, high-impact polypropylene
- The snap-on cover provides a watertight seal
- “Universal” cut-to-fit graduated diameter cable entries accommodate a wide cable range
- Multiple knockouts are provided for conduit access (in addition to cable entries)
-
Newmar Power
Newmar PX-2 Junction Box [PX-2]
Free Shipping on $199+Regular price $67.00Sale price $67.00 Regular price $0.00Unit price perLow Stock — Only 7 Left
More info
- Similar to BX Series junction boxes but made from rugged, non-corrosive, high-impact polypropylene
- The snap-on cover provides a watertight seal
- “Universal” cut-to-fit graduated diameter cable entries accommodate a wide cable range
- Multiple position connector strips with “captive” screw compression wire terminals installed, see matrix below for connector strip specifications per box
- Multiple knockouts are provided for conduit access (in addition to cable entries)
- IEC Waterproof Rating: IP55 – “Water projected in jets against the enclosure from any direction shall have no harmful effects.”
- Number of Connector Strips: 2
- Positions per Strip: 6
- Max Wire Gauge: 16
- Number of Cable Entry Ports: 7
- Number of Cable Entries Installed: 7
- Spare Cable Entries Provided: 0
- Cable Diameter Range (inches): .14 – .81
- Cable Diameter Range (mm): 3.5 – 20.5
- Box Size (inches): 3.35 x 3.35 x 1.66
- Box Size (cm): 8.5 x 8.5 x 4.2
- Type: Junction Box
- Box Dimensions: 2"H x 6"W x 8"L WT: 0.15 lbs
Newmar PowerNewmar PX-2 Junction Box [PX-2]
Code: ORA-102415Brand: Newmar PowerLow Stock — Only 7 LeftRegular price $67.00Sale price $67.00 Regular price $0.00Unit price per- Similar to BX Series junction boxes but made from rugged, non-corrosive, high-impact polypropylene
- The snap-on cover provides a watertight seal
- “Universal” cut-to-fit graduated diameter cable entries accommodate a wide cable range
- Multiple knockouts are provided for conduit access (in addition to cable entries)
-
Newmar Power
Newmar PX-1 Junction Box [PX-1]
Free Shipping on $199+Regular price $55.00Sale price $55.00 Regular price $0.00Unit price perLow Stock — Only 5 Left
More info
- Similar to BX Series junction boxes but made from rugged, non-corrosive, high-impact polypropylene
- The snap-on cover provides a watertight seal
- “Universal” cut-to-fit graduated diameter cable entries accommodate a wide cable range
- Multiple position connector strips with “captive” screw compression wire terminals installed, see matrix below for connector strip specifications per box
- Multiple knockouts are provided for conduit access (in addition to cable entries)
- IEC Waterproof Rating: IP55 – “Water projected in jets against the enclosure from any direction shall have no harmful effects.”
- Number of Connector Strips: 1
- Positions per Strip: 6
- Max Wire Gauge: 16
- Number of Cable Entry Ports: 5
- Number of Cable Entries Installed: 3
- Spare Cable Entries Provided: 2
- Cable Diameter Range (inches): .14 – .81
- Cable Diameter Range (mm): 3.5 – 20.5
- Box Size (inches): 2.95 x 2.95 x 1.66
- Box Size (cm): 7.5 x 7.5 x 4.2
- Type: Junction Box
- Box Dimensions: 3"H x 6"W x 8"L WT: 0.2 lbs
Newmar PowerNewmar PX-1 Junction Box [PX-1]
Code: ORA-102414Brand: Newmar PowerLow Stock — Only 5 LeftRegular price $55.00Sale price $55.00 Regular price $0.00Unit price per- Similar to BX Series junction boxes but made from rugged, non-corrosive, high-impact polypropylene
- The snap-on cover provides a watertight seal
- “Universal” cut-to-fit graduated diameter cable entries accommodate a wide cable range
- Multiple knockouts are provided for conduit access (in addition to cable entries)
-
Free Shipping on $199+Regular price $542.00Sale price $542.00 Regular price $0.00Unit price perLow Stock — Only 2 Left
More info
- Easy installation
- Rugged, rust-proof anodized aluminum case
- Max Loads: 160 amps
- Voltage Rating: 6 – 50 VDC, neg. ground
- Stud Terminal Size: 6mm
- Dimensions (inches): 9.0 x 4.5 x 3.1
- Weight (lbs): 5
Newmar PowerNewmar APS-160 Automatic Power Selector - 160A [APS-160]
Code: ORA-102413Brand: Newmar PowerLow Stock — Only 2 LeftRegular price $542.00Sale price $542.00 Regular price $0.00Unit price per- Easy installation
- Rugged, rust-proof anodized aluminum case
- Max Loads: 160 amps
- Voltage Rating: 6 – 50 VDC, neg. ground
-
Newmar Power

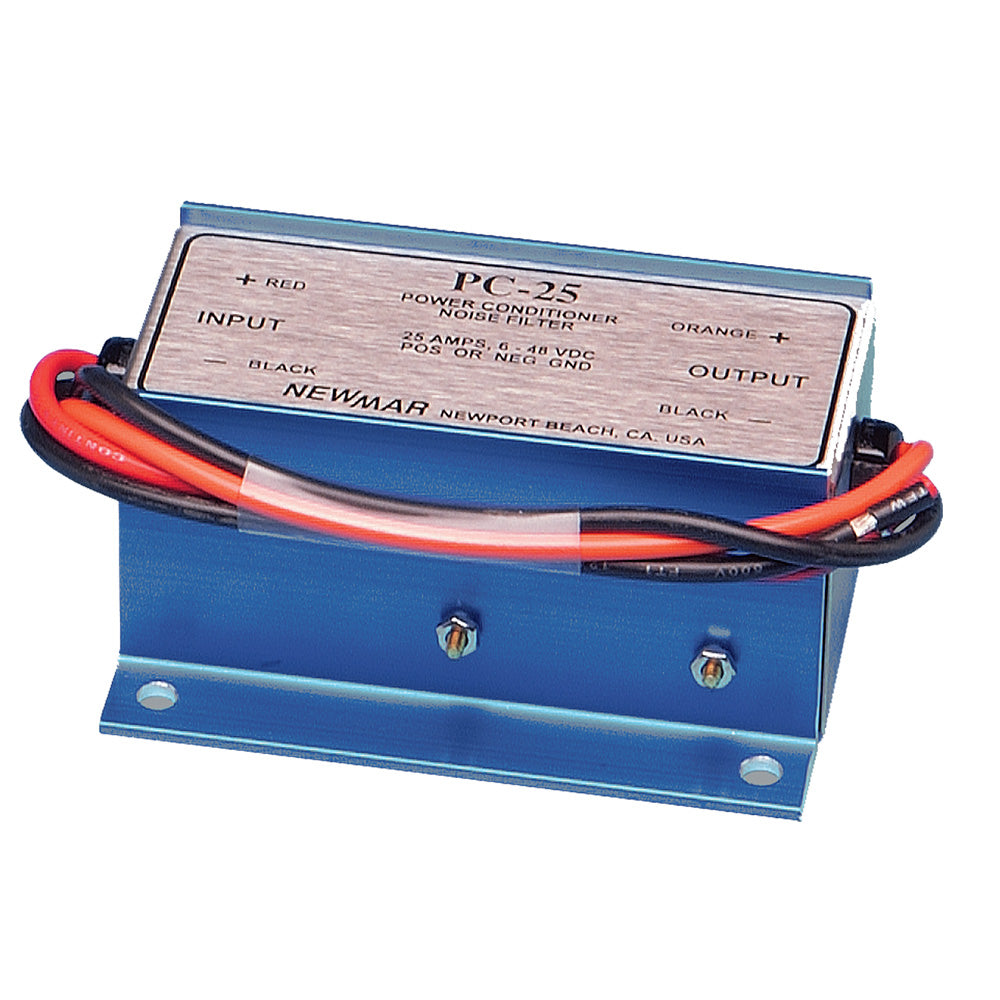

Newmar PC-25 Power Conditioner Noise Filter [PC-25]
Free Shipping on $199+Regular price $175.00Sale price $175.00 Regular price $0.00Unit price perLow Stock — Only 1 Left
More info
- Heavy-duty aluminum construction
- Operate on 6-48 VDC systems
- Integral mounting flanges for secure installation
- Nickle-plated, brass stud connectors on alternator filters accommodate high-current cables and terminals
- Color-coded wire leads on PC models make in-line installation easy
- Filtered Frequencies:
- Audio – 200 MHz
- Rating: 25 amp
- Installation Location: At affected equipment in “+” and “-” leads
- Dimensions (inches): 2 x 4.25 x 3.25
- Weight (lbs): 2
Newmar PowerNewmar PC-25 Power Conditioner Noise Filter [PC-25]
Code: ORA-102348Brand: Newmar PowerLow Stock — Only 1 LeftRegular price $175.00Sale price $175.00 Regular price $0.00Unit price per- Heavy-duty aluminum construction
- Operate on 6-48 VDC systems
- Integral mounting flanges for secure installation
- Nickle-plated, brass stud connectors on alternator filters accommodate high-current cables and terminals
-
Newmar Power
Newmar PC-10 Power Conditioner Noise Filter [PC-10]
Free Shipping on $199+Regular price $118.00Sale price $118.00 Regular price $0.00Unit price perLow Stock — Only 2 Left
More info
- Heavy-duty aluminum construction
- Operate on 6-48 VDC systems
- Integral mounting flanges for secure installation
- Nickle-plated, brass stud connectors on alternator filters accommodate high-current cables and terminals
- Color-coded wire leads on PC models make in-line installation easy
- Filtered Frequencies:
- Audio – 200 MHz
- Rating: 10 amp
- Installation Location: At affected equipment in “+” and “-” leads
- Dimensions (inches): 1.25 x 4.25 x 3
- Weight (lbs): 1
Newmar PowerNewmar PC-10 Power Conditioner Noise Filter [PC-10]
Code: ORA-102347Brand: Newmar PowerLow Stock — Only 2 LeftRegular price $118.00Sale price $118.00 Regular price $0.00Unit price per- Heavy-duty aluminum construction
- Operate on 6-48 VDC systems
- Integral mounting flanges for secure installation
- Nickle-plated, brass stud connectors on alternator filters accommodate high-current cables and terminals
-
Newmar Power
Newmar GS-2-25 Grounding Strap - 2" x 25' [GS-2-25]
Free Shipping on $199+Regular price $361.51Sale price $361.51 Regular price $0.00Unit price perLow Stock — Only 1 Left
More info
- Flexible (easily conforms to vessel contours)
- .01 in. (25mm) thick
- Width (in./cm): 2/5.1
- Length (ft./m): 25/8
- Weight (lbs/kg): 3/1.4
Newmar PowerNewmar GS-2-25 Grounding Strap - 2" x 25' [GS-2-25]
Code: ORA-102345Brand: Newmar PowerLow Stock — Only 1 LeftRegular price $361.51Sale price $361.51 Regular price $0.00Unit price per- Flexible (easily conforms to vessel contours)
- .01 in. (25mm) thick
- Width (in./cm): 2/5.1
- Length (ft./m): 25/8
-
Newmar Power
Newmar BX-3 Junction Box [BX-3]
Free Shipping on $199+Regular price $120.00Sale price $120.00 Regular price $0.00Unit price perLow Stock — Only 3 Left
More info
- IP rating 54 – “Splashproof”
- Rugged cast aluminum box with white enamel finish
- Metal box reduces electrical interference
- Easy wiring access through multiple grommeted cable entries
- Supplied with high-quality connector strips – secure wires with compression fittings – no terminals required – see matrix below for connector strips specifications per box
- Number of Connector Strips: 2
- Positions per Strip: 11
- Max Wire Gauge: 14
- Max Amps (per position): 10
- Cable Entries: 2
- Cable Diameter: 0.59 in.
- Box Size: 4.7 x 3.7 x 1.3 in.
- Box Size: 11.9 x 9.4 x 3.3 cm
- Type: Junction Box
- Box Dimensions: 2"H x 6"W x 9"L WT: 0.7 lbs
Newmar PowerNewmar BX-3 Junction Box [BX-3]
Code: ORA-102343Brand: Newmar PowerLow Stock — Only 3 LeftRegular price $120.00Sale price $120.00 Regular price $0.00Unit price per- IP rating 54 – “Splashproof”
- Rugged cast aluminum box with white enamel finish
- Metal box reduces electrical interference
- Easy wiring access through multiple grommeted cable entries
-
Newmar Power
Newmar BX-2 Junction Box [BX-2]
Free Shipping on $199+Regular price $82.00Sale price $82.00 Regular price $0.00Unit price perLow Stock — Only 6 Left
More info
- IP rating 54 – “Splashproof”
- Rugged cast aluminum box with white enamel finish
- Metal box reduces electrical interference
- Easy wiring access through multiple grommeted cable entries
- Supplied with high-quality connector strips – secure wires with compression fittings – no terminals required – see matrix below for connector strips specifications per box
- Number of Connector Strips: 1
- Positions per Strip: 12
- Max Wire Gauge: 16
- Max Amps (per position): 6
- Cable Entries: 8
- Cable Diameter: 0.37 in.
- Box Size: 4.4 x 2.4 x 1.2 in.
- Box Size: 11.2 x 6.1 x 3.1 cm
- Type: Junction Box
- Box Dimensions: 2"H x 4"W x 8"L WT: 0.45 lbs
Newmar PowerNewmar BX-2 Junction Box [BX-2]
Code: ORA-102342Brand: Newmar PowerLow Stock — Only 6 LeftRegular price $82.00Sale price $82.00 Regular price $0.00Unit price per- IP rating 54 – “Splashproof”
- Rugged cast aluminum box with white enamel finish
- Metal box reduces electrical interference
- Easy wiring access through multiple grommeted cable entries
-
Newmar Power
Newmar BX-1 Junction Box [BX-1]
Free Shipping on $199+Regular price $72.00Sale price $72.00 Regular price $0.00Unit price perLow Stock — Only 5 Left
More info
- IP rating 54 – “Splashproof”
- Rugged cast aluminum box with white enamel finish
- Metal box reduces electrical interference
- Easy wiring access through multiple grommeted cable entries
- Supplied with high-quality connector strips – secure wires with compression fittings – no terminals required – see matrix below for connector strips specifications per box
- Number of Connector Strips: 1
- Positions per Strip: 6
- Max Wire Gauge: 16
- Max Amps (per position): 6
- Cable Entries: 2
- Cable Diameter: 0.25 in.
- Box Size: 2 x 2 x 1.2 in.
- Box Size: 5.1 x 5.1 x 3.1 cm
- Type: Junction Box
- Box Dimensions: 2"H x 4"W x 6"L WT: 0.35 lbs
Newmar PowerNewmar BX-1 Junction Box [BX-1]
Code: ORA-102341Brand: Newmar PowerLow Stock — Only 5 LeftRegular price $72.00Sale price $72.00 Regular price $0.00Unit price per- IP rating 54 – “Splashproof”
- Rugged cast aluminum box with white enamel finish
- Metal box reduces electrical interference
- Easy wiring access through multiple grommeted cable entries
-
Newmar Power
Newmar PT-40U Battery Charger [PT-40U]
Free Shipping on $199+Regular price $1,727.00Sale price $1,727.00 Regular price $0.00Unit price perLow Stock — Only 10 Left
More info
- 12-volt model
- “Smart” circuitry provides three-stage charging – bulk, absorption, and float
- Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages
- Multiple isolated output banks; ammeter indicates total output current. (Except PT-7)
- The optional sensor adjusts the output voltage based on battery temperature. (Except PT-7)
- Current limitations prevent damage from overloading
- Clean well-regulated output can be used as a power supply; can power loads directly without a battery in line
- Built to last – rugged stainless steel case with a durable white powder coat finish, an optional drip shield, and marinized internal circuitry
- Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield
- ABS-type approval for battery charging and power supplies
- Input VAC (50-60 Hz.): 90-264
- Input Amps @ Full Load: @ 115 VAC: 6.8, @ 230 VAC: 3.4
- Power Factor: .98 @ 115V and .95 @ 230V
- Max Output Amps: 40
- Output Banks: 3
- Battery Capacity (Amp-Hours): 80-400
- Operating Temp. Rating Reference: T-5
- Case Size Reference: A-3
- Case Size (H x W x D): 13.85B x 9.5 x 4.8B inches (35.2B x 24.1 x 12.2B centimeters) *Note with Dripshield installed B add .75” (1.9 cm) to height and 1.35” (3.4 cm) to depth
- Weight Lbs./Kg: 11/6
- Optional Temp. Sensor Model: TCS-12/24
- Remote Panel Model: EVM-12-2
- Equalize Option: No
- Output Indicator Reference: M-3
- Compliance Reference: CG
- Temperature: -20 degrees C to +70 degrees C
- Derate Linearly From 100% @ 50 degrees C to 50% @ 70 degrees C
- Gel-Cell: 14.0 VDC Charge @ 50% load and 13.6 VDC Float @ .5 amp load
- Flooded/AGM: 14.2 VDC Charge @ 50% load and 13.4 VDC Float @ .5 amp load
- CG: USCG CFR 183.410 (Ignition protected)
- CE: Carries the CE mark
- ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13.
- Remote Panel, model EVM-12-2, for us with model PT-40 only (Enables monitoring of when the battery charger is “on” and the batteries’ state of readiness, at a glance of two (2) battery banks only)
- Temperature Compensation Sensor, Model TCS 12/24, for use with all models except PT 7 (-5 mV per cell degrees C, 25′ cable (40’cable optional)
- Charger Input - Voltage: 115/230v
- Charger Output - Amps: 40a
- Charger Output Voltage: 12v
- Charging Banks: 3
- Portable: No
- Inverter Input Voltage: 115/230v
- Inverter Output Voltage: 12v
- Outlet Qty: Hardwire
- Box Dimensions: 11"H x 15"W x 20"L WT: 14.7 lbs
Newmar PowerNewmar PT-40U Battery Charger [PT-40U]
Code: ORA-102335Brand: Newmar PowerLow Stock — Only 10 LeftRegular price $1,727.00Sale price $1,727.00 Regular price $0.00Unit price per- 12-volt model
- “Smart” circuitry provides three-stage charging – bulk, absorption, and float
- Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages
- Multiple isolated output banks; ammeter indicates total output current. (Except PT-7)
