Newmar BX-2 Junction Box [BX-2]
Regular price
$78.97
Sale price
$78.97
Regular price
$0.00
Unit price
/
per
Sale
Sold out
Shipping calculated at checkout.
Only 6 units left
Secure checkout with
Payment methods
Couldn't load pickup availability
- SAME DAY SHIPPING BY 4PM EST
- 3 YEAR PRODUCT WARRANTY
- 30 DAY EASY RETURN POLICY

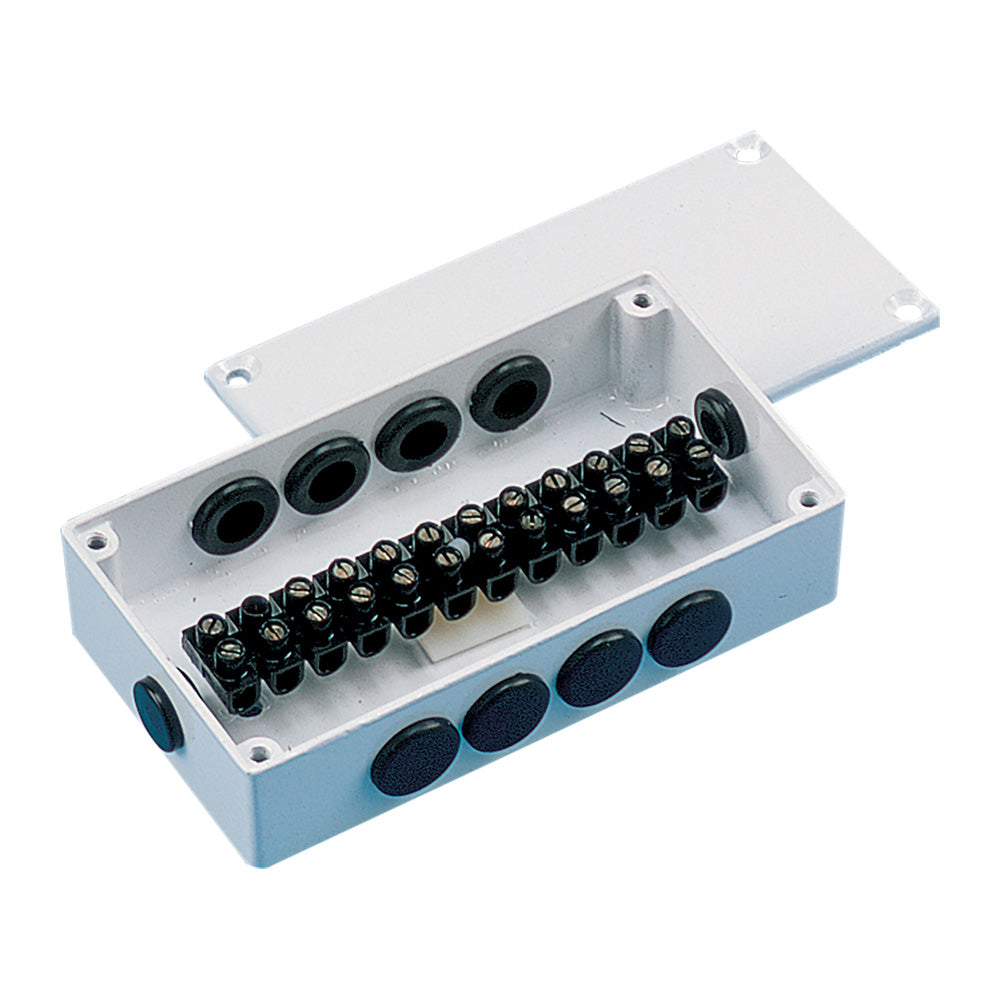

BX-2 Junction Box
This BX Series splashproof box provides secure, protected wiring connections in wheelhouses or below decks and engine rooms.
Features:
- IP rating 54 – “Splashproof”
- Rugged cast aluminum box with white enamel finish
- Metal box reduces electrical interference
- Easy wiring access through multiple grommeted cable entries
- Supplied with high-quality connector strips – secure wires with compression fittings – no terminals required – see matrix below for connector strips specifications per box
Specifications:
- Number of Connector Strips: 1
- Positions per Strip: 12
- Max Wire Gauge: 16
- Max Amps (per position): 6
- Cable Entries: 8
- Cable Diameter: 0.37 in.
- Box Size: 4.4 x 2.4 x 1.2 in.
- Box Size: 11.2 x 6.1 x 3.1 cm
Specifications:
- Type: Junction Box
- Box Dimensions: 2"H x 4"W x 8"L WT: 0.45 lbs
-
Vendor:
Newmar Power
-
Type:
Wire Management
- Tags: 1st class eligible, Brand_newmar power, Clearance, Electrical, Electrical | wire management, Specials
