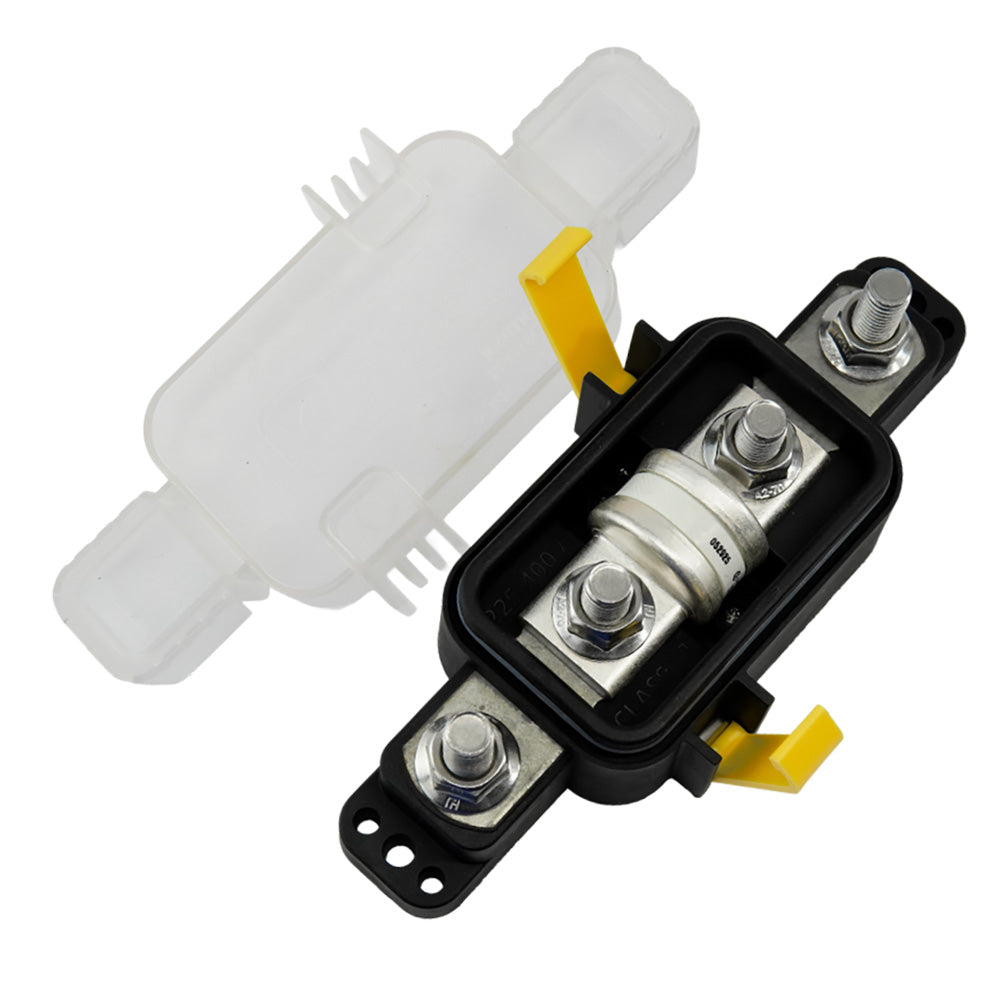

Egis Class T Fuse Block 225-400 A - Sealed [3912]
Regular price
$54.40
Sale price
$54.40
Regular price
$0.00
Unit price
/
per
Sale
Sold out
Shipping calculated at checkout.
Only 3 units left
Secure checkout with
Payment methods
Couldn't load pickup availability
Free Shipping $114+
30-Day Returns
In Stock
-
Vendor:
Egis Mobile Electric
-
Type:
Fuse Blocks & Fuses
Description
Class T Fuse Block 225-400 A - Sealed
Applications/Problems This Solves:
- Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, which would otherwise land on the fuse tab itself.
- Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats.
Features:
- Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop.
- Stainless Steel Self-Locking Hardware ensures robust connections & long-term connection reliability.
- Bulletproof construction from glass-filled nylon delivers the highest longevity in demanding environments.
- 4 Year Warranty
Specifications:
- Maximum Amperage: 225-400A
- Max Voltage: 80 VDC
- Ingress Protection Ratings: IP66, IP67, IP6K9K
- Mounting Holes: 4x #10 (M5) & 2x 1/4" (M6)
- Mounting Screw Max Torque: 50 in-lbs (5.5 N-m)
- Busbar Material: Tin-Plated Copper
